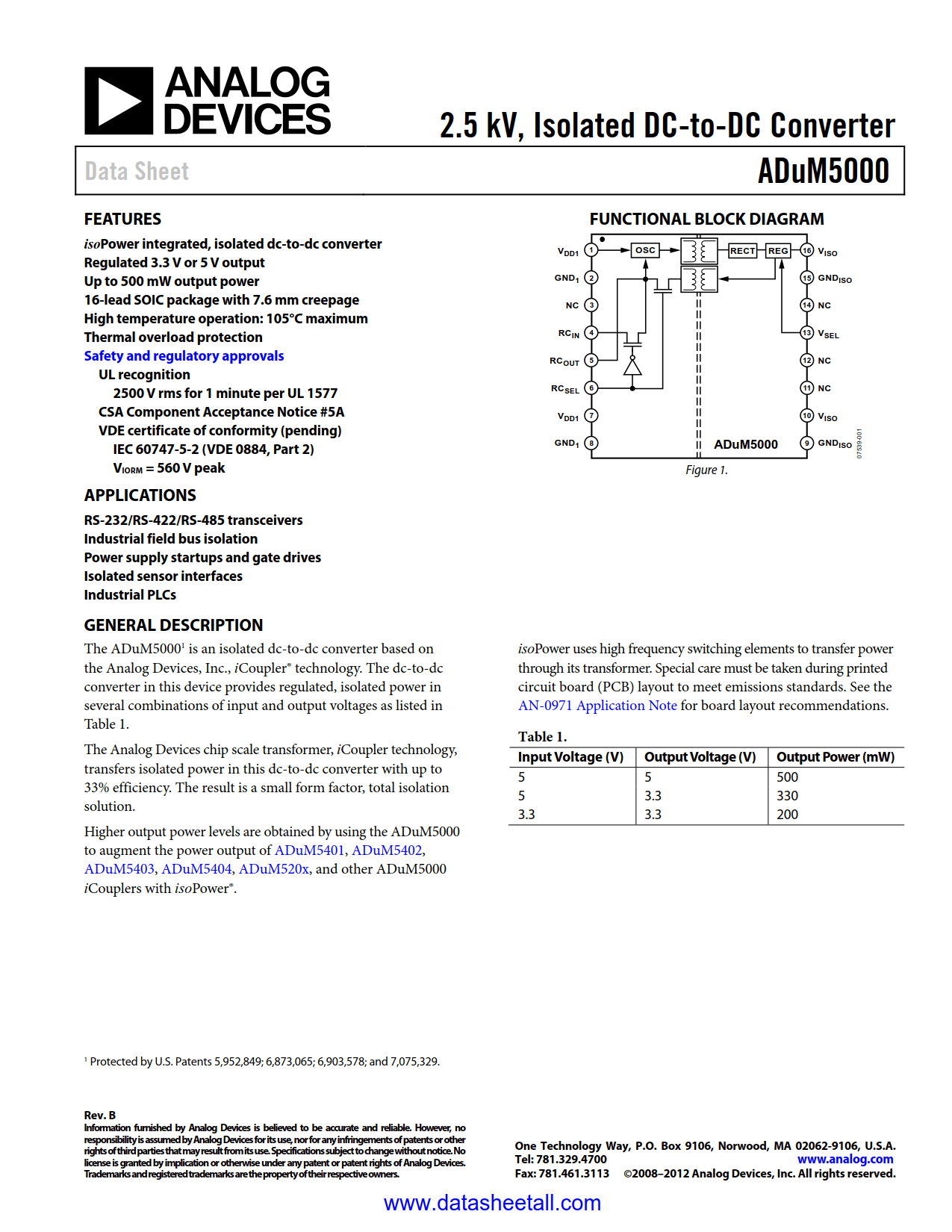

ADUM5000 Datasheet

• isoPower^® integrated isolated DC/DC converter
• Regulated 3.3 V or 5 V output
• Up to 500 mW output power
• 16-lead SOIC package with 7.6 mm creepage
• High temperature operation: 105°C maximum
• Thermal Overload Protection
• Safety and regulatory approvals
  • UL recognition
    • 2500 V rms for 1 minute per UL 1577
• CSA Component Accept Notice #5A
• VDE cert of conformity (pending)
  • IEC 60747-5-2 (VDE 0884, Part 2)
  • V_IORM = 560 V peak

• RS-232/RS-422/RS-485 transceivers
• Industrial field bus isolation
• Power supply start ups and gate drives
• Isolated sensor interface
• Industrial PLCs

The ADuM5000 is an isolated DC/DC converter based on the Analog Devices, Inc., iCoupler^® technology. The dc-to-dc converter in this device provides regulated, isolated power in several combinations of input and output voltage as listed in Table 1.

The Analog Devices chip-scale transformer iCoupler technology transfers isolated power in this dc-to-dc converter with up to 33% efficiency. The result is a small form factor, total isolation solution.

Higher output power levels are obtained by using the ADuM5000 to augment the power output of ADuM5401, ADuM5402, ADuM5403, ADuM5404, ADuM5200, and other ADuM5000 iCouplers with isoPower^®.

isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. See the AN-0971 application note for board layout recommendations.
