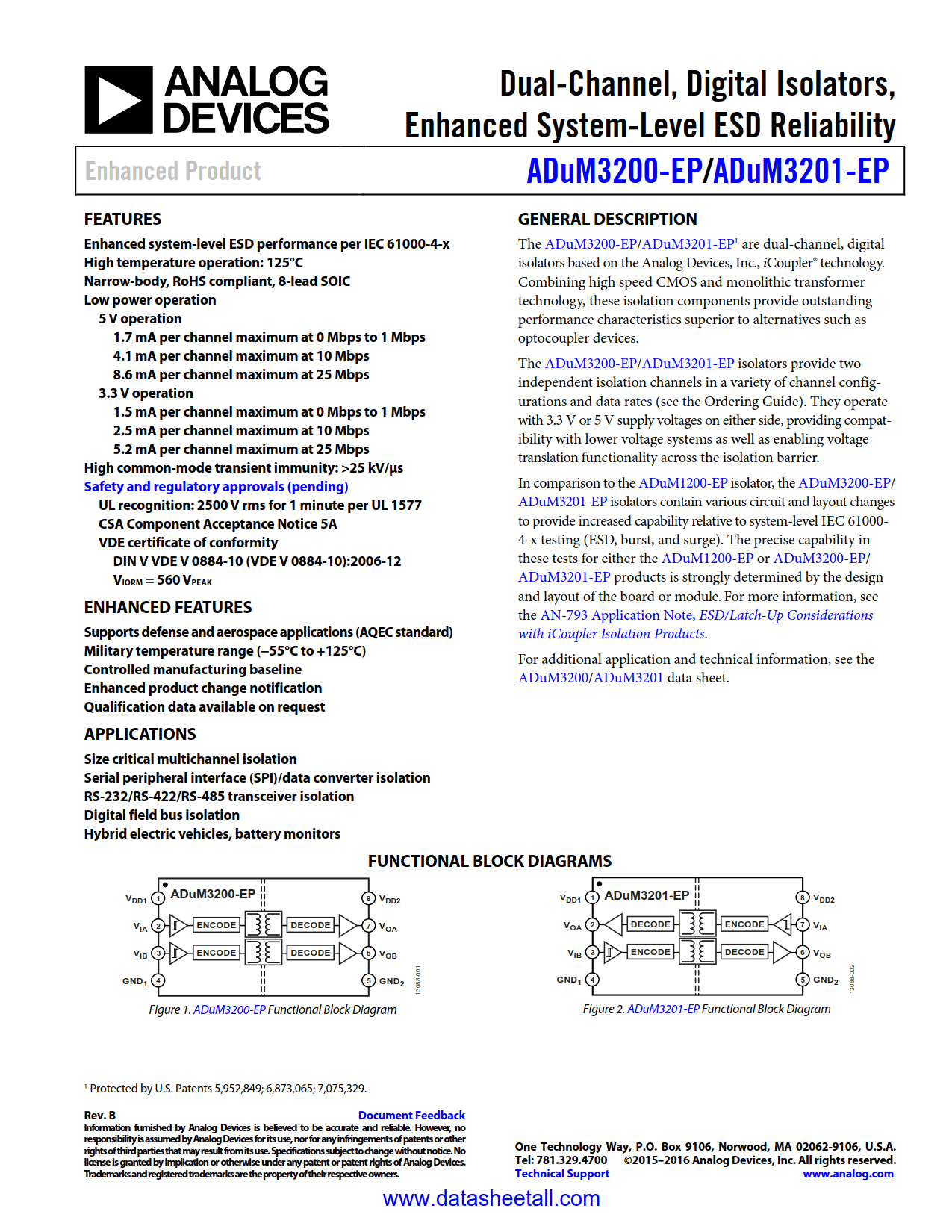

ADuM3201-EP Datasheet

• Enhanced system-level ESD performance per IEC 61000-4-x
• High temperature operation: 125°C
• Narrow-body, RoHS compliant, 8-lead SOIC
• Low power operation
  • 5 V operation
    • 1.7 mA per channel maximum at 0 Mbps to 1 Mbps
    • 4.1 mA per channel maximum at 10 Mbps
    • 8.6 mA per channel maximum at 25 Mbps
  • 3.3 V operation
    • 1.5 mA per channel maximum at 0 Mbps to 1 Mbps
    • 2.5 mA per channel maximum at 10 Mbps
    • 5.2 mA per channel maximum at 25 Mbps
• High common-mode transient immunity: >25 kV/µs
• Safety and regulatory approvals (pending)
  • UL recognition: 2500 V rms for 1 minute per UL 1577
  • CSA Component Acceptance Notice 5A
  • VDE certificate of conformity
    • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
    • V_IORM = 560 V_PEAK

• Supports defense and aerospace applications (AQEC standard)
• Military temperature range (−55°C to +125°C)
• Controlled manufacturing baseline
• Enhanced product change notification
• Qualification data available on request

• Size critical multichannel isolation
• Serial peripheral interface (SPI)/data converter isolation
• RS-232/RS-422/RS-485 transceiver isolation
• Digital field bus isolation
• Hybrid electric vehicles, battery monitors

The ADuM3201-EP are dual-channel, digital isolators based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.

The ADuM3201-EP isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). They operate with 3.3 V or 5 V supply voltages on either side, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.

In comparison to the ADuM1200-EP isolator, the ADuM3201-EP isolators contain various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-x testing (ESD, burst, and surge). The precise capability in these tests for either the ADuM3201-EP products is strongly determined by the design and layout of the board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerationswith iCoupler Isolation Products.

For additional application and technical information, see the ADuM3201 data sheet.
