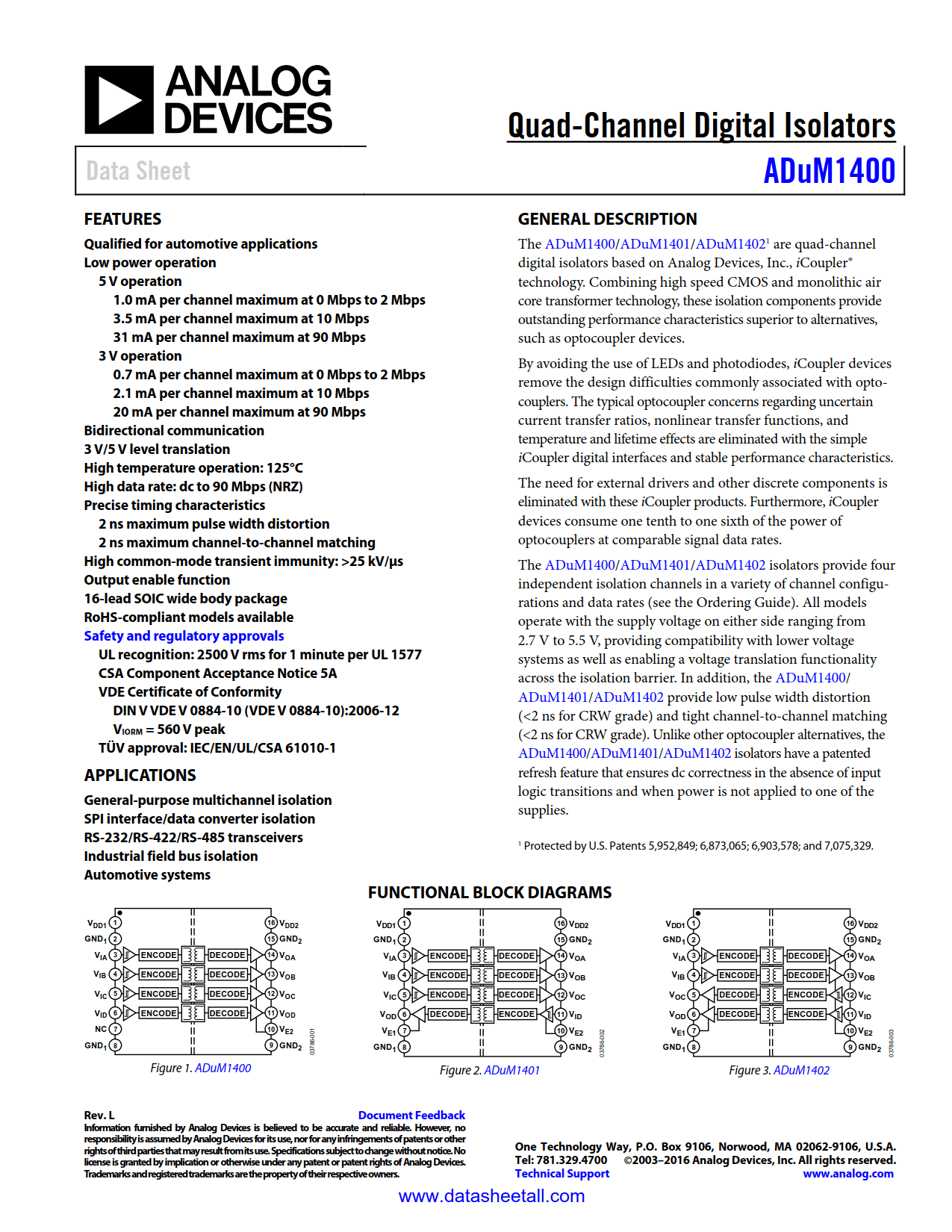

ADuM1400 Datasheet

• Qualified for automotive applications
• Low power operation

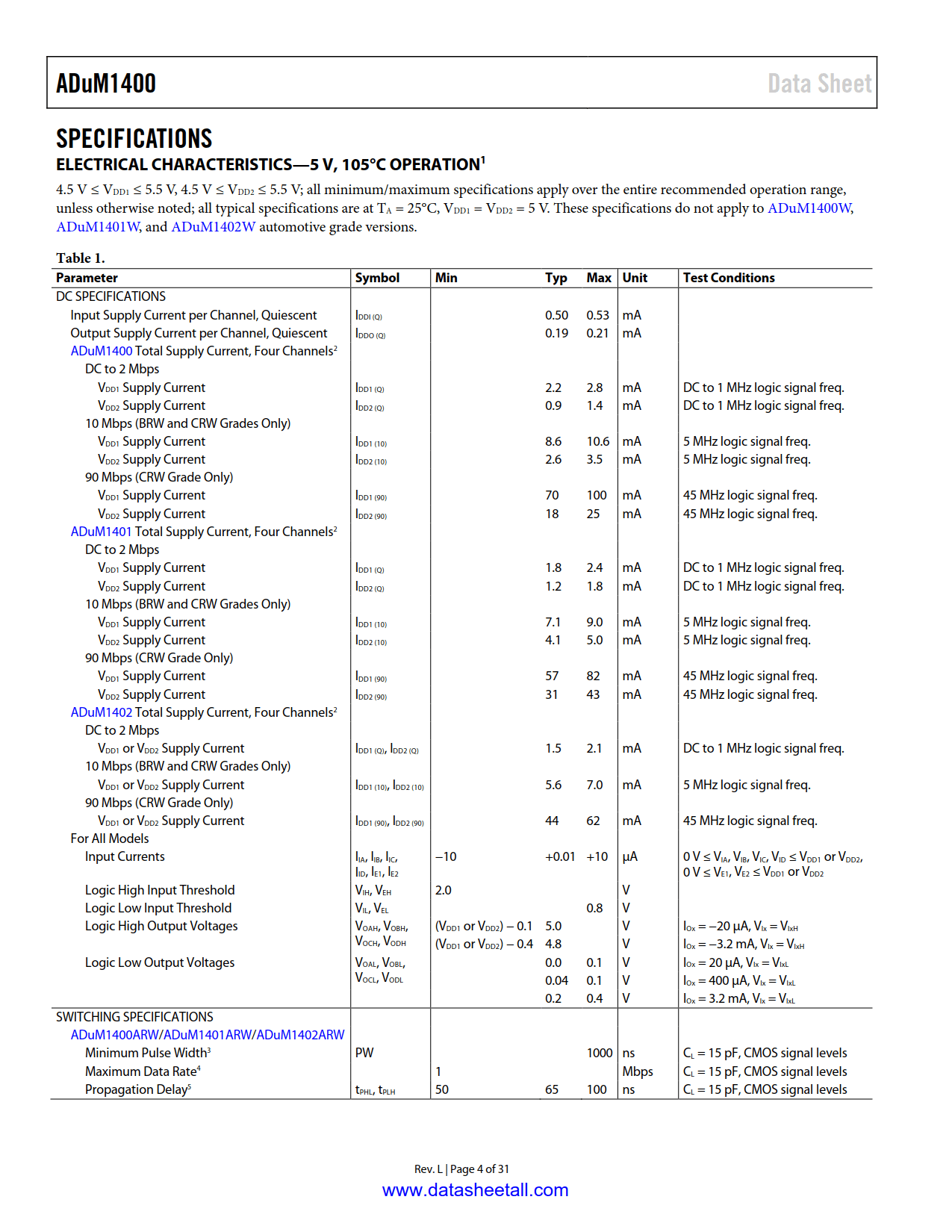

  5 V operation
  1.0 mA per channel maximum at 0 Mbps to 2 Mbps
  3.5 mA per channel maximum at 10 Mbps
  31 mA per channel maximum at 90 Mbps
• Bidirectional communication
• 3 V/5 V level translation
• High temperature operation: 125°C
• High data rate: dc to 90 Mbps (NRZ)
• High common-mode transient immunity: >25 kV/μs
• Output enable function
• See datasheet for additional features

• General-purpose multichannel isolation
• SPI interface/data converter isolation
• RS-232/RS-422/RS-485 transceivers
• Industrial field bus isolation
• Automotive systems

The ADuM1400 is a quad-channel digital isolator with 4/0 channel directionality, based on Analog Devices, Inc., iCoupler^® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with opto-couplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics.

The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth of the power of optocouplers at comparable signal data rates.

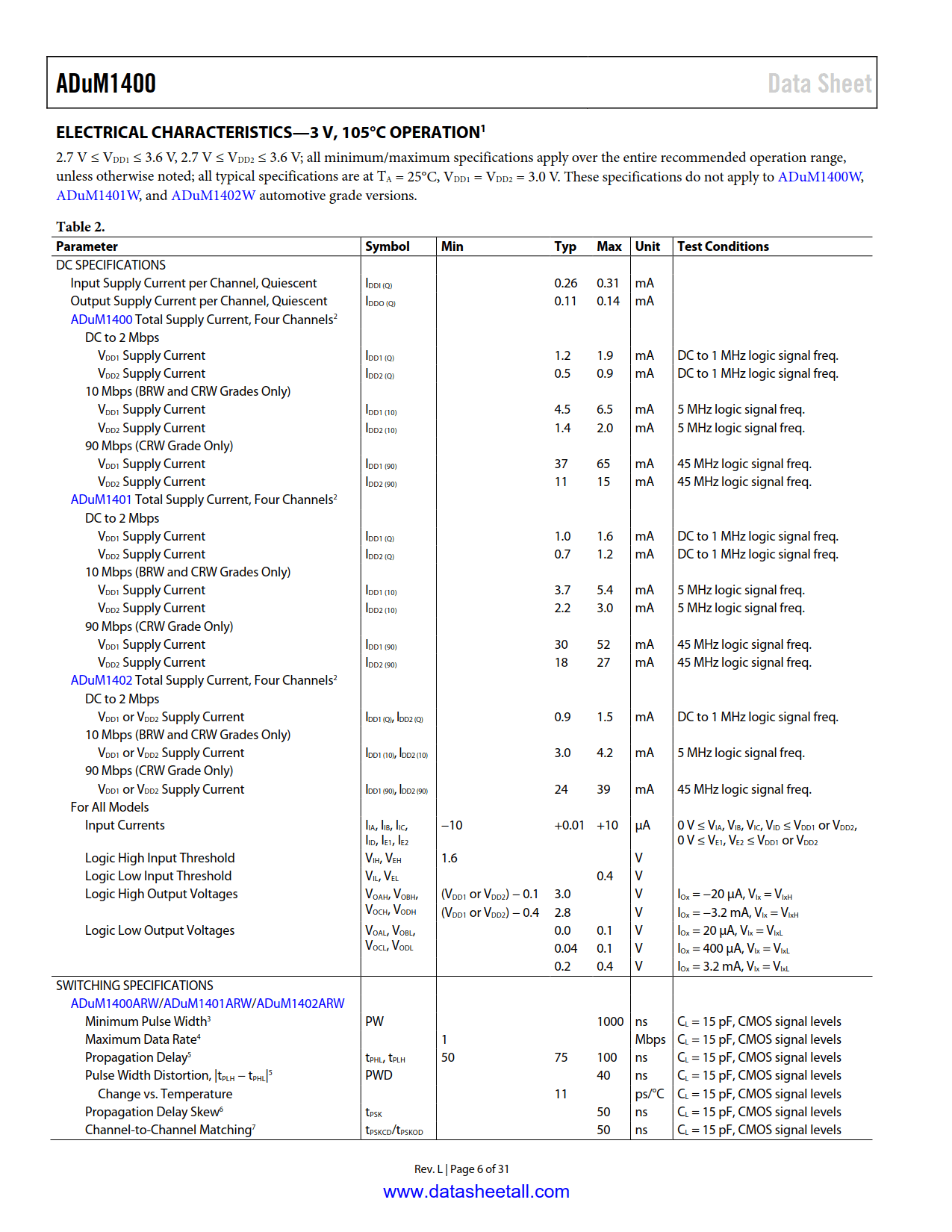

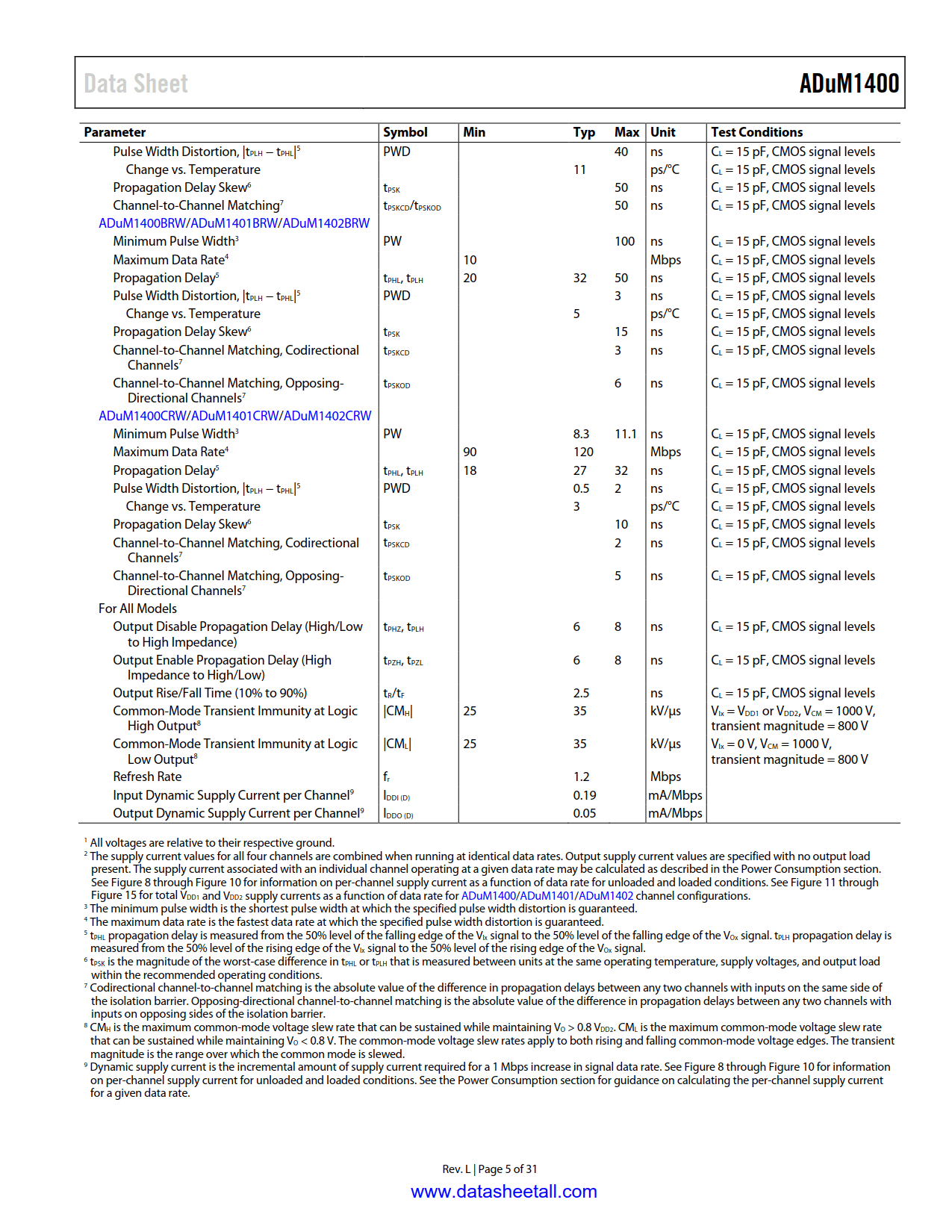

The ADuM1400 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide in the data sheet). All models operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM1400 provide low pulse width distortion (<2 ns for CRW grade) and tight channel-to-channel matching (<2 ns for CRW grade). Unlike other optocoupler alternatives, the ADuM1400 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and when power is not applied to one of the supplies.
