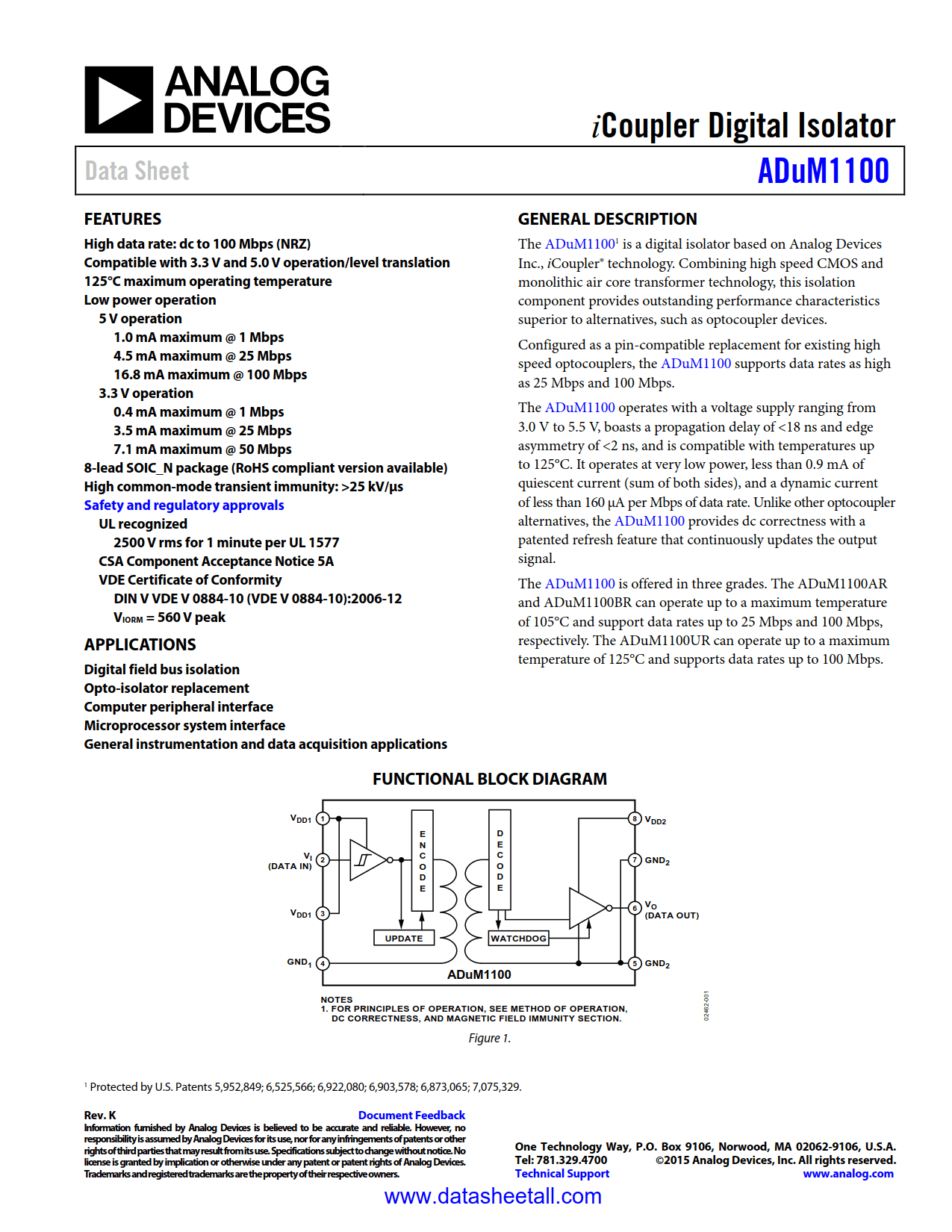

ADuM1100 Datasheet

• High data rate: dc to 100 Mbps (NRZ)
• Compatible with 3.3 V and 5.0 V operation/level translation
• 125°C maximum operating temperature

• 5 V operation
  1.0 mA maximum @ 1 Mbps
  4.5 mA maximum @ 25 Mbps
  16.8 mA maximum @ 100 Mbps
• 3.3 V operation
  0.4 mA maximum @ 1 Mbps
  3.5 mA maximum @ 25 Mbps
  7.1 mA maximum @ 50 Mbps
• 8-lead SOIC_N package (RoHS compliant version available)
• High common-mode transient immunity: >25 kV/μs

• UL recognized
• 2500 V rms for 1 minute per UL 1577
• CSA Component Acceptance Notice 5A
• VDE Certificate of Conformity
  DIN V VDE V 0884-10
  (VDE V 0884-10):2006-12
  V_IORM = 560 V peak

• Digital field bus isolation
• Opto-isolator replacement
• Computer-peripheral interface
• Microprocessor system interface
• General instrumentation and data acquisition applications

The ADuM1100 is a digital isolator based on Analog Devices Inc., iCoupler^® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives, such as optocoupler devices.

Configured as a pin-compatible replacement for existing high speed optocouplers, the ADuM1100 supports data rates as high as 25 Mbps and 100 Mbps.

The ADuM1100 operates with a voltage supply ranging from 3.0 V to 5.5 V, boasts a propagation delay of <18 ns and edge asymmetry of <2 ns, and is compatible with temperatures up to 125°C. It operates at very low power, less than 0.9 mA of quiescent current (sum of both sides), and a dynamic current of less than 160 μA per Mbps of data rate. Unlike other optocoupler alternatives, the ADuM1100 provides dc correctness with a patented refresh feature that continuously updates the output signal.

The ADuM1100 is offered in three grades. The ADuM1100AR and ADuM1100BR can operate up to a maximum temperature of 105°C and support data rates up to 25 Mbps and 100 Mbps, respectively. The ADuM1100UR can operate up to a maximum temperature of 125°C and supports data rates up to 100 Mbps.
