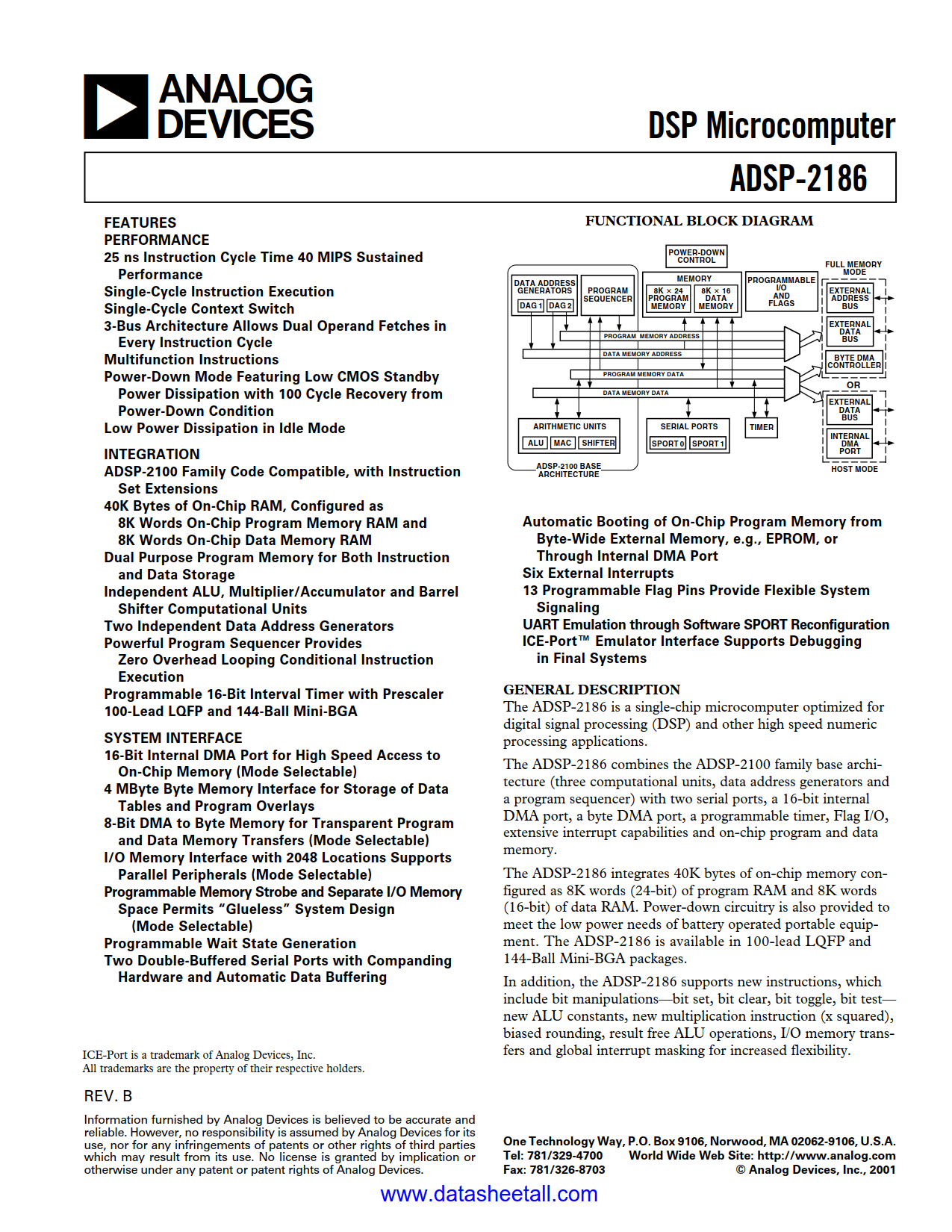

ADSP-2186 Datasheet

• 25 ns Instruction Cycle Time 40 MIPS Sustained Performance
• Single-Cycle Instruction Execution
• ADSP-2100 Family Code Compatible, with Instruction Set Extensions
• 40K Bytes of On-Chip RAM, Configured as 8K Words On-Chip Program Memory RAM and 8K Words On-Chip Data Memory RAM
• Dual Purpose Program Memory for Both Instruction and Data Storage
• 16-Bit Internal DMA Port for High Speed Access to On-Chip Memory (Mode Selectable)
• 4 MByte Byte Memory Interface for Storage of Data Tables and Program Overlays
• 8-Bit DMA to Byte Memory for Transparent Program and Data Memory Transfers (Mode Selectable)

The ADSP-2186 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications.

The ADSP-2186 combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities and on-chip program and data memory.

The ADSP-2186 integrates 40K bytes of on-chip memory configured as 8K words (24-bit) of program RAM and 8K words (16-bit) of data RAM. Power-down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2186 is available in 100-pin LQFP package.
