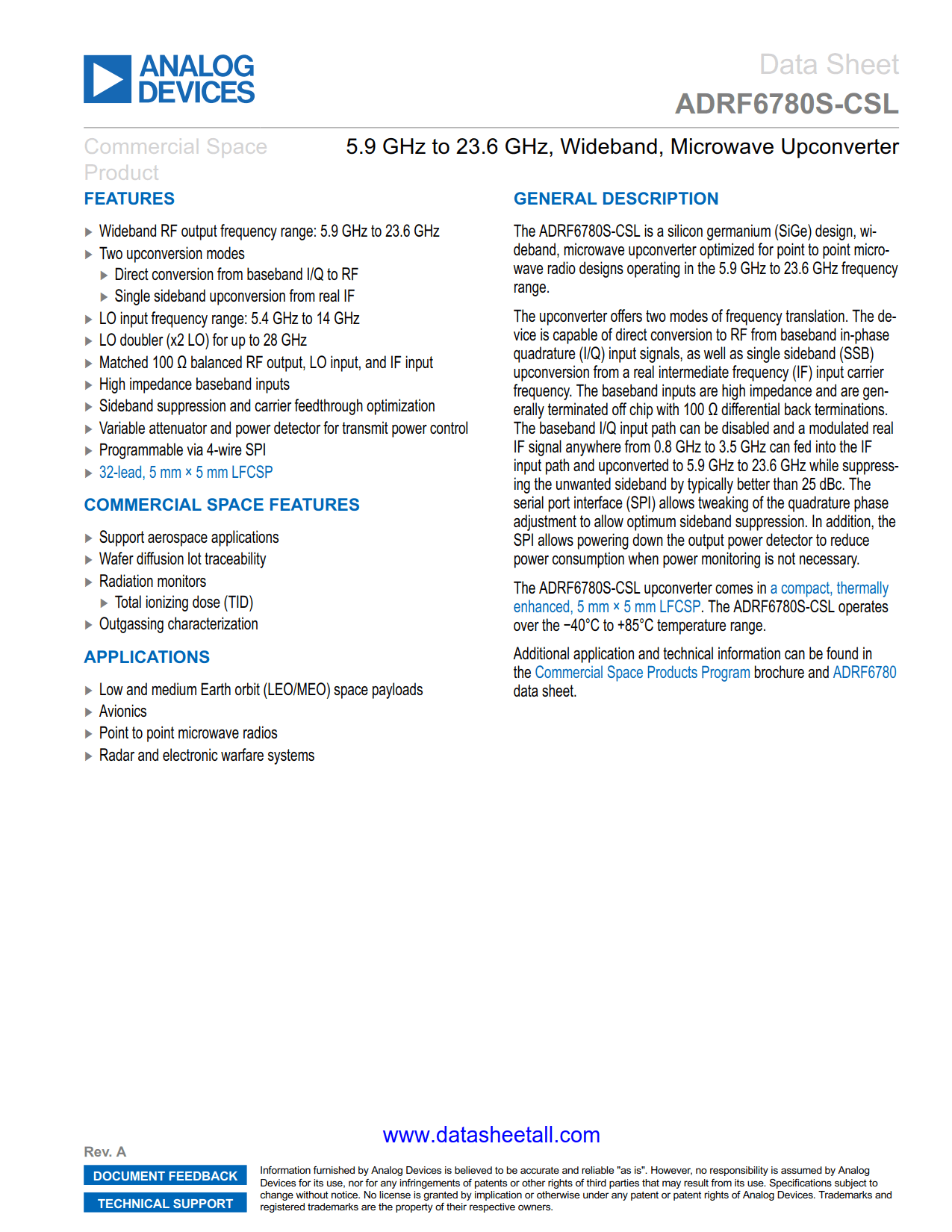

ADRF6780S Datasheet

• Wideband RF output frequency range: 5.9GHz to 23.6GHz
• Two upconversion modes
  • Direct conversion from baseband I/Q to RF
  • Single sideband upconversion from real IF
• LO input frequency range: 5.4 GHz to 14 GHz
• LO doubler (×2 LO) for up to 28GHz
• Matched 100Ω balanced RF output, LO input, and IF input
• High impedance baseband inputs
• Sideband suppression and carrier feedthrough optimization
• Variable attenuator and power detector for transmit power control
• Programmable via 4-wire SPI
• 32-lead, 5mm × 5mm LFCSP

COMMERCIAL SPACE FEATURES

• Support aerospace applications
• Certificate of Conformance
• Wafer diffusion lot traceability
• Qualification based on flows per NASA PEM-INST-001 and SAE AS6294
• Burn-in, life test, and deltas analysis
• Radiation lot acceptance test (RLAT)
  • Total ionizing dose (TID)
• Outgassing characterization

• Low and medium Earth orbit (LEO/MEO) satellites
• Geosynchronous Earth orbit (GEO) satellites
• Avionics
• Point to point microwave radios
• Radar, electronic warfare systems

The ADRF6780S is a silicon germanium (SiGe) design, wideband, microwave upconverter optimized for point to point microwave radio designs operating in the 5.9GHz to 23.6GHz frequency range.

The upconverter offers two modes of frequency translation. The device is capable of direct conversion to RF from baseband I/Q input signals, as well as single sideband (SSB) upconversion from a real intermediate frequency (IF) input carrier frequency. The baseband inputs are high impedance and are generally terminated off chip with 100Ω differential back terminations. The baseband I/Q input path can be disabled and a modulated real IF signal anywhere from 0.8GHz to 3.5GHz can fed into the IF input path and upconverted to 5.9GHz to 23.6GHz while suppressing the unwanted sideband by typically better than 25dBc. The serial port interface (SPI) allows tweaking of the quadrature phase adjustment to allow optimum sideband suppression. In addition, the SPI allows powering down the output power detector to reduce power consumption when power monitoring is not necessary.

The ADRF6780S upconverter comes in a compact, thermally enhanced, 5mm × 5mm LFCSP. The ADRF6780S operates over the −40°C to +85°C temperature range.

Additional application and technical information can be found in the Commercial Space Products Program brochure and ADRF6780 data sheet.
