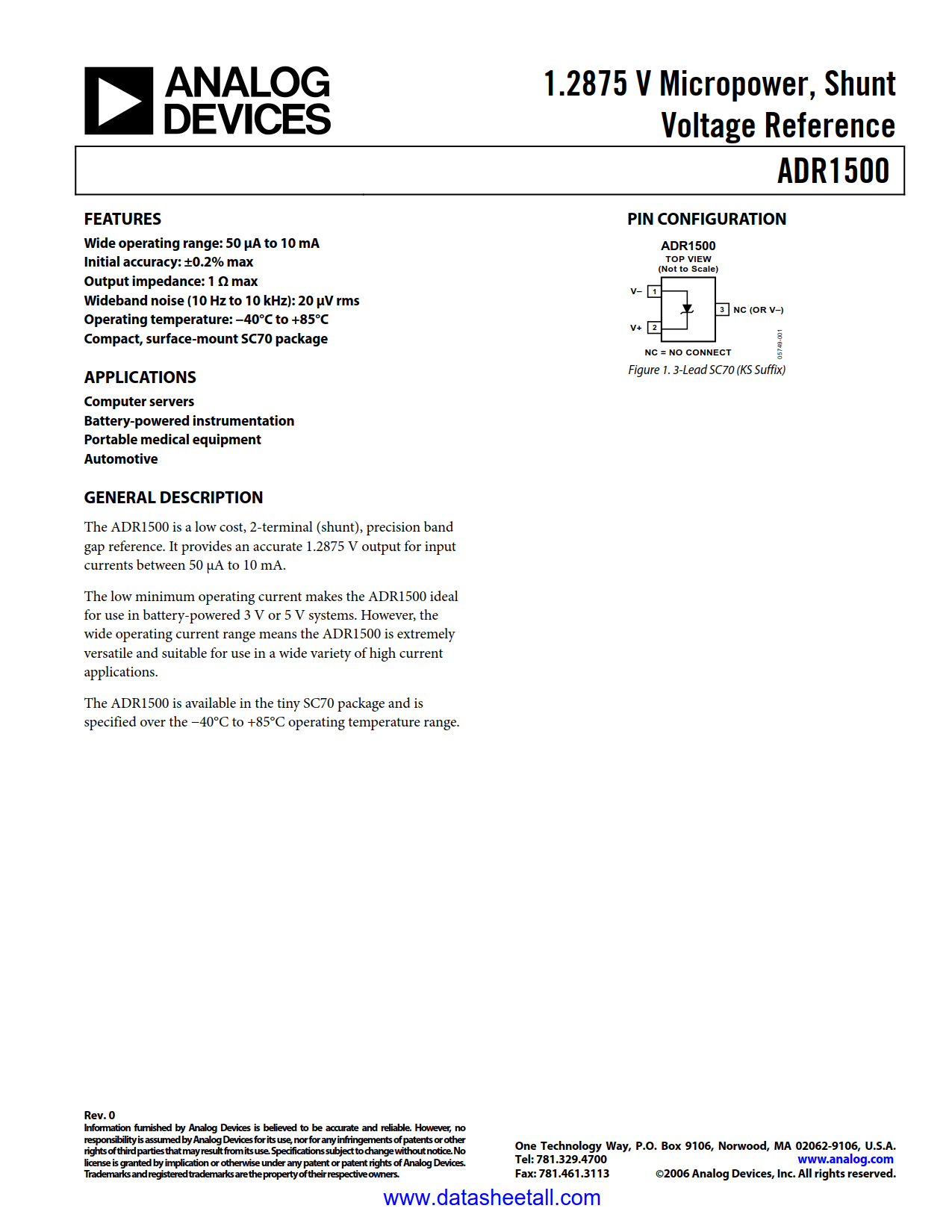

ADR1500 Datasheet
1.2875 V Micropower, Shunt Voltage Reference
1.2875 V Micropower, Shunt Voltage Reference
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| ADR1500BKSZ-REEL | 0 | $1.431 | Reel | 10000 | R2F | 1 | 3 | -40°C ~ 85°C | 3-Lead SC70 |
| ADR1500BKSZ-REEL7 | 0 | $1.431 | Reel | 3000 | R2F | 1 | 3 | -40°C ~ 85°C | 3-Lead SC70 |
The ADR1500 is a low cost, 2-terminal (shunt), precision band gap reference. It provides an accurate 1.2875 V output for input currents between 50 μA to 10 mA.
The low minimum operating current makes the ADR1500 ideal for use in battery-powered 3 V or 5 V systems. However, the wide operating current range means the ADR1500 is extremely versatile and suitable for use in a wide variety of high current applications.
The ADR1500 is available in the tiny SC70 package and is specified over the −40°C to +85°C operating temperature range.
