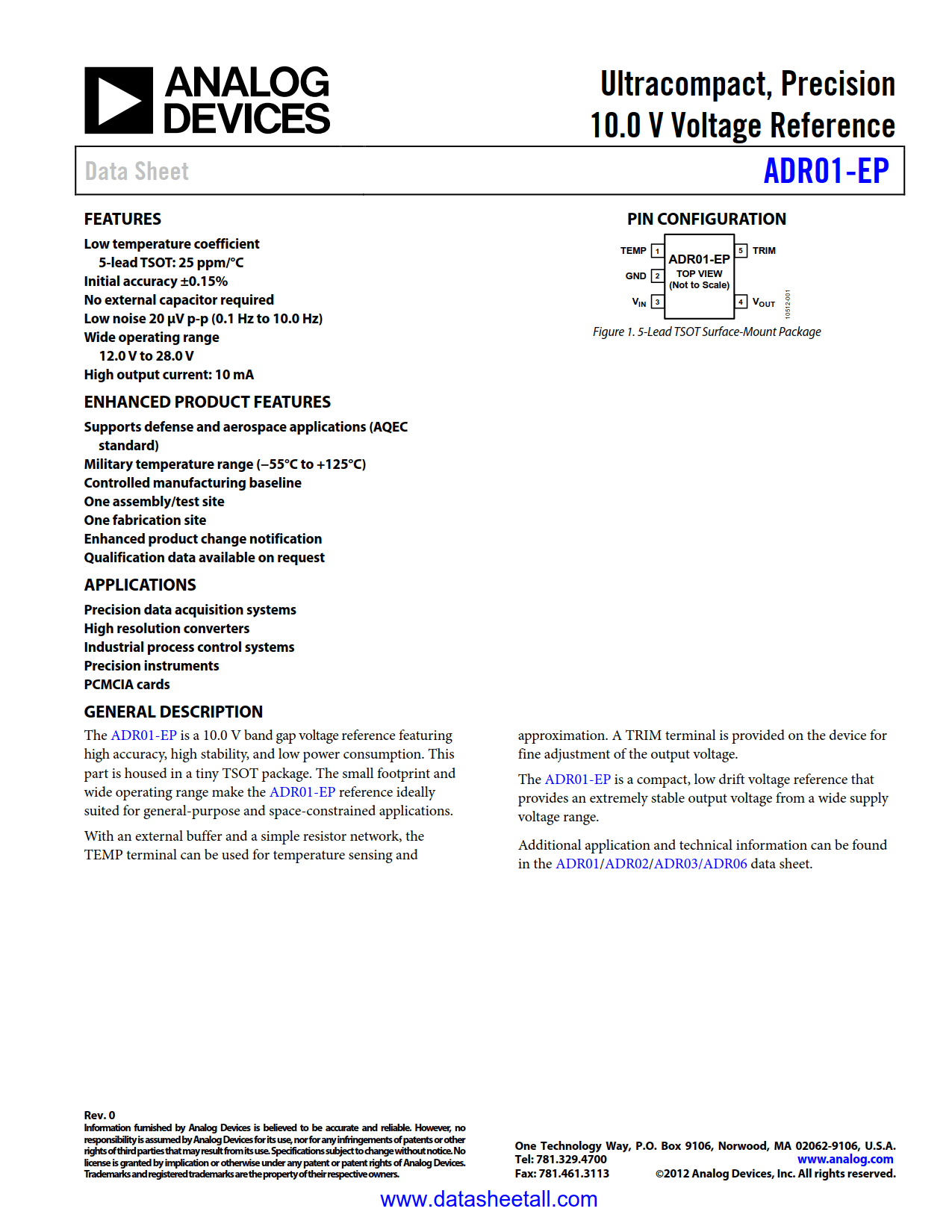

ADR01-EP Datasheet

• Low temperature coefficient
  • 5-lead TSOT: 25 ppm/°C
• Initial accuracy ±0.15%
• No external capacitor required
• Low noise 20 μV p-p (0.1 Hz to 10.0 Hz)
• Wide operating range
  • 12.0 V to 28.0 V
• High output current: 10 mA

ENHANCED PRODUCT FEATURES

• Supports defense and aerospace applications (AQEC standard)
• Military temperate range (−55°C to +125°C)
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• Precision data acquisition systems
• High resolution converters
• Industrial process control systems
• Precision instruments
• PCMCIA cards

The ADR01-EP is a 10.0 V band gap voltage reference featuring high accuracy, high stability, and low power consumption. This part is housed in a tiny TSOT package. The small footprint and wide operating range make the ADR01-EP reference ideally suited for general-purpose and space-constrained applications.

With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is provided on the device for fine adjustment of the output voltage.

The ADR01-EP is a compact, low drift voltage reference that provides an extremely stable output voltage from a wide supply voltage range.

Additional application and technical information can be found in the ADR01 data sheet.
