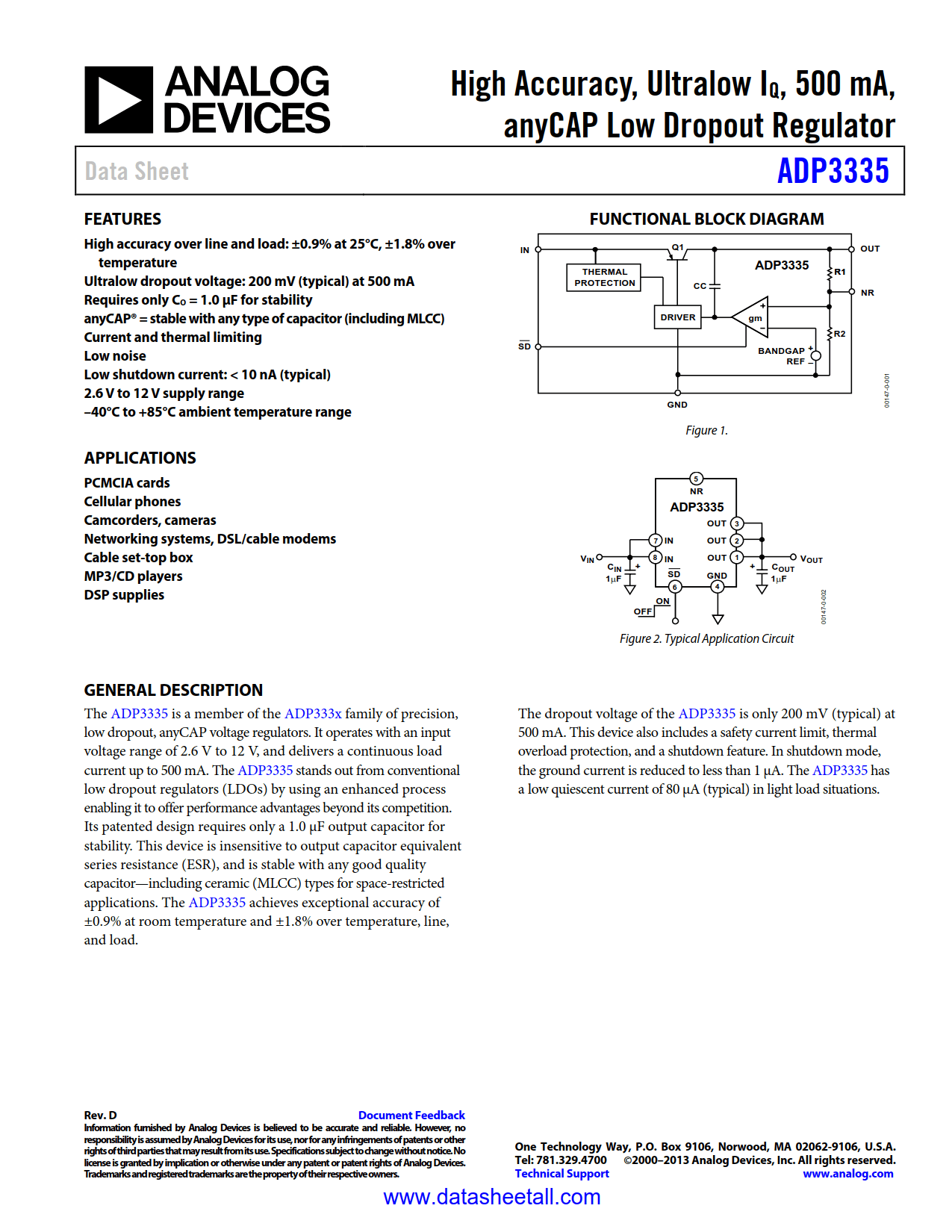

High accuracy over line and load: ±0.9% @ 25°C, ±1.8% over temperature
Ultralow dropout voltage: 200 mV (typ) @ 500 mA
Requires only CO = 1.0 µF for stability
anyCAP® = stable with any type of capacitor (Including MLCC)
Current and thermal limiting
Low noise
Low shutdown current: < 10 nA (typ)
2.6 V to 12 V supply range
–40°C to +85°C ambient temperature range
ADP3335 Applications
PCMCIA cards
Cellular phones
Camcorders, cameras
Networking systems, DSL/cable modems
Cable set-top box
MP3/CD players
DSP supplies
ADP3335 Description
The ADP3335 is a member of the ADP330x family of precision low dropout any CAP voltage regulators. The ADP3335 operates with an input voltage range of +2.6 V to +12 V and delivers a continuous load current up to 500 mA. The ADP3335 stands out from the conventional LDOs with the lowest thermal resistance of any MSOP-8 package and an enhanced process that enables it to offer performance advantages beyond its competition. Its patented design requires only a 1.0 µF output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3335 achieves exceptional accuracy of ±0.9% at room temperature and ±1.8% over temperature, line and load variations. The dropout voltage of the ADP3335 is only 200 mV (typical) at 500 mA. This device also includes a safety current limit, thermal overload protection and a shutdown feature. In shutdown mode, the ground current is reduced to less than 2 µA. The ADP3335 has ultralow quiescent current 60 µA (typ) in light load situations.
