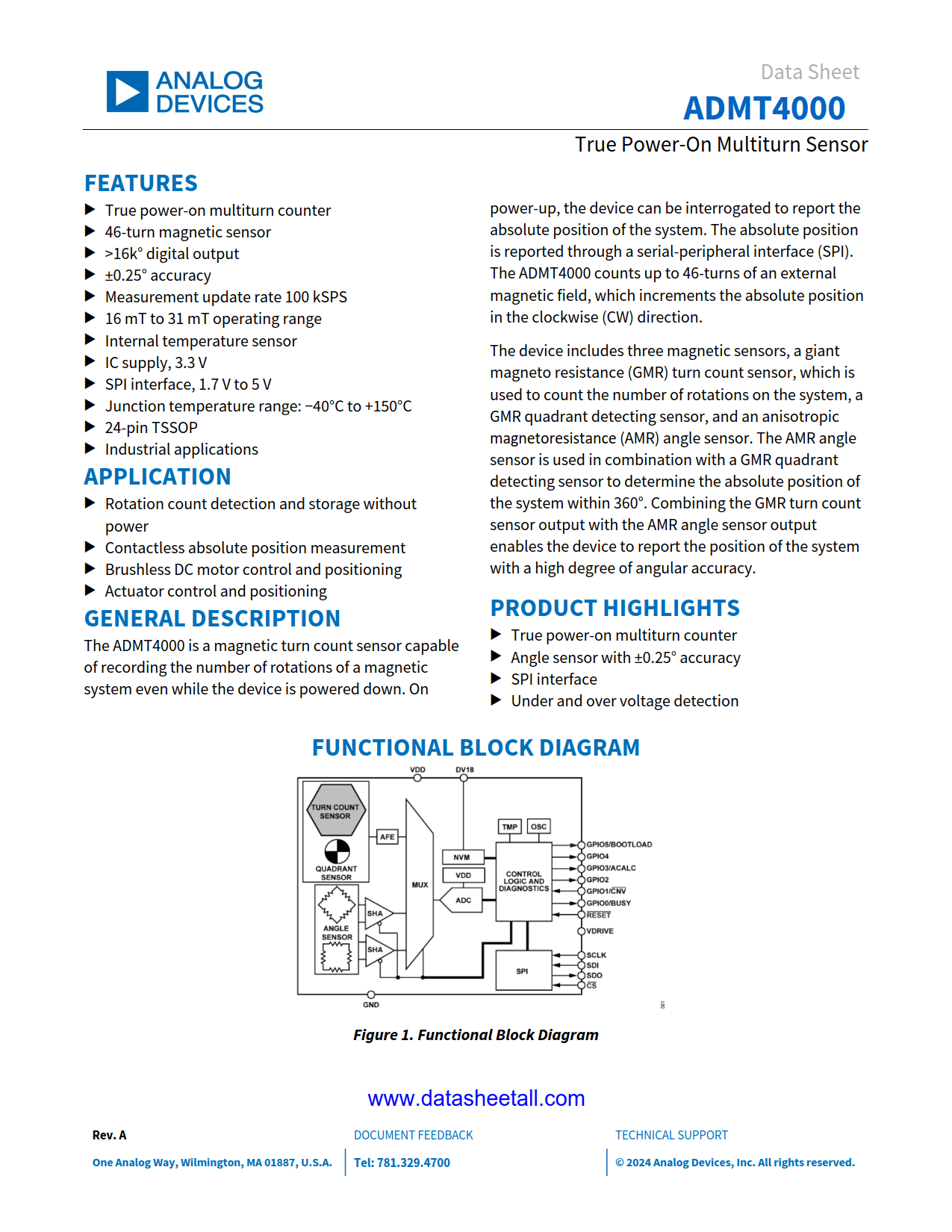

ADMT4000 Datasheet
True Power-On Multiturn Sensor
True Power-On Multiturn Sensor
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| ADMT4000BRUZAB | 0 | $12.843 | Tube | 62 | 1 | 24 | -40°C ~ 125°C | 24-Lead TSSOP | |
| ADMT4000BRUZAB-R7 | 0 | $11.475 | Reel | 1000 | 1 | 24 | -40°C ~ 125°C | 24-Lead TSSOP |
The ADMT4000 is a magnetic turn count sensor capable of recording the number of rotations of a magnetic system even while the device is powered down. On power up the device can be interrogated to report the absolute position of the system. The absolute position is reported through a serial-peripheral interface (SPI). The ADMT4000 counts up to 46 turns of an external magnetic field, incrementing the absolute position in the clockwise (CW) direction.
The device includes three magnetic sensors, a giant magneto resistance (GMR) turn count sensor, which is used to count the number of rotations on the system, a GMR quadrant detecting sensor, and an anisotropic magnetoresistive (AMR) angle sensor. The AMR angle sensor is used in combination with a GMR quadrant detecting sensor to determine the absolute position of the system within 360°. Combining the GMR turn count sensor output with the AMR angle sensor output enables the device to report the position of the system with a high degree of angular accuracy.
