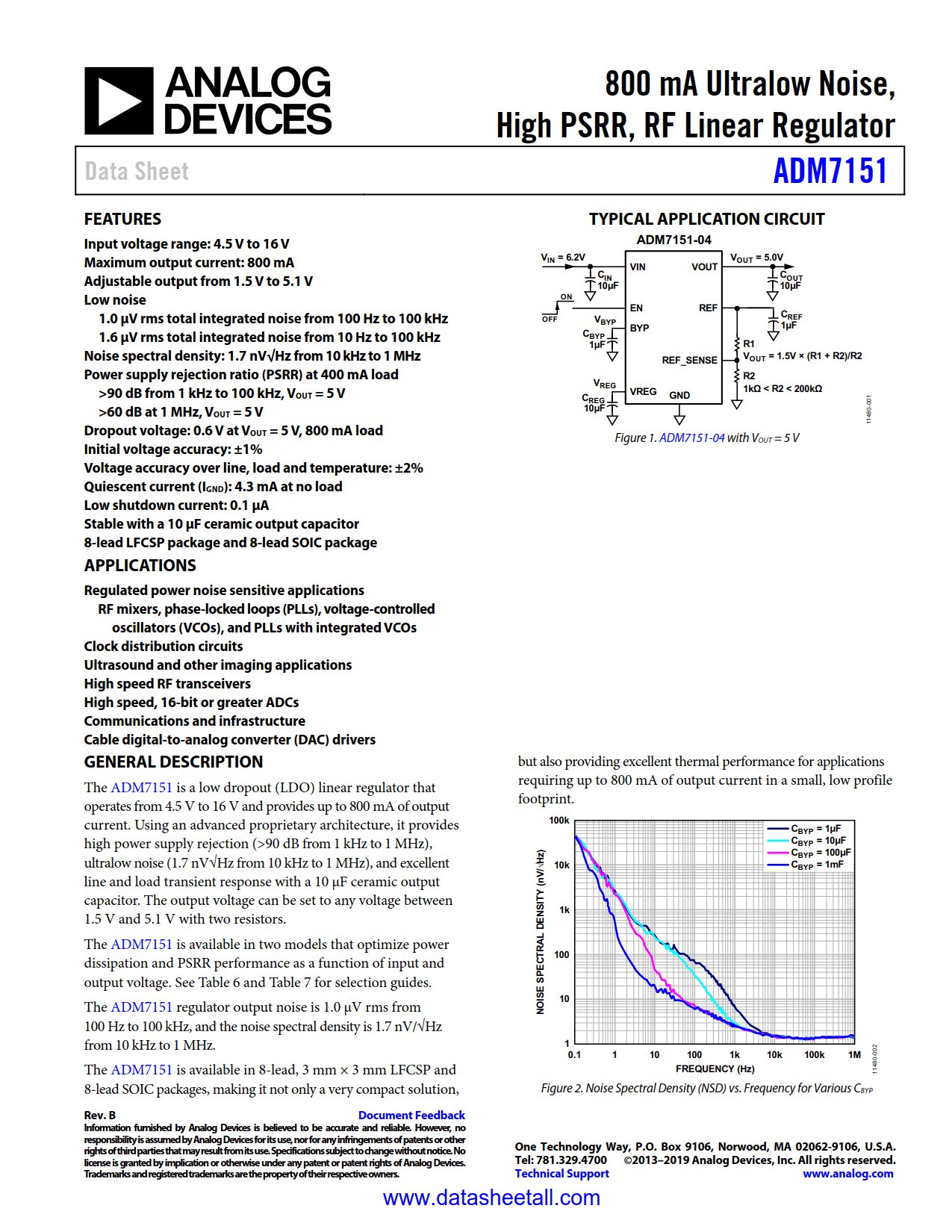

ADM7151 Datasheet

• Input voltage range: 4.5 V to 16 V
• Maximum output current: 800 mA
• Adjustable output from 1.5 V to 5.1 V
• Low noise
  • 1.0 μV rms total integrated noise from 100 Hz to 100 kHz
  • 1.6 μV rms total integrated noise from 10 Hz to 100 kHz
• Noise spectral density: 1.7 nV√Hz from 10 kHz to 1 MHz
• Power supply rejection ratio (PSRR) at 400 mA load
  • >90 dB from 1 kHz to 100 kHz, V_OUT = 5 V
  • >60 dB at 1 MHz, V_OUT = 5 V
• Dropout voltage: 0.6 V at V_OUT = 5 V, 800 mA load
• Initial voltage accuracy: ±1%
• Voltage accuracy over line, load and temperature: ±2%
• Quiescent current (I_GND): 4.3 mA at no load
• Low shutdown current: 0.1 μA
• Stable with a 10 μF ceramic output capacitor
• 8-lead LFCSP package and 8-lead SOIC package

• Regulated power noise sensitive applications
  • RF mixers, phase-locked loops (PLLs), voltage-controlled oscillators (VCOs), and PLLs with integrated VCOs
• Clock distribution circuits
• Ultrasound and other imaging applications
• High speed RF transceivers
• High speed, 16-bit or greater ADCs
• Communications and infrastructure
• Cable digital-to-analog converter (DAC) drivers

The ADM7151 is a low dropout (LDO) linear regulator that operates from 4.5 V to 16 V and provides up to 800 mA of output current. Using an advanced proprietary architecture, it provides high power supply rejection (>90 dB from 1 kHz to 1 MHz), ultralow noise (1.7 nV√Hz from 10 kHz to 1 MHz), and excellent line and load transient response with a 10 μF ceramic output capacitor. The output voltage can be set to any voltage between 1.5 V and 5.1 V with two resistors.

The ADM7151 is available in two models that optimize power dissipation and PSRR performance as a function of input and output voltage. See Table 6 and Table 7 for selection guides.

The ADM7151 regulator output noise is 1.0 μV rms from 100 Hz to 100 kHz, and the noise spectral density is 1.7 nV/√Hz from 10 kHz to 1 MHz.

The ADM7151 is available in 8-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 800 mA of output current in a small, low profile footprint.

ADM7151 is an adjustable V_out device. For fixed V_out version of the ADM7151, see the ADM7150.
