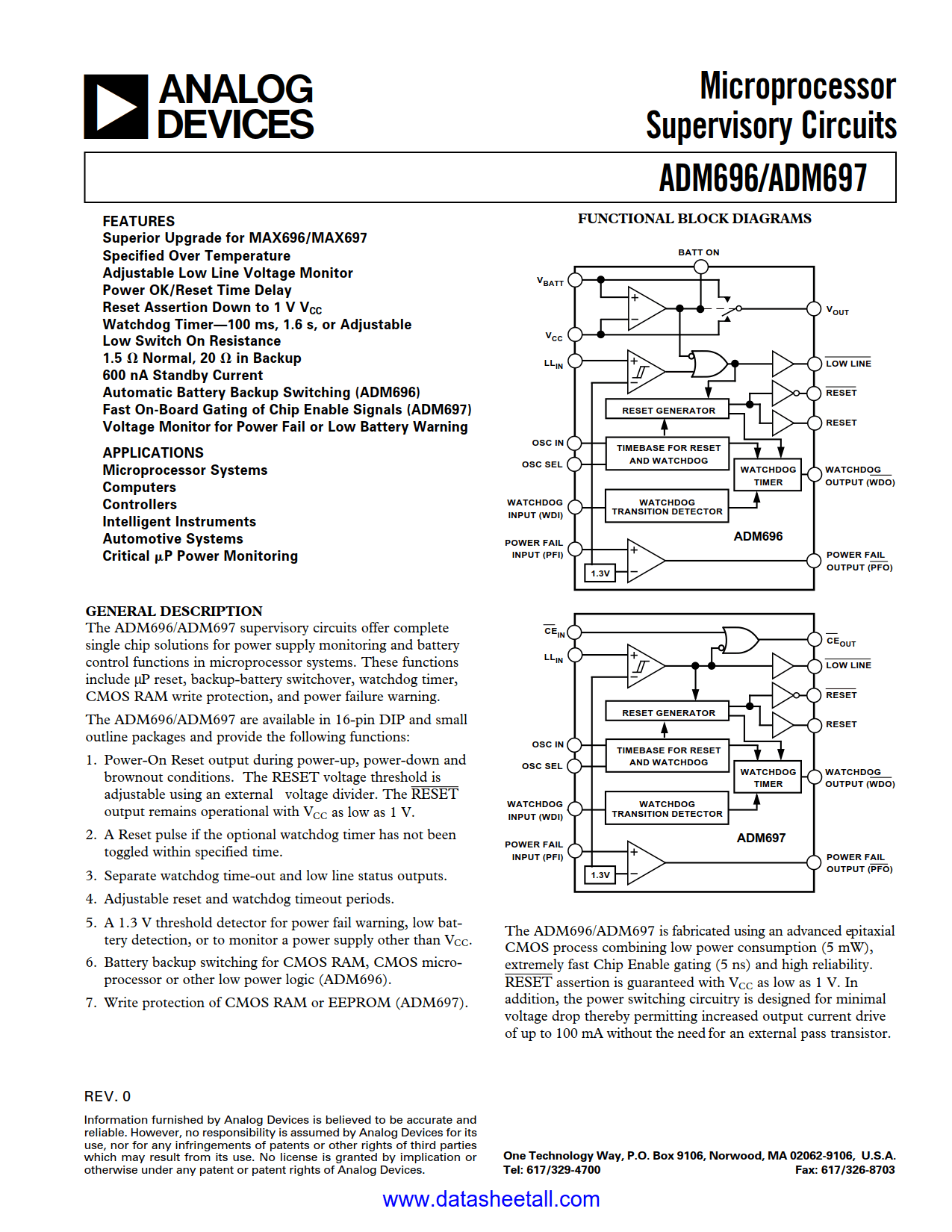

ADM696 Datasheet

• Superior Upgrade for MAX696
• Specified Over Temperature
• Adjustable Low Line Voltage Monitor
• Power OK/Reset Time Delay
• Reset Assertion Down to 1 V V_CC
• Watchdog Timer—100 ms, 1.6 s, or Adjustable
• 600 nA Standby Current
• Low Switch On Resistance
• 1.5 Ω Normal, 20 Ω in Backup
• Automatic Battery Backup Switching (ADM696)
• Voltage Monitor for Power Fail or Low Battery Warning

• Microprocessor Systems
• Computers
• Controllers
• Intelligent Instruments
• Automotive Systems
• Critical μP Power Monitoring

The ADM696 supervisory circuits offer complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup-battery switchover, watchdog timer, CMOS RAM write protection, and power failure warning.

The ADM696 are available in 16-pin DIP and small outline packages and provide the following functions:

• Power-On Reset output during power-up, power-down and brownout conditions. The RESET voltage threshold is adjustable using an external voltage divider. The RESET output remains operational with V_CC as low as 1 V.
• A Reset pulse if the optional watchdog timer has not been toggled within specified time.
• Separate watchdog time-out and low line status outputs.
• Adjustable reset and watchdog timeout periods.
• A 1.3 V threshold detector for power fail warning, low battery detection, or to monitor a power supply other than V_CC.
• Battery backup switching for CMOS RAM, CMOS micro-processor or other low power logic (ADM696).

The ADM696 is fabricated using an advanced epitaxial CMOS process combining low power consumption (5 mW), extremely fast Chip Enable gating (5 ns) and high reliability. RESET assertion is guaranteed with V_CC as low as 1 V. In addition, the power switching circuitry is designed for minimal voltage drop thereby permitting increased output current drive of up to 100 mA without the need for an external pass transistor.
