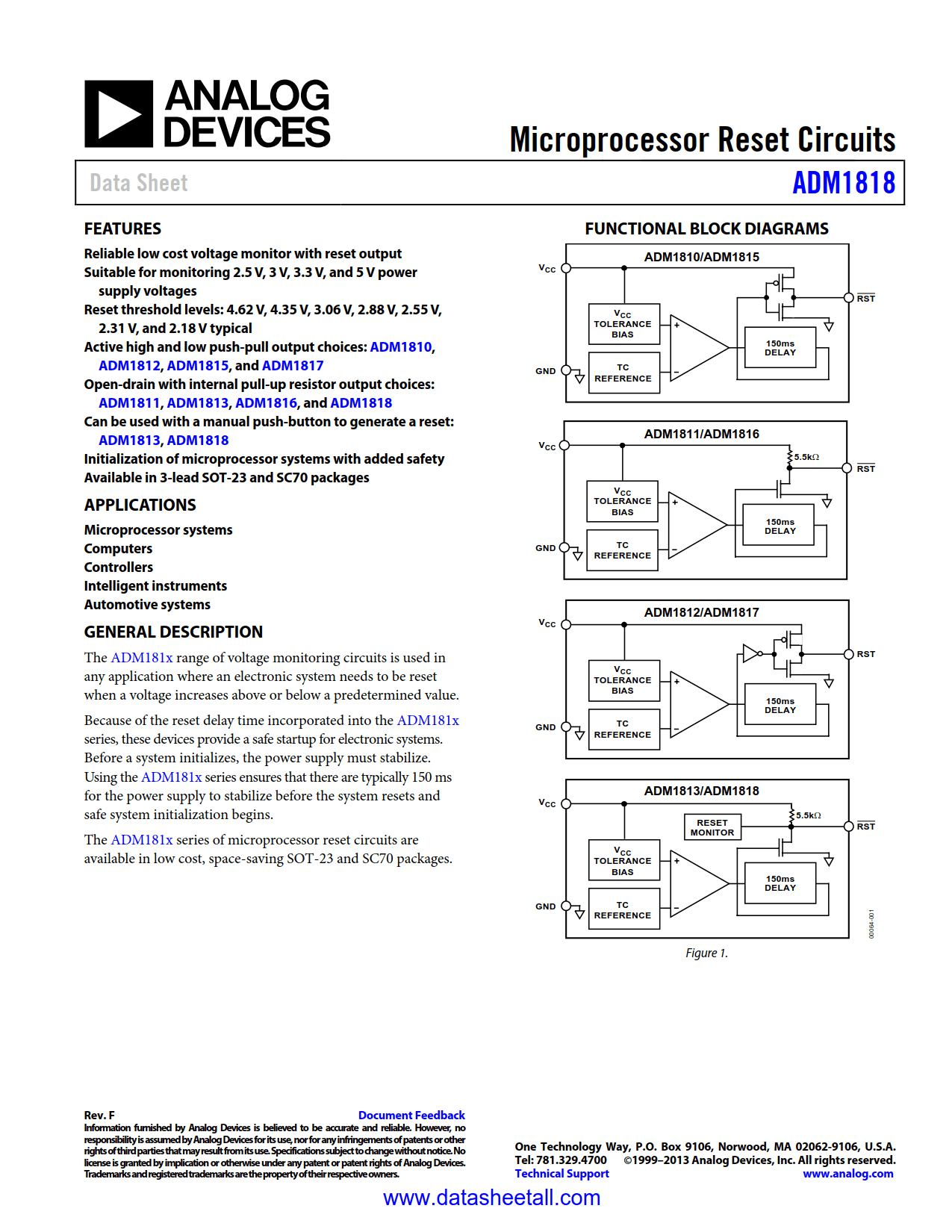

ADM1818 Datasheet

• Reliable Low Cost Voltage Monitor with Reset Output
• Suitable for Monitoring 2.5 V, 3 V, 3.3 V, and 5 V Power Supply Voltages
• Reset Threshold Levels: 4.62 V, 4.35 V, 3.06 V, 2.88 V, 2.55 V, 2.31 V, and 2.18 V (Typ)
• Active High and Low Push-Pull Output Choices (ADM1810, ADM1812, ADM1815, and ADM1817)
• Open-Drain Output Choices (ADM1811, ADM1813, ADM1816, and ADM1818)
• Can Be Used with a Manual Push-Button to Generate a Reset (ADM1813, ADM1818)
• Initialize Microprocessor Systems with Added Safety
• Available in 3-Lead SOT-23 and SC70 Packages

• Microprocessor systems
• Computers
• Controllers
• Intelligent instruments
• Automotive systems

The ADM1818 range of voltage monitoring circuits can be used in any application where an electronic system needs to be reset when a voltage increases above or below a predetermined value.

Because of the “reset delay time” incorporated into the ADM181x series, these devices can provide a safe startup for electronic systems. Before a system initializes, the power supply must stabilize. Using the ADM1818 ensures that there are typically 150 ms for the power supply to stabilize before the system is reset and safe system initialization begins.

The ADM1818 of microprocessor reset circuits are available in low cost, space-saving SOT-23 packages.
