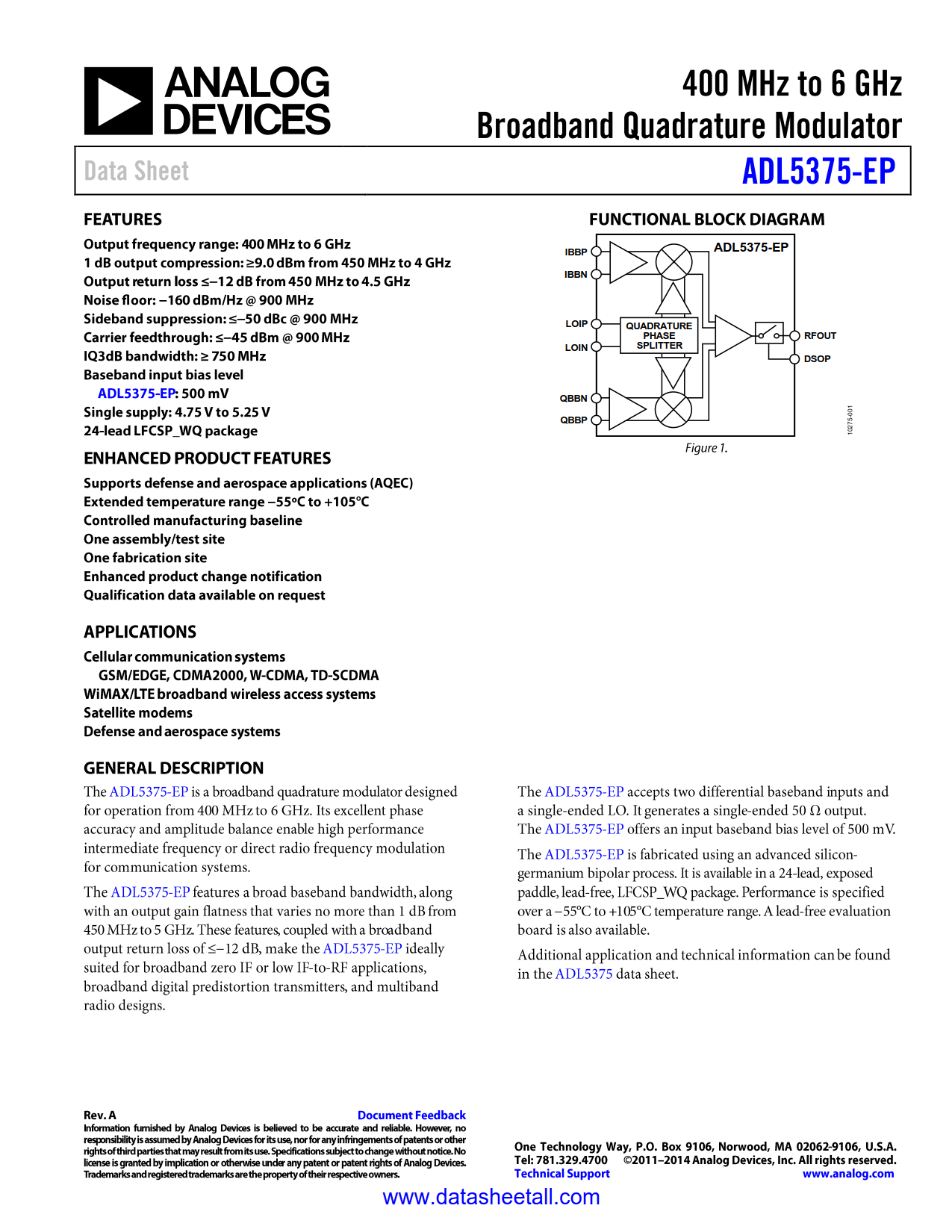

ADL5375-EP Datasheet

• Output frequency range: 400 MHz to 6 GHz
• 1 dB output compression: ≥9.4 dBm from 450 MHz to 4 GHz
• Output return loss ≤12 dB from 450 MHz to 4.5 GHz
• Noise floor: −160 dBm/Hz @ 900 MHz
• Sideband suppression: ≤−50 dBc @ 900 MHz
• Carrier feedthrough: ≤−40 dBm @ 900 MHz
• IQ3dB bandwidth: ≥ 750 MHz
• Baseband input bias level
  ADL5375-EP: 500 mV
• Single supply: 4.75 V to 5.25 V
• 24-lead LFCSP_VQ package

ENHANCED PRODUCT FEATURES

• Supports defense and aerospace applications (AQEC standard)
• Extended temperature range: −55ºC to +105°C
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• Cellular communication systems
  GSM/EDGE, CDMA2000, W-CDMA, TD-SCDMA
• WiMAX/broadband wireless access systems
• Satellite modems
• Defense and aerospace systems

The ADL5375-EP is a broadband quadrature modulatordesigned for operation from 400 MHz to 6 GHz. Its excellent phase accuracy and amplitude balance enable high performance intermediate frequency or direct radio frequency modulation for communication systems.

The ADL5375-EP features a broad baseband bandwidth, along with an output gain flatness that varies no more than 1 dB from 450 MHz to 5 GHz. These features, coupled with a broadband output return loss of≤-12 dB, make the ADL5375-EP ideally suited for broadband zero IF or low IF-to-RF applications, broadband digital predistortion transmitters, and multiband radio designs.

The ADL5375-EP accepts two differential baseband inputs and a single-ended LO. It generates a single-ended 50 Ω output.The ADL5375-EP offers an input baseband bias level of 500 mV.The ADL5375-EP is fabricated using an advanced silicongermanium bipolar process, It is available in a 24-lead, exposed paddle,lead-free, LFCSP_WQ package, Performance is specified over a -55°C to +105°C temperature range. A lead free evaluation board is also available.

Additional application and technical information can be found in the ADL5375 data sheet.
