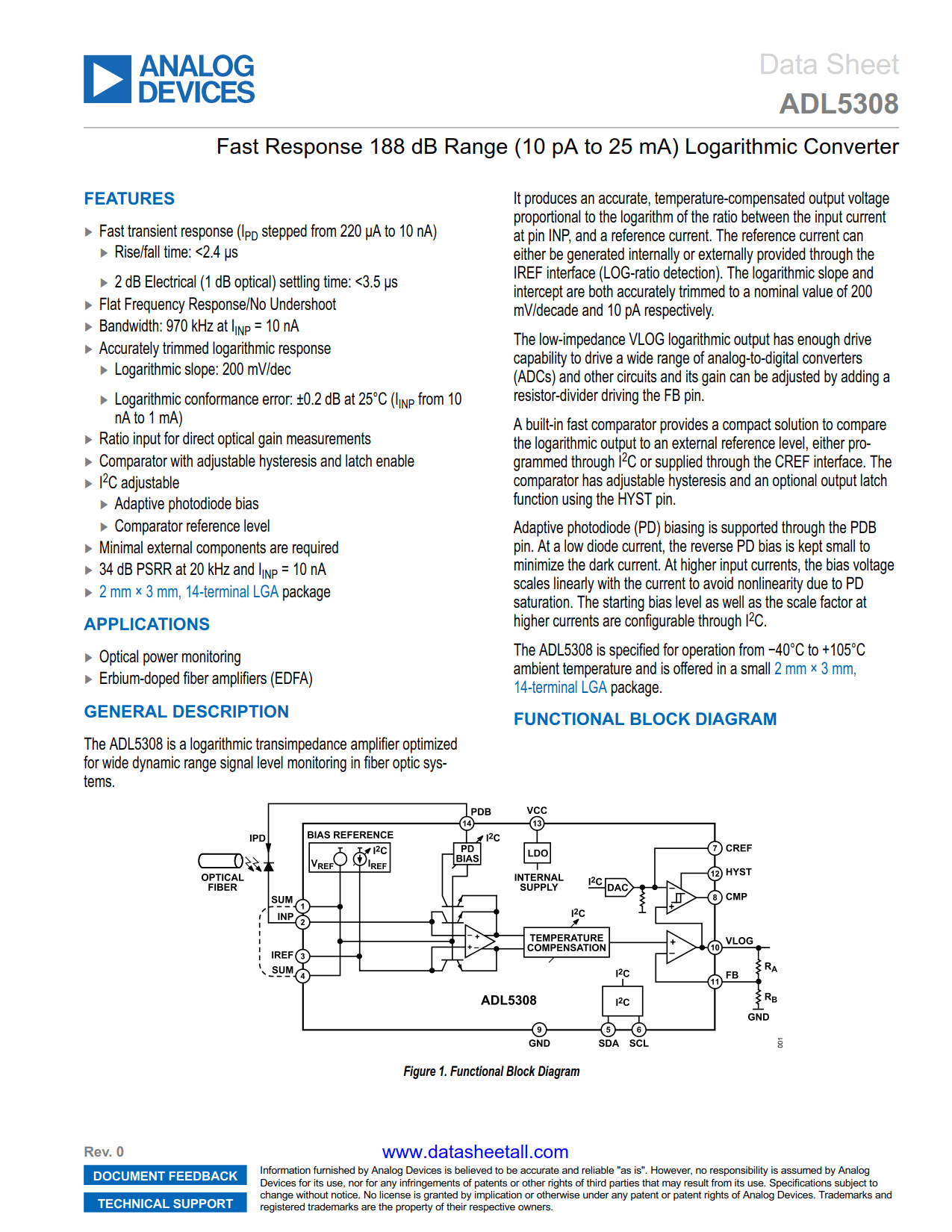

ADL5308 Datasheet

The ADL5308 is a high-performance, logarithmic amplifier designed by Analog Devices. It is primarily used for applications where measuring wide-ranging signal levels is required, such as in RF, audio, and optical systems. By providing a logarithmic response to the input signal, the ADL5308 allows engineers to easily measure signals that vary over a broad dynamic range, from very weak signals to much stronger ones, with great accuracy.

Wide Dynamic Range:

The ADL5308 is capable of handling an input signal dynamic range from -60 dBm to +20 dBm, making it suitable for a variety of low- to high-power signal measurements.
The device can compress and scale signals over this wide range, enabling engineers to accurately monitor both weak and strong signals in a system.

High Linearity and Accuracy:

The device features excellent logarithmic linearity, which allows for precise measurement of signal power with minimal distortion.
It provides a high degree of accuracy in converting input signals to a logarithmic scale, with a typical error of less than ±0.2 dB over most of the operating range.

Low Power Consumption:

The ADL5308 operates with low power consumption (typically 2.8 mA), making it ideal for battery-operated devices and energy-sensitive systems without compromising performance.

Wide Frequency Response:

This logarithmic amplifier works across a broad frequency range, from DC to 1 GHz, ensuring it can be used in both low-frequency (audio, optical) and high-frequency (RF, communication) applications.

Output Scaling:

The device has an analog output voltage that is proportional to the logarithm of the input power. This means it generates a voltage that represents the input signal's power in a logarithmic format, simplifying the measurement and interpretation of wide-ranging signals.

High-Speed Response:

With fast response times, the ADL5308 can track rapidly changing signals with high precision, making it suitable for dynamic systems that require real-time monitoring.

Temperature Stability:

The device offers good temperature stability, ensuring consistent performance across a range of operating temperatures, which is critical for many industrial and field applications.

Low Offset Voltage:

The ADL5308 minimizes offset voltage, which helps improve the accuracy of measurements, especially when dealing with very weak input signals.

Easy Integration:

The device features a simple analog output that can be easily interfaced with other components, such as microcontrollers or ADCs, for further processing and analysis.
It supports single-supply operation, simplifying power supply requirements in your system.

Applications:

RF Power Monitoring: Ideal for measuring power in communication systems and RF signal monitoring.
Signal Strength Measurement: Used in optical and wireless systems where monitoring the strength of signals across a wide range of values is necessary.
Audio and Video Systems: Provides accurate measurement of audio signals for gain control or dynamic range compression.
Test and Measurement Equipment: Suitable for use in lab setups that require measuring and processing signals with high dynamic range.

Electrical Specifications:

Supply Voltage: Operates from a single +3V to +5V supply, making it easy to integrate into low-voltage systems.
Power Consumption: Extremely low (2.8 mA typical), making it ideal for low-power applications.
Operating Frequency Range: From DC to 1 GHz, making it versatile for both low-frequency and high-frequency measurements.
Output Voltage Range: The output is a logarithmic representation of the input power, providing a convenient format for signal analysis.
Temperature Range: Operates over a wide temperature range, ensuring reliable performance in diverse environments.
