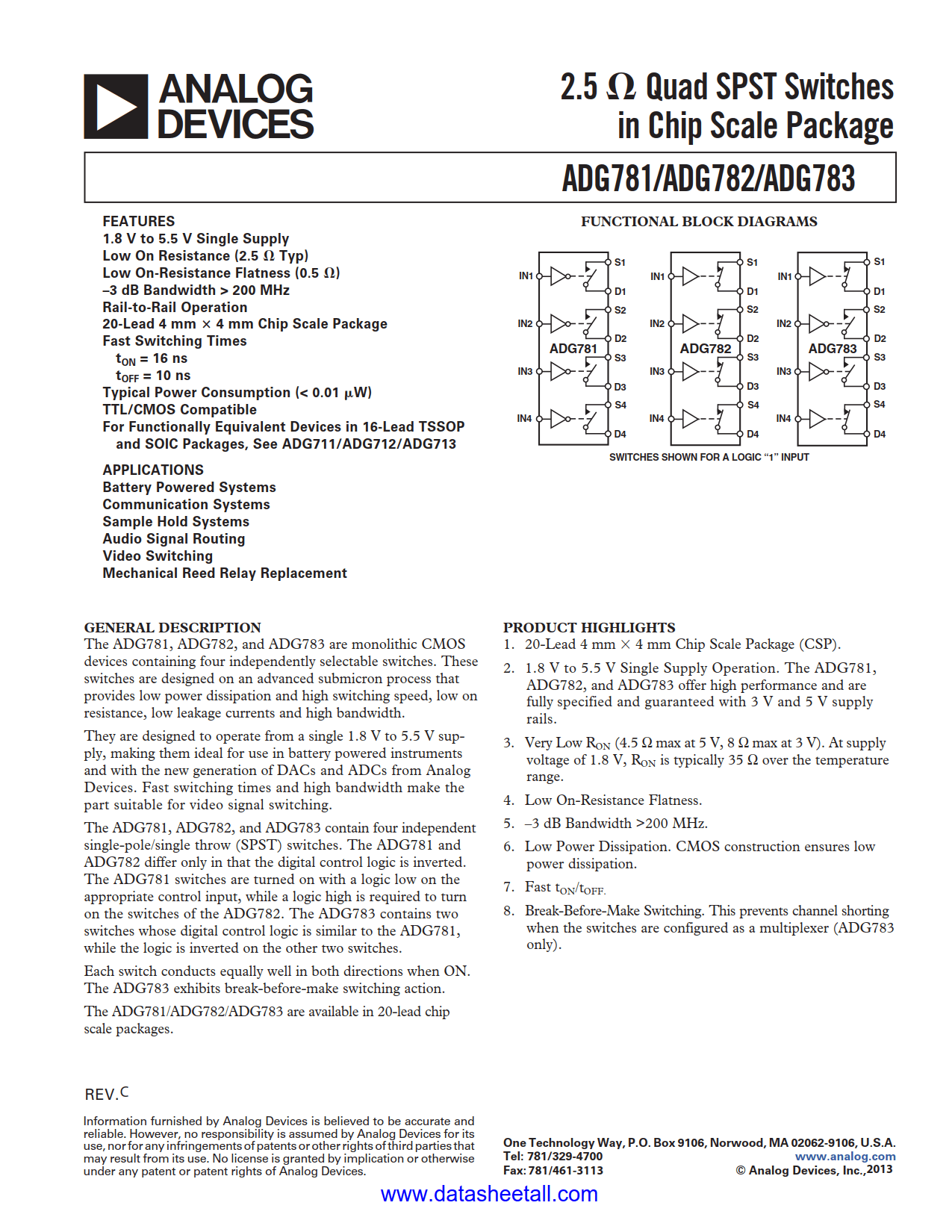

ADG783 Datasheet

• 1.8 V to 5.5 V Single Supply
• 2.5 O (Typ) On Resistance
• Low On-Resistance Flatness (0.5 O)
• −3 dB Bandwidth >200 MHz
• Rail-to-Rail Operation
• 20 lead LFCSP package
• Fast Switching Times
  t_ON 16 ns
  t_OFF 10 ns
• Typical Power Consumption
  (<0.01 µW )
• TTL/CMOS Compatible

• Battery Powered Systems
• Communication Systems
• Sample Hold Systems
• Audio Signal Routing
• Video Switching
• Mechanical Reed Relay Replacement

The ADG783 are monolithic CMOS devices containing four independently selectable switches. These switches are designed on an advanced submicron process that provides low power dissipation and high switching speed, low on resistance, low leakage currents and high bandwidth.

They are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices. Fast switching times and high bandwidth make the part suitable for video signal switching.

The ADG783 contain four independent single-pole/single throw (SPST) switches. The ADG783 contains two switches whose digital control logic is similar to the ADG781, while the logic is inverted on the other two switches.

Each switch conducts equally well in both directions when ON. The ADG783 exhibits break-before-make switching action. The ADG783 are available in 20-lead chip scale packages.

PRODUCT HIGHLIGHTS

1. 20-Lead 4 mm × 4 mm Chip Scale Package (CSP).
2. 1.8 V to 5.5 V Single Supply Operation. The ADG783 offer high performance and are fully specified and guaranteed with 3 V and 5 V supply rails.
3. Very Low R_ON (4.5 Ω max at 5 V, 8 Ω max at 3 V). At supply voltage of 1.8 V, R_ON is typically 35 Ω over the temperature range.
4. Low On-Resistance Flatness.
5. –3 dB Bandwidth >200 MHz.
6. Low Power Dissipation. CMOS construction ensures low power dissipation.
7. Fast t_ON/t_OFF.
8. Break-Before-Make Switching. This prevents channel shorting when the switches are configured as a multiplexer (ADG783 only).
