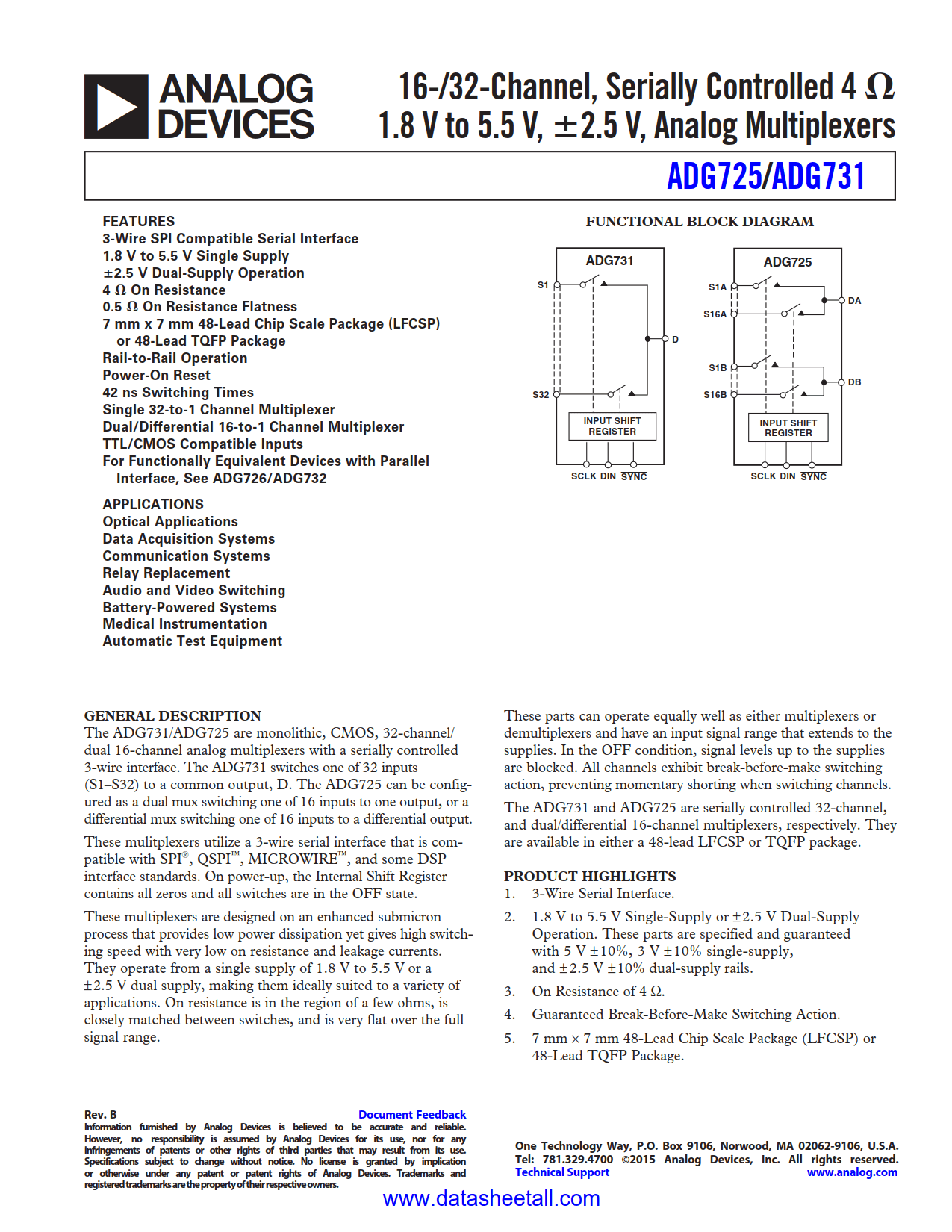

ADG725 Datasheet

• 3-Wire SPI Compatible Serial Interface
• 1.8 V to 5.5 V Single Supply
• ±2.5 V Dual-Supply Operation
• 4 Ω On Resistance
• 0.5 Ω On Resistance Flatness
• 7 mm x 7 mm 48-Lead Chip Scale Package (LFCSP) or 48-Lead TQFP Package
• Rail-to-Rail Operation
• Power-On Reset
• See data sheet for additional features

• Optical Applications
• Data Acquisition Systems
• Communication Systems
• Relay Replacement
• Audio and Video Switching
• Battery-Powered Systems
• Medical Instrumentation
• Automatic Test Equipment

The ADG725 are monolithic, CMOS, 32-channel/dual 16-channel analog multiplexers with a serially controlled 3-wire interface. The ADG725 can be configured as a dual mux switching one of 16 inputs to one output, or a differential mux switching one of 16 inputs to a differential output.

These mulitplexers utilize a 3-wire serial interface that is compatible with SPI^®, QSPI^™, MICROWIRE^™, and some DSP interface standards. On power-up, the Internal Shift Register contains all zeros and all switches are in the OFF state.

These multiplexers are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed with very low on resistance and leakage currents. They operate from a single supply of 1.8 V to 5.5 V or a ±2.5 V dual supply, making them ideally suited to a variety of applications. On resistance is in the region of a few ohms, is closely matched between switches, and is very flat over the full signal range.

These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels.

The ADG725 are serially controlled 32-channel, and dual/differential 16-channel multiplexers, respectively. They are available in either a 48-lead LFCSP or TQFP package.
