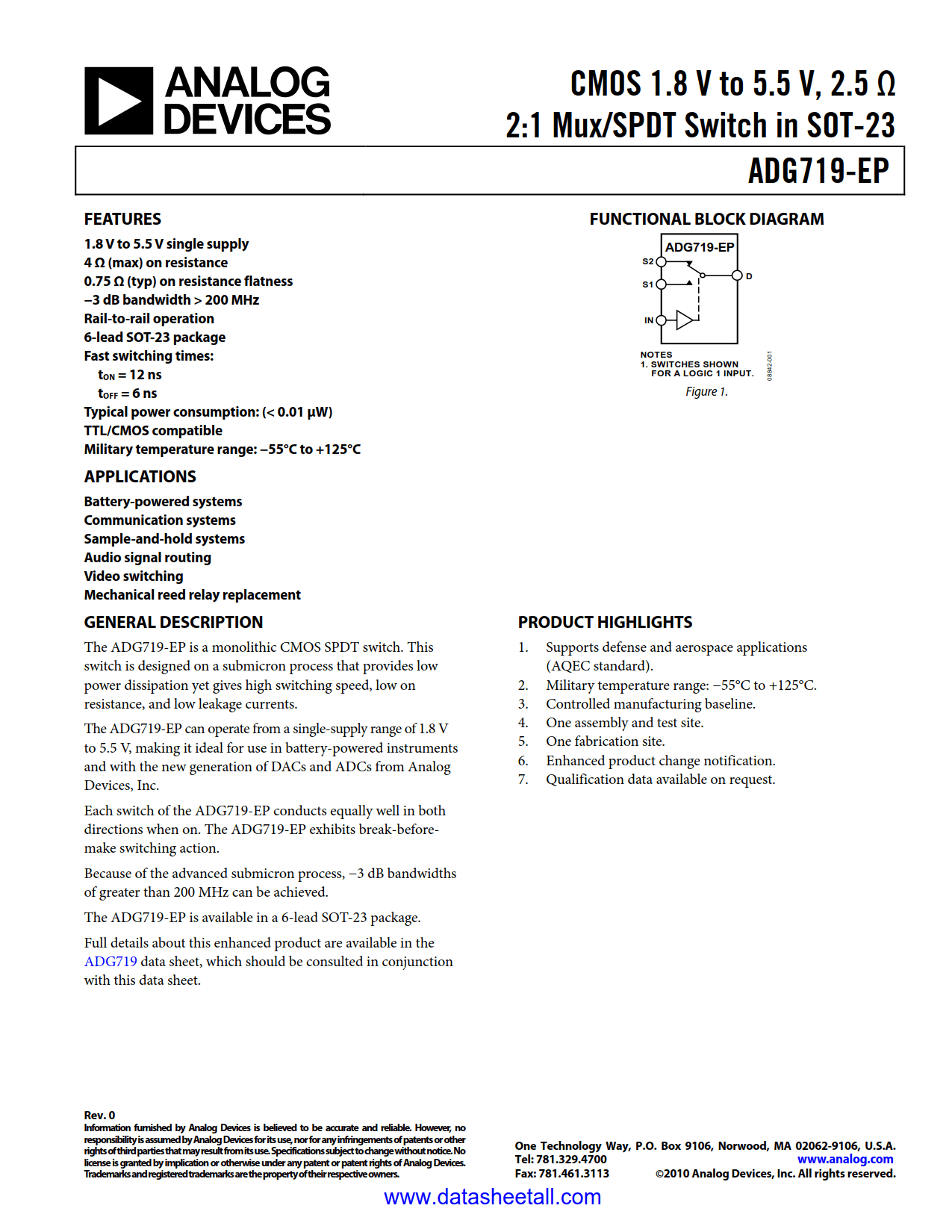

ADG719-EP Datasheet

• 1.8 V to 5.5 V single supply
• 4 Ω (max) on resistance
• 0.75 Ω (Typ) On-Resistance Flatness
• -3 dB Bandwidth >200 MHz
• Rail-to-Rail Operation
• 6-Lead SOT-23 package
• Fast Switching Times
  t_ON=12 ns
  t_OFF=6 ns
• Typical Power Consumption (<0.01 µW)
• TTL/CMOS Compatible
• Military temperature range: −55°C to +125°C

• Battery-powered systems
• Communication systems
• Sample-and-hold systems
• Audio signal routing
• Video switching
• Mechanical reed relay replacement

The ADG719-EP is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.

The ADG719-EP can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.

Each switch of the ADG719-EP conducts equally well in both directions when on. The ADG719-EP exhibits break-before make switching action.

Because of the advanced submicron process, −3 dB bandwidths of greater than 200 MHz can be achieved.

The ADG719-EP is available in a 6-lead SOT-23 package.

Full details about this enhanced product are available in the ADG719 data sheet, which should be consulted in conjunction with this data sheet.
