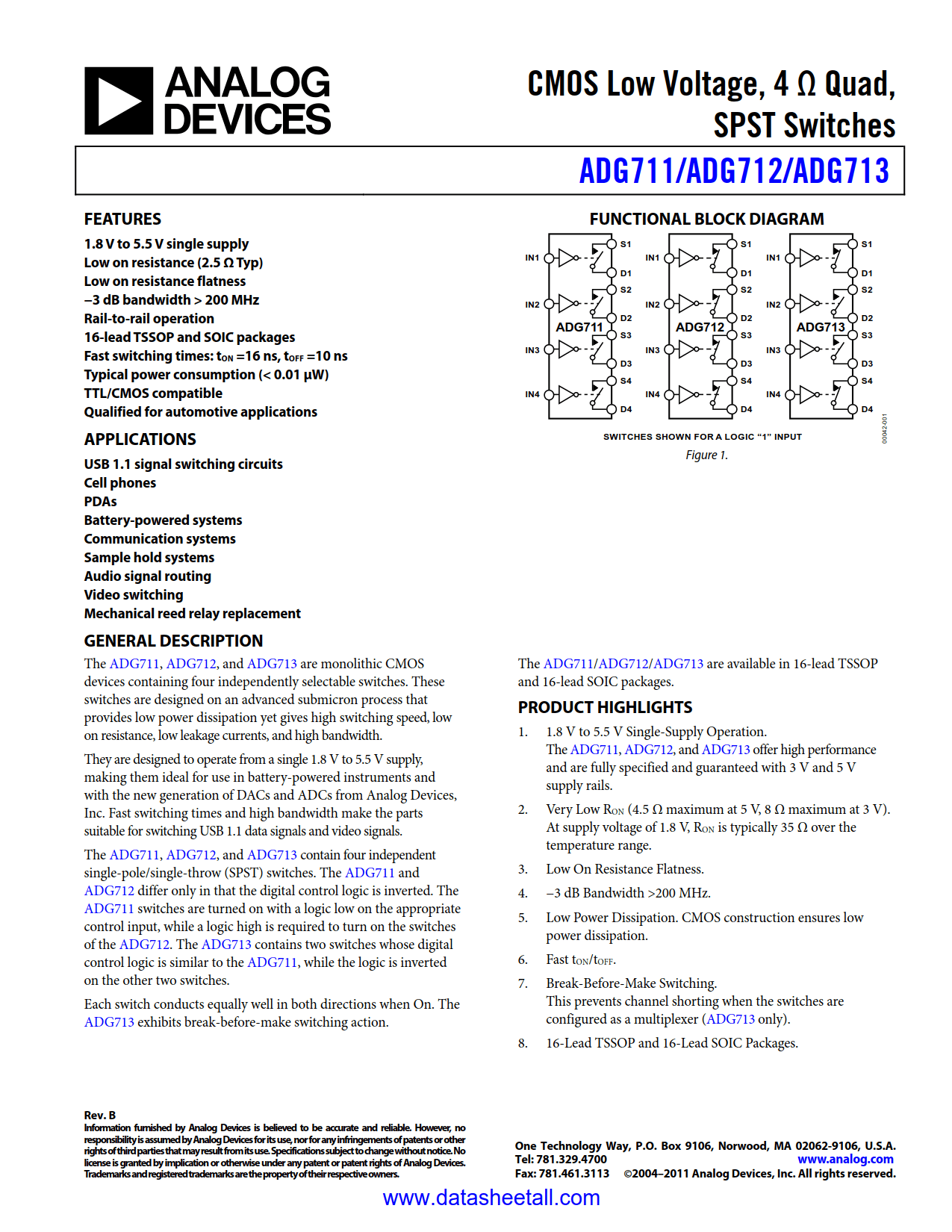

ADG712 Datasheet

• 1.8 V to 5.5 V Single Supply
• 2.5 Ω (Typ) On Resistance
• Low On-Resistance Flatness
• -3 dB Bandwidth >200 MHz
• Rail-to-Rail Operation
• 16-Lead TSSOP/SOIC packages
• Fast Switching Times
  t_ON 16 ns
  t_OFF 10 ns
• Typical Power Consumption (<0.01 µW )
• TTL/CMOS Compatible

• USB 1.1 signal switching circuits
• Cell phones
• PDAs
• Battery-powered systems
• Communication systems
• Sample hold systems
• Audio signal routing
• Video switching
• Mechanical reed relay replacement

The ADG712 is a monolithic CMOS device containing four independently selectable switches. It is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidth.

The ADG712 operates from a single +1.8 V to +5.5 V supply, making it ideal for use in battery powered instruments and with the new generation of DACs and ADCs from Analog Devices. Fast switching times and high bandwidth make the part suitable for video signal switching.

Each switch conducts equally well in both directions when ON. The ADG712 is available in 16-lead TSSOP and 16-lead SOIC packages.
