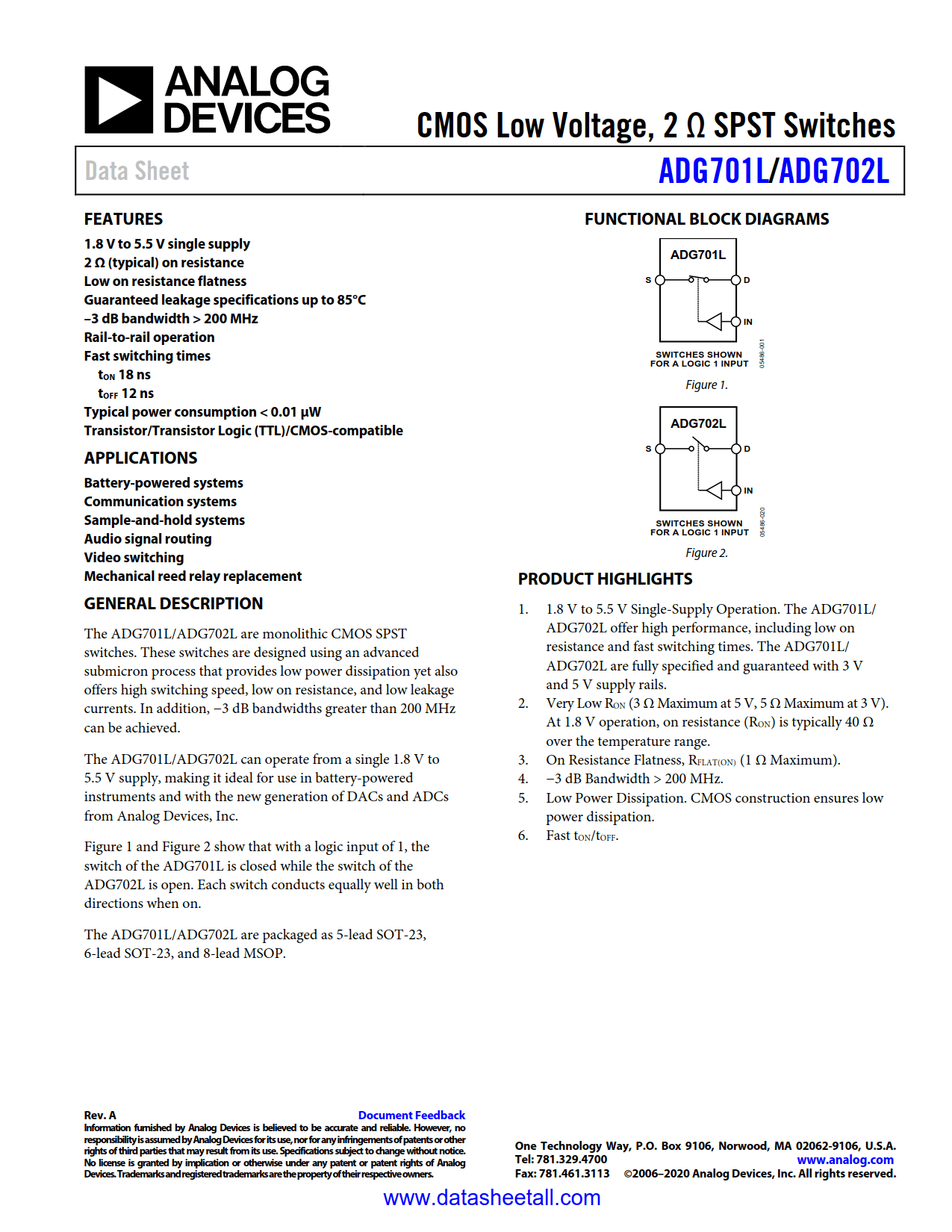

ADG702L Datasheet

• 1.8 V to 5.5 V single supply
• 2 Ω (typical) on resistance
• Low on resistance flatness
• Guaranteed leakage specifications up to 85°C
• –3 dB bandwidth > 200 MHz
• Rail-to-rail operation
• Fast switching times
  • t_ON 18 ns
  • t_OFF 12 ns
• Typical power consumption < 0.01 μW
• Transistor/Transistor Logic (TTL)/CMOS-compatible

• Battery-powered systems
• Communication systems
• Sample-and-hold systems
• Audio signal routing
• Video switching
• Mechanical reed relay replacement

The ADG702L are monolithic CMOS SPST switches. These switches are designed using an advanced submicron process that provides low power dissipation yet also offers high switching speed, low on resistance, and low leakage currents. In addition, −3 dB bandwidths greater than 200 MHz can be achieved.

The ADG702L can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.

Figure 1 and Figure 2 show that with a logic input of 1, the switch of the ADG702L is open. Each switch conducts equally well in both directions when on.

The ADG702L are packaged as 5-lead SOT-23, 6-lead SOT-23, and 8-lead MSOP.
