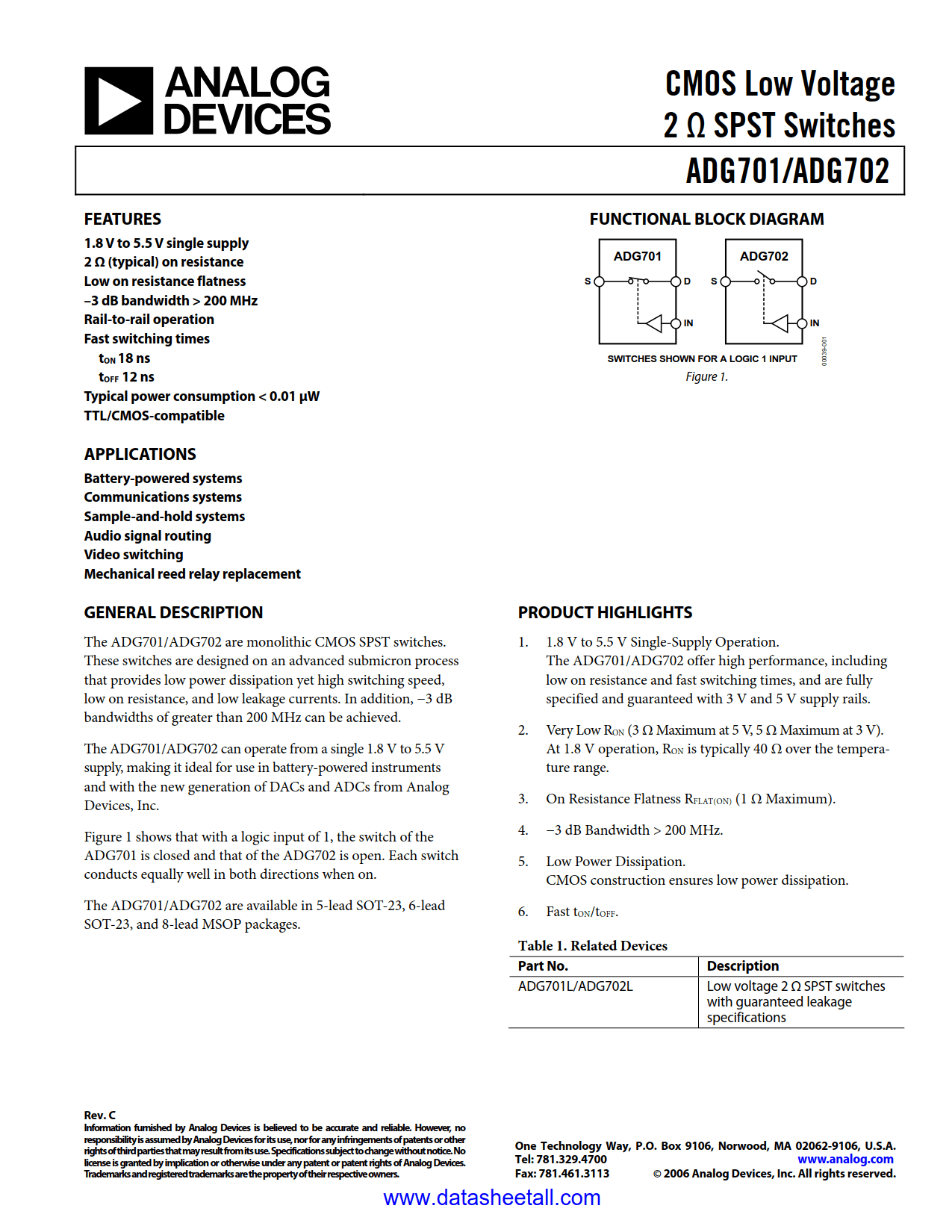

ADG702 Datasheet

• 1.8 V to 5.5 V Single Supply
• 2O (Typ) On Resistance
• Low On-Resistance Flatness
• -3 dB Bandwidth >200 MHz
• Rail-to-Rail Operation
• Tiny 6-Lead SOT23 and 8-Lead µSOIC packages
• Fast Switching Times
  t_ON 18 ns
  t_OFF12 ns
• Typical Power Consumption
• (<0.01 µW)
• TTL/CMOS Compatible

• Battery-powered systems
• Communications systems
• Sample-and-hold systems
• Audio signal routing
• Video switching
• Mechanical reed relay replacement

The ADG702 is a monolithic CMOS SPST switch. It is designed on an advanced submicron process that provides low power dissipation yet high switching speed, low on resistance, low leakage currents and -3 dB bandwidths of greater than 200 MHz can be achieved.

The ADG702 can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with Analog Devices' new generation of DACs and ADCs.

ADG702 Functional Block Diagram shows that with a logic input of 1, the switch of the ADG702 is open. Each switch conducts equally well in both directions when on.

The ADG702 are available in 5-lead SOT-23, 6-lead SOT-23, and 8-lead MSOP packages.
