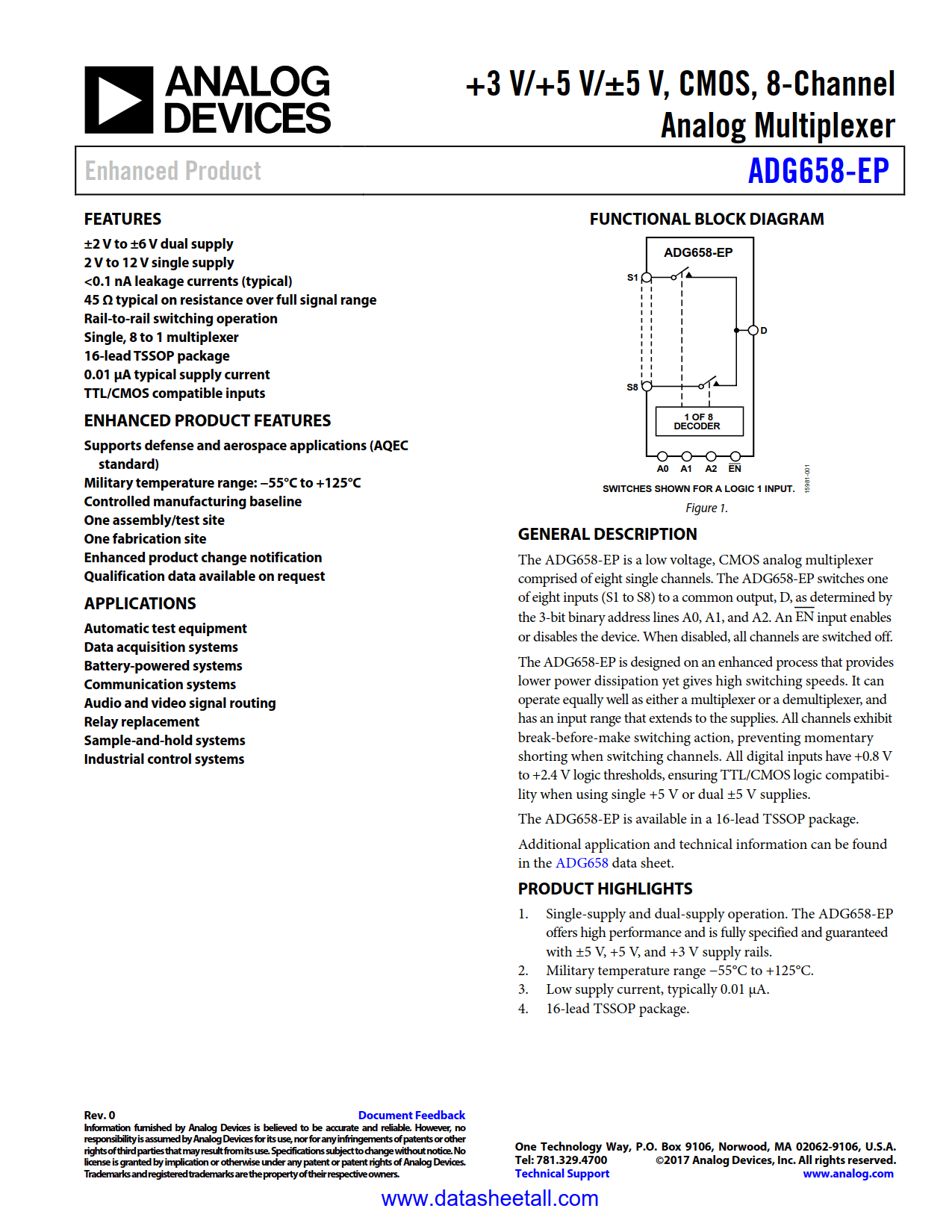

ADG658-EP Datasheet

• ±2 V to ±6 V dual supply
• 2 V to 12 V single supply
• <0.1 nA leakage currents (typical)
• 45 Ω on resistance over full signal range
• Rail-to-rail switching operation
• Single 8-to-1 multiplexer
• 16-lead TSSOP packages
• 0.01 μA typical supply current
• TTL/CMOS compatible inputs

ENHANCED PRODUCT FEATURES

• supports defense and aerospace applications (AQEC standard)
• Military temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• Automatic test equipment
• Data acquisition systems
• Battery-powered systems
• Communication systems
• Audio and video signal routing
• Relay replacement
• Sample-and-hold systems
• Industrial control systems

The ADG658-EP is a low voltage, CMOS analog multiplexer comprised of eight single channels. The ADG658-EP switches one of eight inputs (S1 to S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input enables or disables the device. When disabled, all channels are switched off.

The ADG658-EP is designed on an enhanced process that provides lower power dissipation yet gives high switching speeds. It can operate equally well as either a multiplexer or a demultiplexer, and has an input range that extends to the supplies. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels. All digital inputs have +0.8 V to +2.4 V logic thresholds, ensuring TTL/CMOS logic compatibility when using single +5 V or dual ±5 V supplies.

The ADG658-EP is available in a 16-lead TSSOP package.

Additional application and technical information can be found in the ADG658 data sheet.

PRODUCT HIGHLIGHTS

1. Single-supply and dual-supply operation. The ADG658-EP offers high performance and is fully specified and guaranteed with ±5 V, +5 V, and +3 V supply rails.

2. Military temperature range −55°C to +125°C.

3. Low supply current, typically 0.01 µA.

4. 16-lead TSSOP package.
