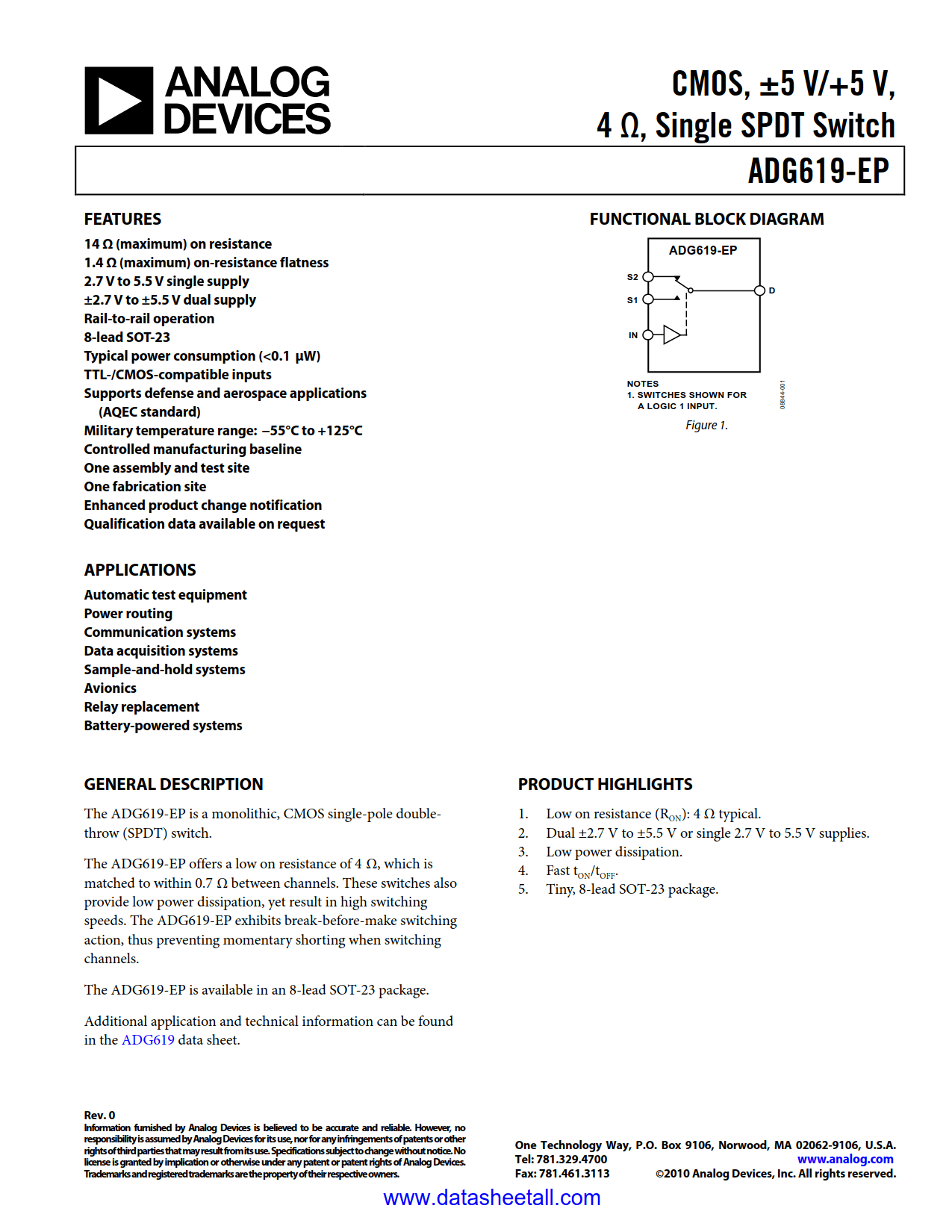

ADG619-EP Datasheet

• 14 Ω (maximum) on resistance
• 1.4 Ω (maximum) on-resistance flatness
• 2.7 V to 5.5 V single supply
• ±2.7 V to ±5.5 V dual supply
• Rail-to-rail operation
• 8-lead SOT-23
• Typical power consumption (<0.1 μW)
• TTL-/CMOS-compatible inputs
• Supports defense and aerospace applications (AQEC standard)
• Military temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• One assembly and test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• Automatic test equipment
• Power routing
• Communication systems
• Data acquisition systems
• Sample-and-hold systems
• Avionics Relay replacement
• Battery-powered systems

The ADG619-EP is a monolithic, CMOS single-pole doublethrow (SPDT) switch.

The ADG619-EP offers a low on resistance of 4 Ω, which is matched to within 0.7 Ω between channels. These switches also provide low power dissipation, yet result in high switching speeds. The ADG619-EP exhibits break-before-make switching action, thus preventing momentary shorting when switching channels.

The ADG619-EP is available in an 8-lead SOT-23 package.

Additional application and technical information can be found in the ADG619 data sheet.
