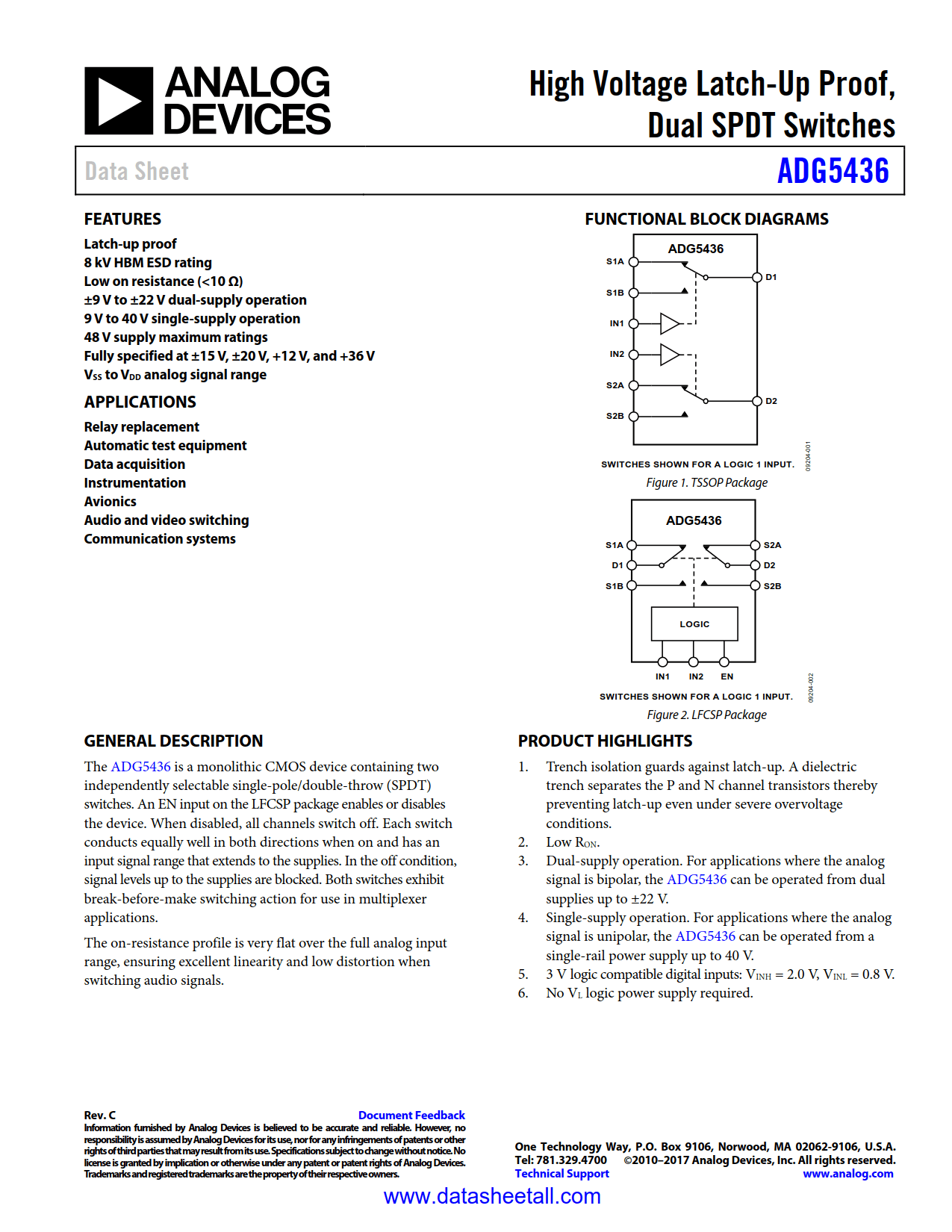

ADG5436 Datasheet

• Latch-up proof
• 8 kV HBM ESD rating
• Low on resistance (<10 Ω)
• ±9 V to ±22 V dual-supply operation
• 9 V to 40 V single-supply operation
• 48 V supply maximum ratings
• Fully specified at ±15 V, ±20 V, +12 V, and +36 V
• V_SS to V_DD analog signal range

• Relay replacement
• Automatic test equipment Data acquisition
• Instrumentation
• Avionics Audio and video switching
• Communication systems

The ADG5436 is a monolithic CMOS device containing two independently selectable single-pole/double-throw (SPDT) switches. An EN input on the LFCSP package enables or disables the device. When disabled, all channels switch off. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. Both switches exhibit break-before-make switching action for use in multiplexer applications.

The on-resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals.

Product Highlights

1. Trench isolation guards against latch-up. A dielectric trench separates the P and N channel transistors thereby preventing latch-up even under severe overvoltage conditions.
2. Low R_ON.
3. Dual-supply operation. For applications where the analog signal is bipolar, the ADG5436 can be operated from dual supplies up to ±22 V.
4. Single-supply operation. For applications where the analog signal is unipolar, the ADG5436 can be operated from a single-rail power supply up to 40 V.
5. 3 V logic compatible digital inputs: V_INH = 2.0 V, V_INL = 0.8 V.
6. No V_L logic power supply required.
