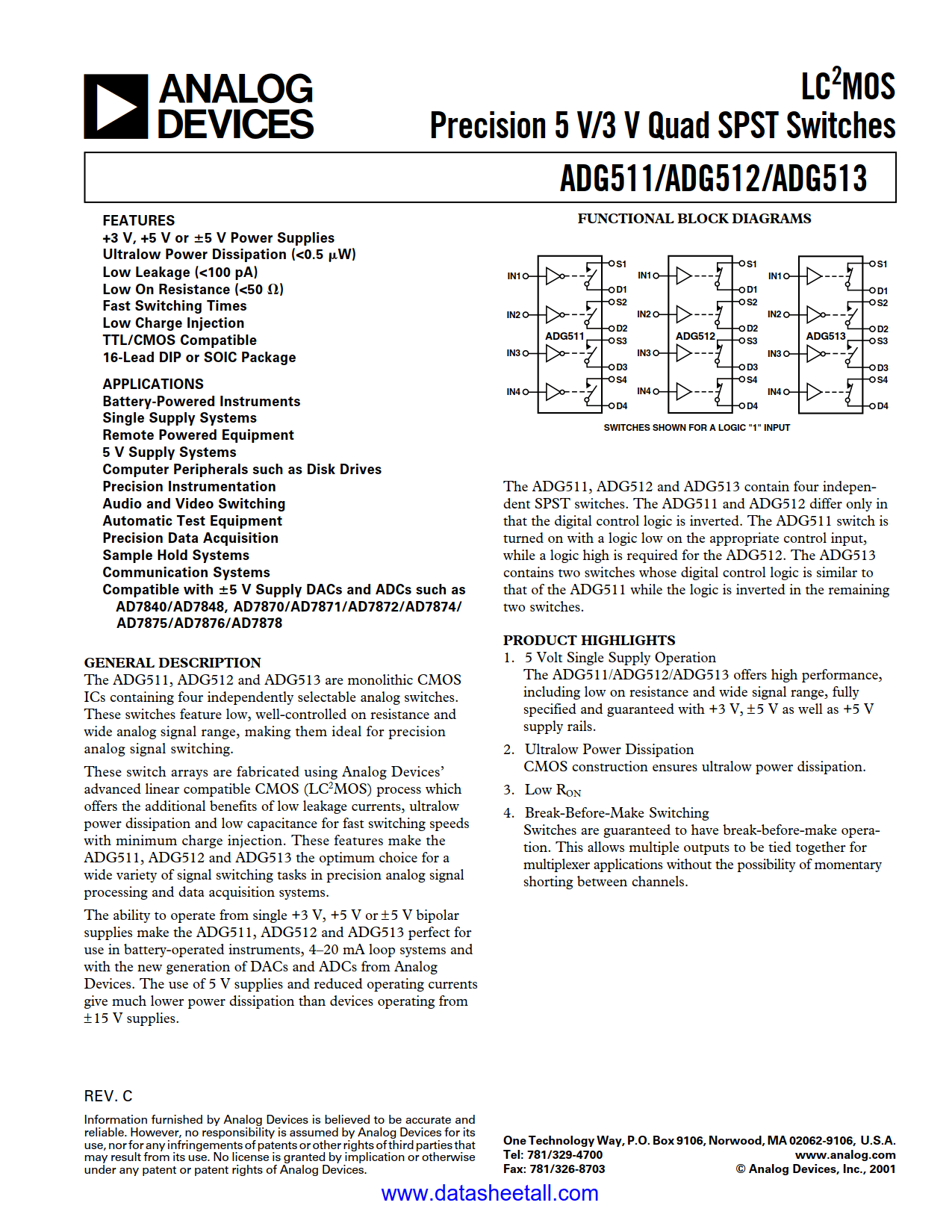

ADG511 Datasheet

• +3V, +5V and ± 5 V Power Supplies
• Ultralow Power Dissipation (<0.5 µW )
• Low Leakage (< 100 pA)
• Low On-Resistance (<50 O)
• Fast Switching Times
• Low Charge Injection
• TTL/CMOS-Compatible Inputs
• 16-Lead DIP and SOIC Packages

• Battery-Powered Instruments
• Single Supply Systems
• Remote Powered Equipment
• 5 V Supply Systems
• Computer Peripherals such as Disk Drives
• Precision Instrumentation
• Audio and Video Switching
• Automatic Test Equipment
• Precision Data Acquisition
• Sample Hold Systems
• Communication Systems

The ADG511 is a monolithic CMOS ICs containing four independently selectable analog switches. These switches feature low, well-controlled on resistance and wide analog signal range, making them ideal for precision analog signal switching.

The ADG511 switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
