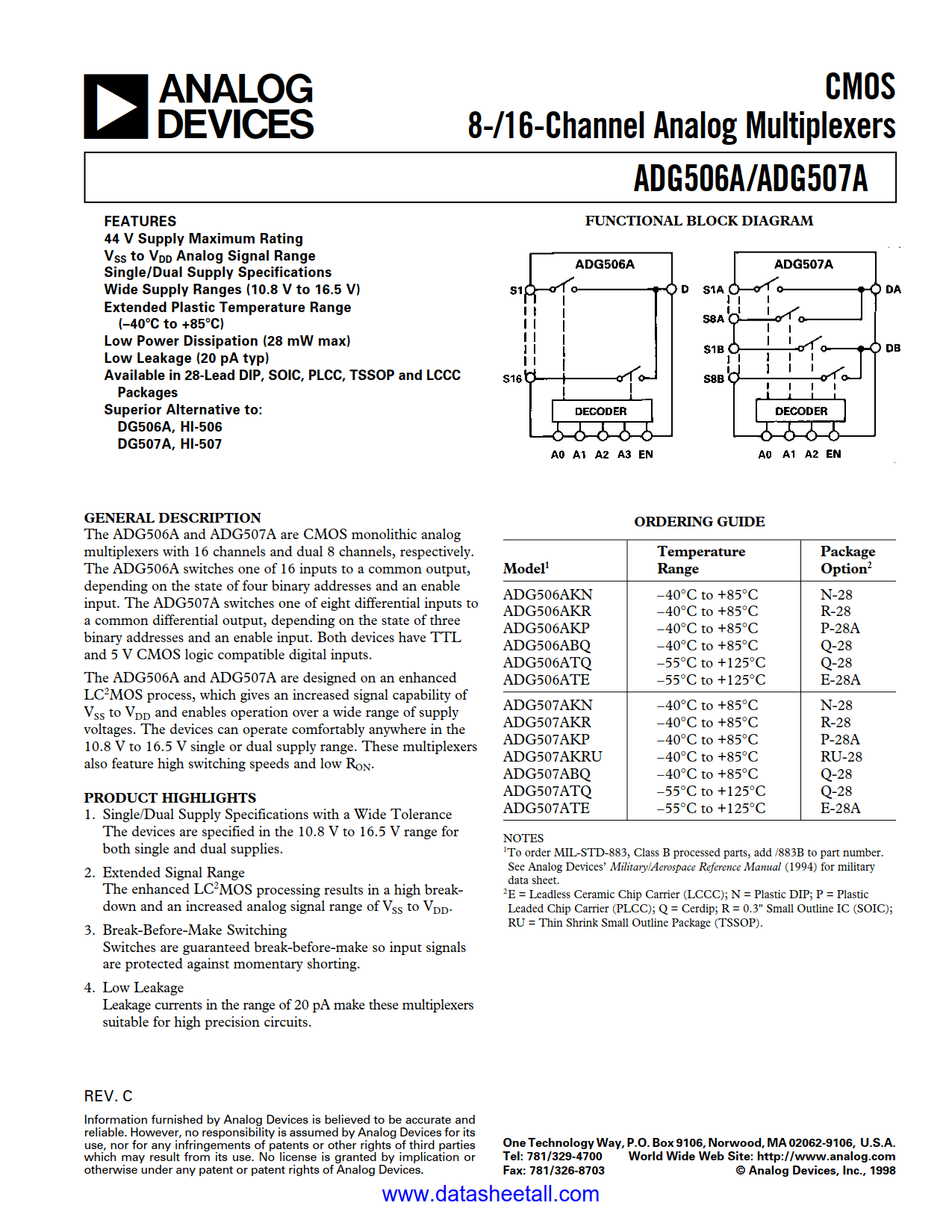

ADG507A Datasheet

• 44 V Supply Maximum Ratings
• V_SS to V_DD Analog Signal Range
• Single/Dual Supply Specifications
• Wide Supply Range (10.8 V to 16.5 V)
• Extended Plastic Temperature Range: -40°C to +85°C
• Low Power Dissipation (28 µW max)
• See datasheet for additional features

The ADG507A is a CMOS monolithic analog multiplexer with dual 8 channels. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.

The ADG507A is designed on an enhanced LC²MOS process, which gives an increased signal capability of V_SS to V_DD and enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low R_ON.
