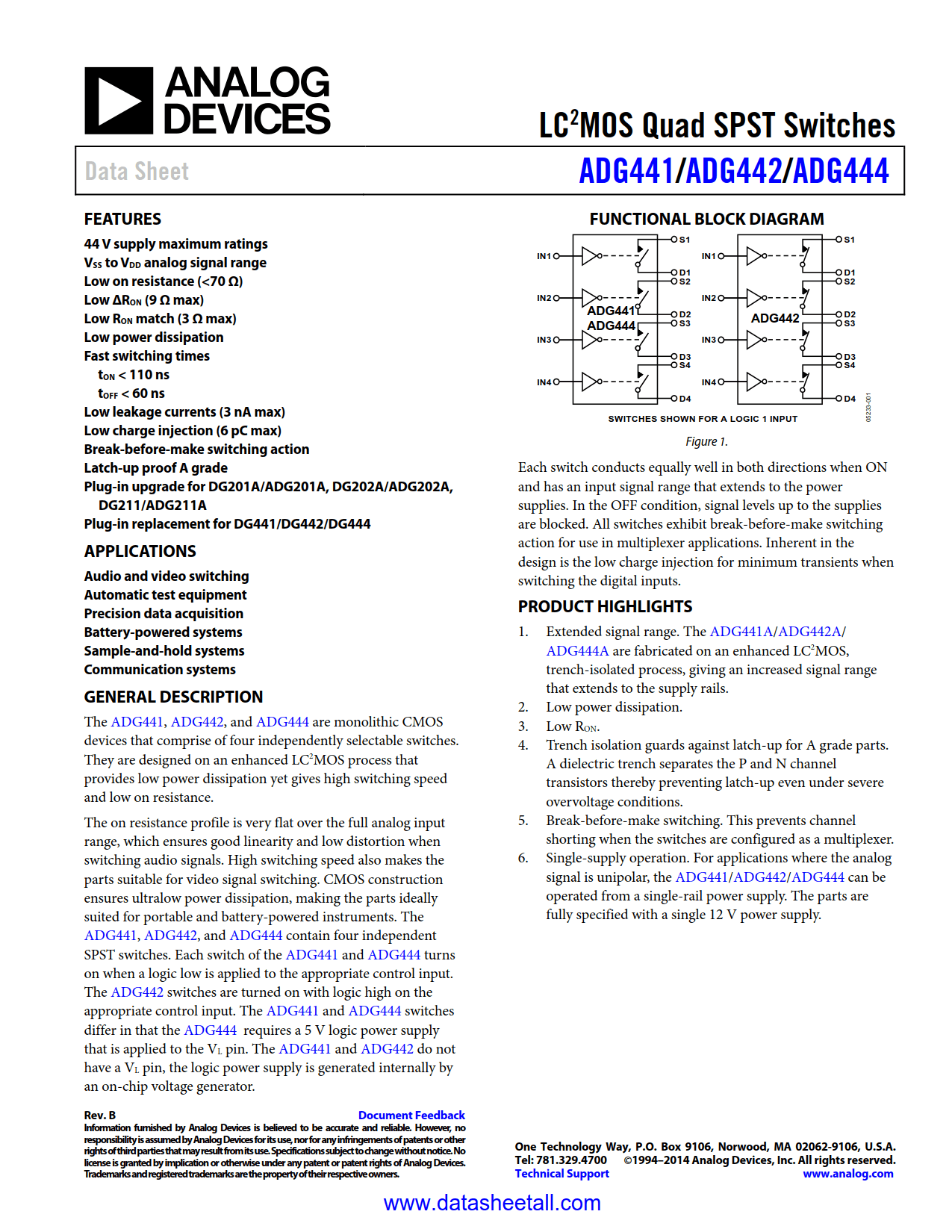

ADG444 Datasheet

• 44 V Supply Maximum Ratings
• V_SS to V_DD Analog Signal Range
• Low On-Resistance (< 70 O)
• Low ΔR_ON ( 9 Ω max)
• Fast Switching Times
  t_on < 110 ns
  t_off < 60 ns
• Low R_ON Match ( 3 Ω max)
• Low Power Dissipation
• Low Leakage Current (3 nA max)
• Low Charge Injection (6 pC max)
• Break-Before-Make Switching Action
• Latch Up Proof "A" grade options

• Audio and video switching
• Automatic test equipment
• Precision data acquisition
• Battery-powered systems
• Sample-and-hold systems
• Communication systems

The ADG444 is a monolithic CMOS device comprising four independently selectable switches. It is designed on an enhanced LC²MOS process which provides low power dissipation yet gives high switching speed and low on resistance.

The ADG444 switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
