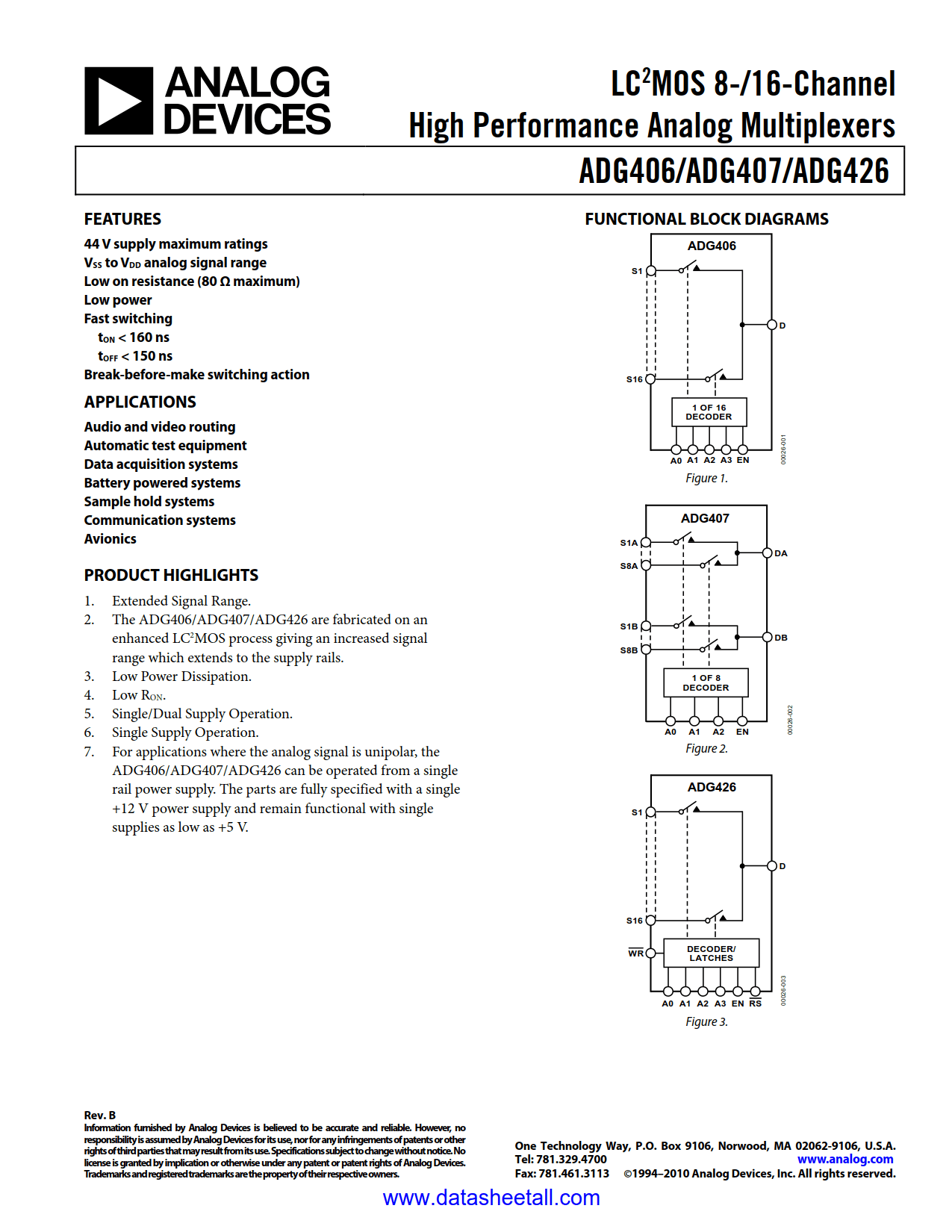

ADG426 Datasheet

• 44 V supply maximum ratings
• V_SS to V_DD analog signal range
• Low on resistance (80 Ω maximum)
• Low power
• Fast switching
  • t_ON < 160 ns
  • t_OFF < 150 ns
• Break-before-make switching action

• Audio and video routing
• Automatic test equipment
• Data acquisition systems
• Battery powered systems
• Sample hold systems
• Communication systems
• Avionics

The ADG426 are monolithic CMOS analog multiplexers. The ADG426 switch one of sixteen inputs to a common output as determined by the 4-bit binary address lines: A0, A1, A2, and A3. The ADG426 has on-chip address and control latches that facilitate microprocessor interfacing. An EN input on all devices is used to enable or disable the device. When disabled, all channels are switched off.

The ADG426 are designed on an enhanced LC²MOS process that provides low power dissipation yet gives high switching speed and low on resistance. These features make the parts suitable for high speed data acquisition systems and audio signal switching. Low power dissipation makes the parts suitable for battery powered systems. Each channel conducts equally well in both directions when on and has an input signal range which extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

1. Extended Signal Range.
2. The ADG426 are fabricated on an enhanced LC²MOS process giving an increased signal range which extends to the supply rails.
3. Low Power Dissipation.
4. Low R_ON.
5. Single/Dual Supply Operation.
6. Single Supply Operation.
7. For applications where the analog signal is unipolar, the ADG426 can be operated from a single rail power supply. The parts are fully specified with a single +12 V power supply and remain functional with single supplies as low as +5 V.
