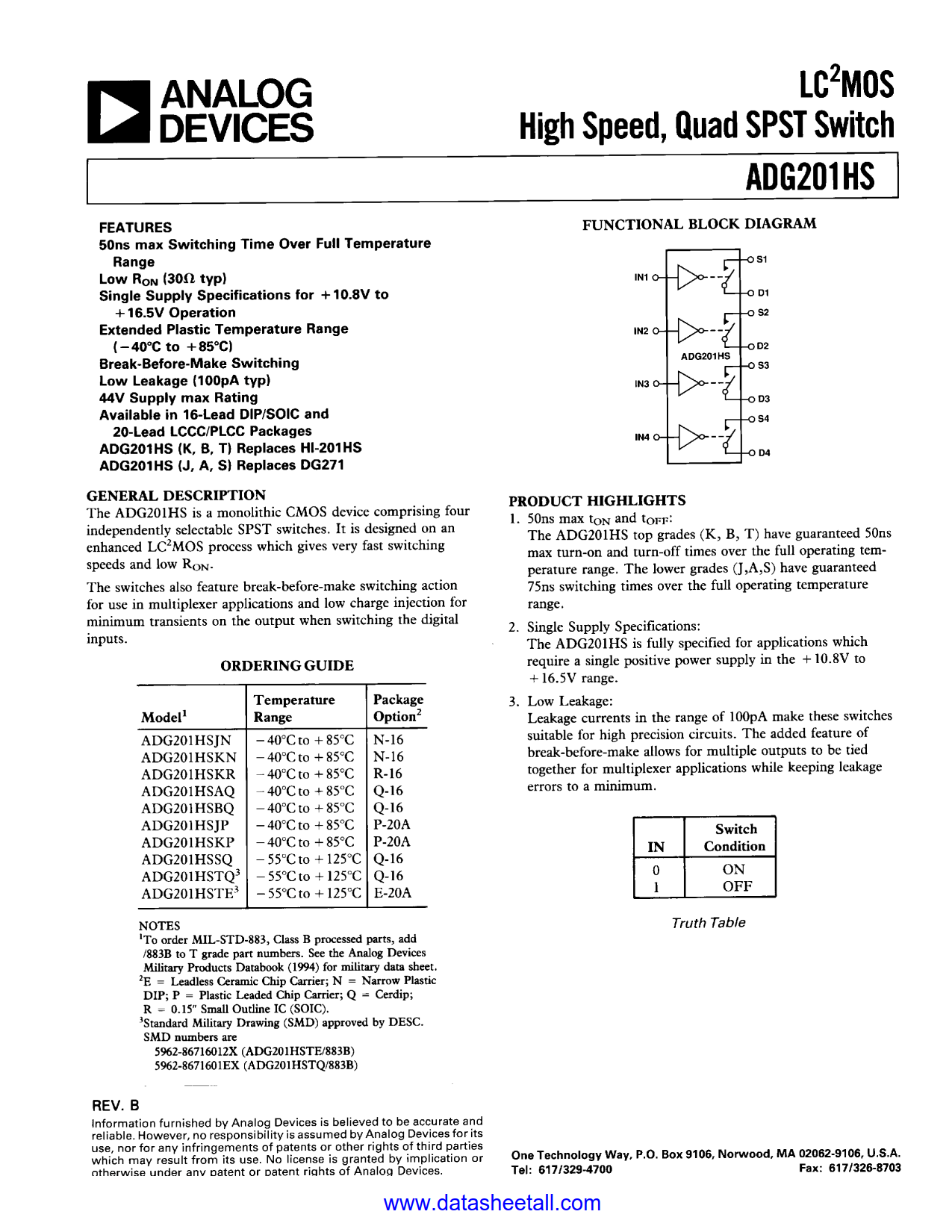

ADG201HS Datasheet

• 50 ns max Switching Time Over Full Temperature Range
• Single Supply Specs for +10.9 V to 16.5 V Operation
• Extended Plastic Temperature Range (-40°C to +85°C)
• Break-Before-Make Switching Action
• Low R_ON (30Ω max)
• Low Leakage (100 pA typ)
• 44 V Supply Maximum Ratings
• Available in 16-Lead DIP/SOIC and 20-Lead LCCC/PLCC Packages
  ADG201HS (K, B, T) Replaces HI-201HS
  ADG201HS (J, A, S) Replaces DG271

The ADG201HS is a monolithic CMOS device comprising four independently selectable SPST switches. It is designed on an enhanced LC² MOS process which gives very fast switching speeds and low R_ON.

 The switches also feature break-before-make switching action for use in multiplexer applications and low charge injection for minimum transients on the output when switching the digital inputs.

PRODUCT HIGHLIGHTS

1. 50ns max t_ON and t_OFF:
   The ADG201HS top grades (K, B, T) have guaranteed 50ns max turn-on and turn-off times over the full operating temperature range. The lower grades (J,A,S) have guaranteed 75ns switching times over the full operating temperature range.
2. Single Supply Specifications:
   The ADG201HS is fully specified for applications which require a single positive power supply in the + 10.8V to +16.5V range.
3. Low Leakage:
   Leakage currents in the range of 100pA make these switches suitable for high precision circuits. The added feature of break-before-make allows for multiple outputs to be tied together for multiplexer applications while keeping leakage errors to a minimum.
