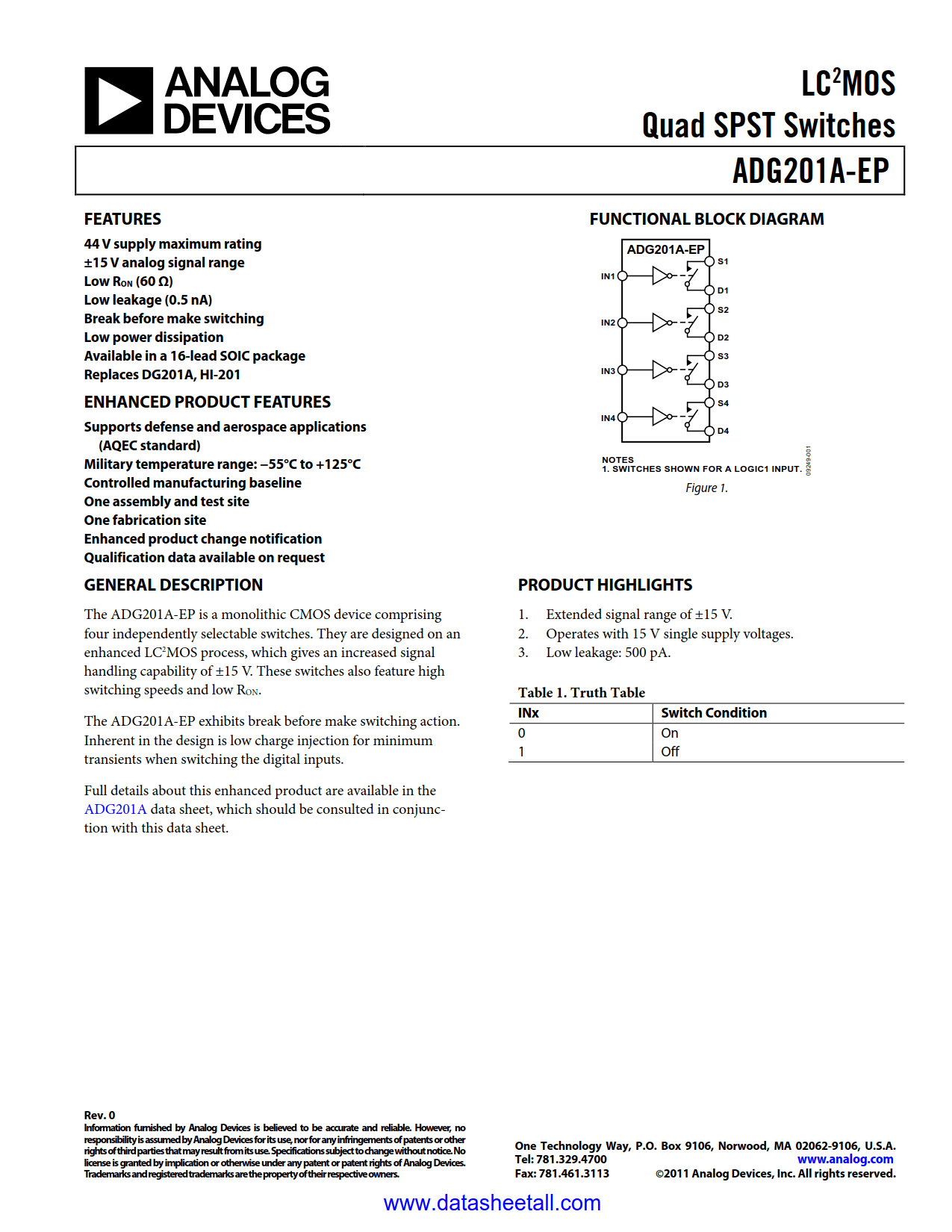

ADG201A-EP Datasheet

• 44 V supply maximum rating
• ±15 V analog signal range
• Low R_ON (60 Ω)
• Low leakage (0.5 nA)
• Break before make switching
• Low power dissipation
• Available in a 16-lead SOIC package
• Replaces DG201A, HI-201

• Supports defense and aerospace applications(AQEC standard)
• Military temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• One assembly and test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

The ADG201A-EP is a monolithic CMOS device comprising four independently selectable switches. They are designed on an enhanced LC2MOS process, which gives an increased signal handling capability of ±15 V. These switches also feature high switching speeds and low RON.

The ADG201A-EP exhibits break before make switching action. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

Full details about this enhanced product are available in the ADG201A data sheet, which should be consulted in conjunction with this data sheet.

PRODUCT HIGHLIGHTS
1. Extended signal range of ±15 V.
2. Operates with 15 V single supply voltages.
3. Low leakage: 500 pA.
