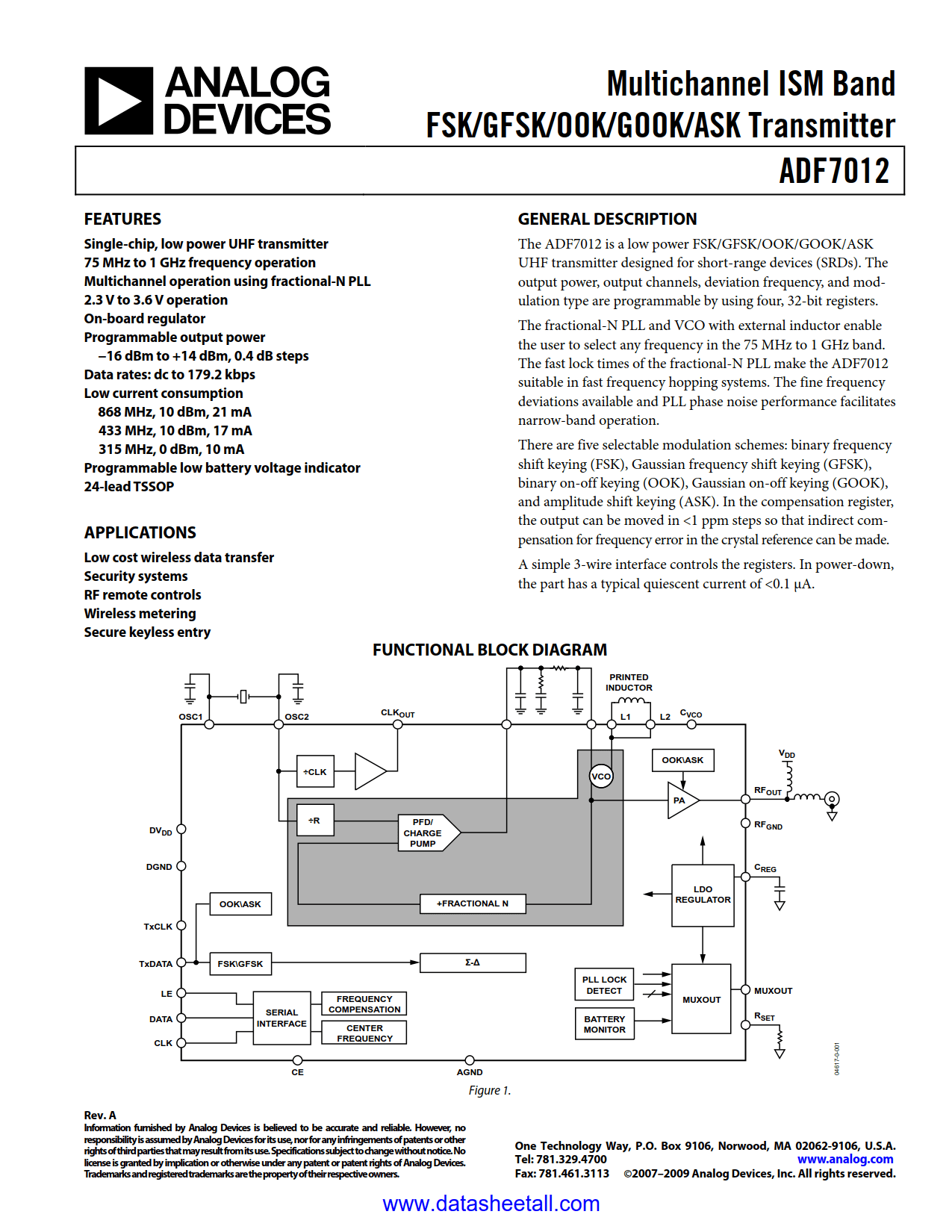

ADF7012 Datasheet

• Single-chip, low power UHF transmitter
• 75 MHz to 1 GHz frequency operation
• Multichannel operation using fractional-N PLL
• 2.3 V to 3.6 V operation
• On-board regulator
• Programmable output power
  −16 dBm to +14 dBm, 0.4 dB steps
• Data rates: dc to 179.2 kbps
• Low current consumption
  868 MHz, 10 dBm, 21 mA
  433 MHz, 10 dBm, 17 mA
  315 MHz, 0 dBm, 10 mA
• Programmable low battery voltage indicator
• 24-lead TSSOP

• Low cost wireless data transfer
• Security systems
• RF remote controls
• Wireless metering
• Secure keyless entry

The ADF7012 is a low power FSK/GFSK/OOK/GOOK/ASK UHF transmitter designed for short-range devices (SRDs). The output power, output channels, deviation frequency, and modulation type are programmable by using four, 32-bit registers.

The fractional-N PLL and VCO with external inductor enable the user to select any frequency in the 75 MHz to 1 GHz band. The fast lock times of the fractional-N PLL make the ADF7012 suitable in fast frequency hopping systems. The fine frequency deviations available and PLL phase noise performance facilitates narrow-band operation.

There are five selectable modulation schemes: binary frequency shift keying (FSK), Gaussian frequency shift keying (GFSK), binary on-off keying (OOK), Gaussian on-off keying (GOOK), and amplitude shift keying (ASK). In the compensation register, the output can be moved in <1 ppm steps so that indirect compensation for frequency error in the crystal reference can be made.

A simple 3-wire interface controls the registers. In power-down, the part has a typical quiescent current of <0.1 μA.
