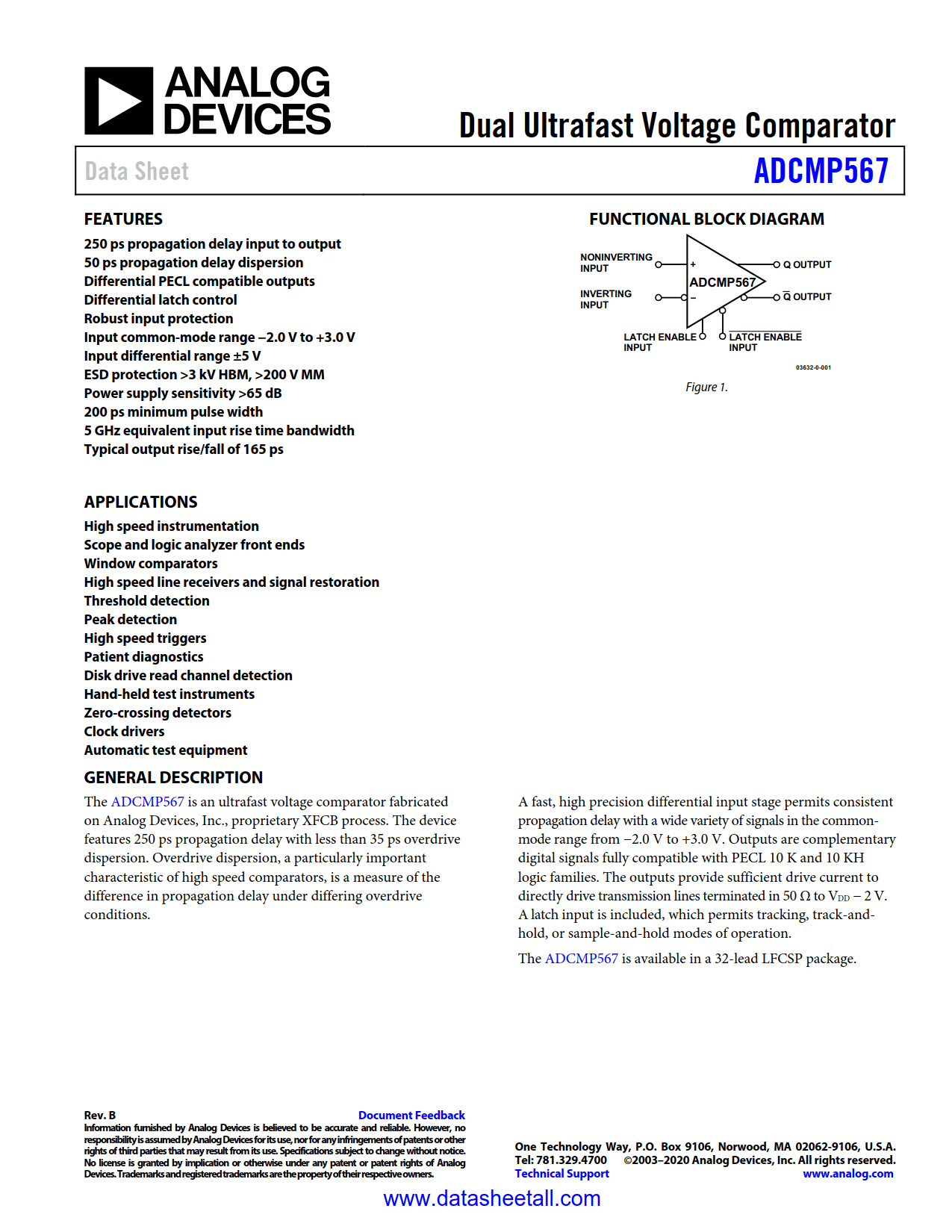

ADCMP567 Datasheet

• 250 ps propagation delay input to output
• 50 ps propagation delay dispersion
• Differential PECL compatible outputs
• Differential latch control
• Robust input protection
• Input common-mode range −2.0 V to ±3.0 V
• Input differential range ±5 V
• See datasheet for additional features

• High speed instrumentation
• Scope and logic analyzer front ends Window comparators
• High speed line receivers and signal restoration
• Threshold detection
• Peak detection
• High speed triggers
• Patient diagnostics
• Disk drive read channel detection
• Hand-held test instruments Zero-crossing detectors
• Clock drivers
• Automatic test equipment

The ADCMP567 is an ultrafast voltage comparator fabricated on Analog Devices, Inc., proprietary XFCB process. The device features 250 ps propagation delay with less than 35 ps overdrive dispersion. Overdrive dispersion, a particularly important characteristic of high speed comparators, is a measure of the difference in propagation delay under differing overdrive conditions.

A fast, high precision differential input stage permits consistent propagation delay with a wide variety of signals in the common-mode range from −2.0 V to +3.0 V. Outputs are complementary digital signals fully compatible with PECL 10 K and 10 KH logic families. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50 Ω to V_DD − 2 V. A latch input is included, which permits tracking, track-and-hold, or sample-and-hold modes of operation.

The ADCMP567 is available in a 32-lead LFCSP package.
