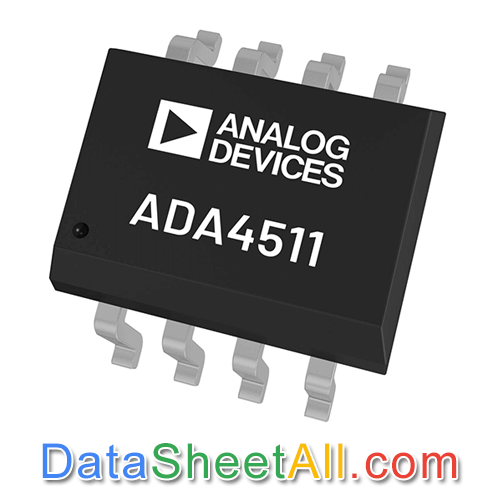

ADA4511-2 Datasheet

• Low-offset voltage drift: ±2 μV/°C maximum
• Low-offset voltage: ±75 μV maximum
• Low voltage noise: 1 μV p-p from 0.1 Hz to 10 Hz typical
• Low voltage noise density: 5 nV/√Hz typical at f = 1 kHz
• High common-mode rejection: 140 dB typical
• Low input bias current: ±10 pA maximum
• Wide gain bandwidth product: 10.4 MHz typical
• High slew rate: 19 V/μs typical
• Low THD: −134 dB at f = 1 kHz
• Low quiescent supply current: 1.45 mA per amplifier typical
• Wide supply voltage operation: 6 V to 40 V, ±3 V to ±20 V
• Integrated EMI filter
• Multiplexer compatible inputs
  • Rail-to-rail high impedance inputs: differential and common-mode
  • Fast settling time
• Rail-to-rail output
• No phase reversal
• Heavy capacitive load drive capability: 1 nF
• Wide specified temperature range: −40°C to +125°C
• Available in 8-lead standard small outline package (SOIC_N)

• Data acquisition systems
• Multiplexed input signal chains
• Industrial automation
• Medical instruments
• Electronic test and measurement
• Precision current measurement
• Photodiode amplifiers

The ADA4511-2 is a dual-channel, 40 V, high precision, low-input bias current, low-offset voltage, low-offset voltage drift, low noise, rail-to-rail input and output operational amplifier (op amp) that can be used at any point of the signal chain, which includes sensing, conditioning, and output drive. Through trimming, the ADA4511-2 achieves low offset drift (±0.4 μV/°C typical, ±2 μV/°C maximum) and low offset voltage (±25 μV typical, ±75 μV maximum).

The ADA4511-2 delivers top DC accuracy and AC precision, which makes it suitable for a wide variety of signal chain applications. By integrating a robust mux-compatible architecture, the ADA4511-2 effectively solves common system distortion and settling problems and provides the superior accuracy required in multiplexed multichannel precision signal chains. The ADA4511-2 is specified from −40°C to +125°C and is available in an 8-lead, SOIC_N package.
