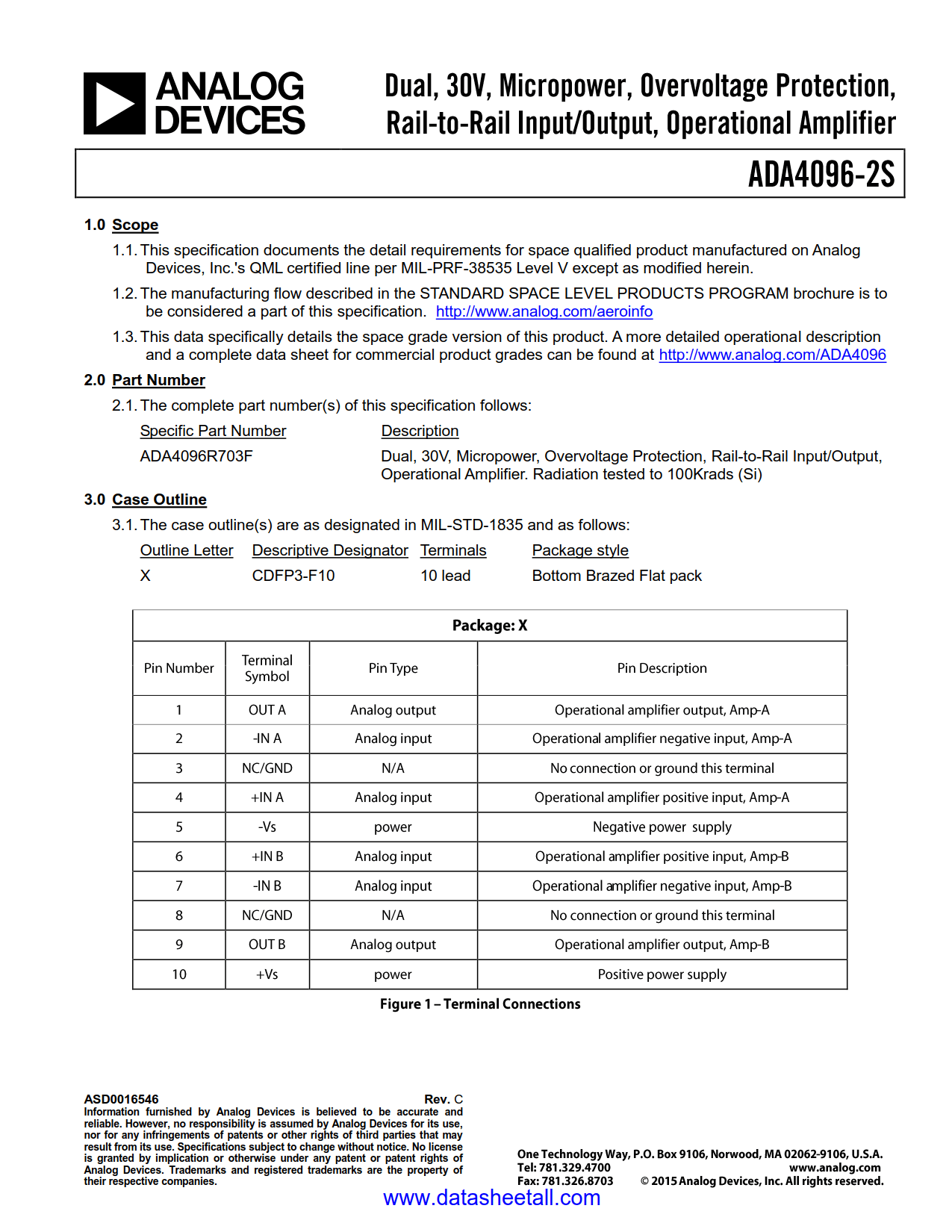

ADA4096-2S Datasheet

• Input overvoltage protection, 32 V above and below the supply rails
• Low power: 60 μA per amplifier typical
• Unity-gain bandwidth
  800 kHz typ @ V_SY = ±15 V
  550 kHz typ @ V_SY = ±5 V
  465 kHz typ @ V_SY = ±1.5 V
• Single-supply operation: 3 V to 30 V
• Low offset voltage: 300 µV maximum
• Large signal voltage gain: 120 dB typical
• Unity-gain stable
• No phase reversal for input voltage up to ±32 V beyond the power supply
• Rail-to-rail input and output swing

The ADA4096-2S dual operational amplifier features micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from 3 V to 30 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 27 nV/√Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.

The ADA4096-2S has overvoltage protection inputs and diodes that allow the voltage input to extend 32 V above and below the supply rails, making this device ideal for robust industrial applications. The ADA4096-2S features a unique input stage that allows the input voltage to exceed either supply safely without any phase reversal or latch-up; this is called overvoltage protection, or OVP.
