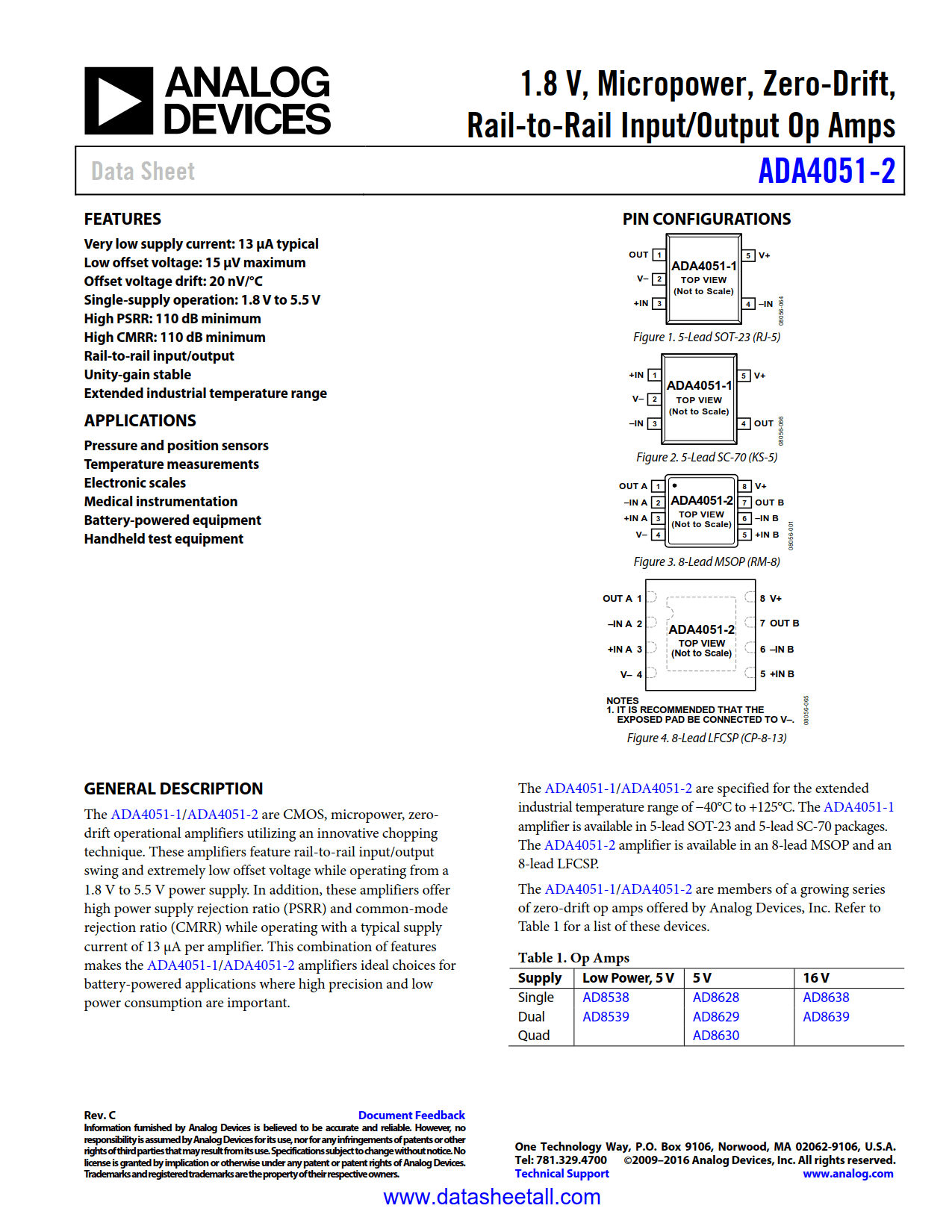

ADA4051-2 Datasheet

• Very low supply current: 13 μA typical
• Low offset voltage: 15 μV maximum
• Offset voltage drift: 20 nV/°C
• Single-supply operation: 1.8 V to 5.5 V
• High PSRR: 110 dB minimum
• High CMRR: 110 dB minimum
• Rail-to-rail input/output
• Unity-gain stable
• Extended industrial temperature range

• Pressure and position sensors
• Temperature measurements
• Electronic scales
• Medical instrumentation
• Battery-powered equipment
• Handheld test equipment

The ADA4051-2 are CMOS, micropower, zerodrift operational amplifiers utilizing an innovative chopping technique. These amplifiers feature rail-to-rail input/output swing and extremely low offset voltage while operating from a 1.8 V to 5.5 V power supply. In addition, these amplifiers offer high power supply rejection ratio (PSRR) and common-mode rejection ratio (CMRR) while operating with a typical supply current of 13 μA per amplifier. This combination of features makes the ADA4051-2 amplifiers ideal choices for battery-powered applications where high precision and low power consumption are important.

The ADA4051-2 are specified for the extended industrial temperature range of −40°C to +125°C. The ADA4051-2 amplifier is available in an 8-lead MSOP and an 8-lead LFCSP.

The ADA4051-2 are members of a growing series of zero-drift op amps offered by Analog Devices, Inc.
