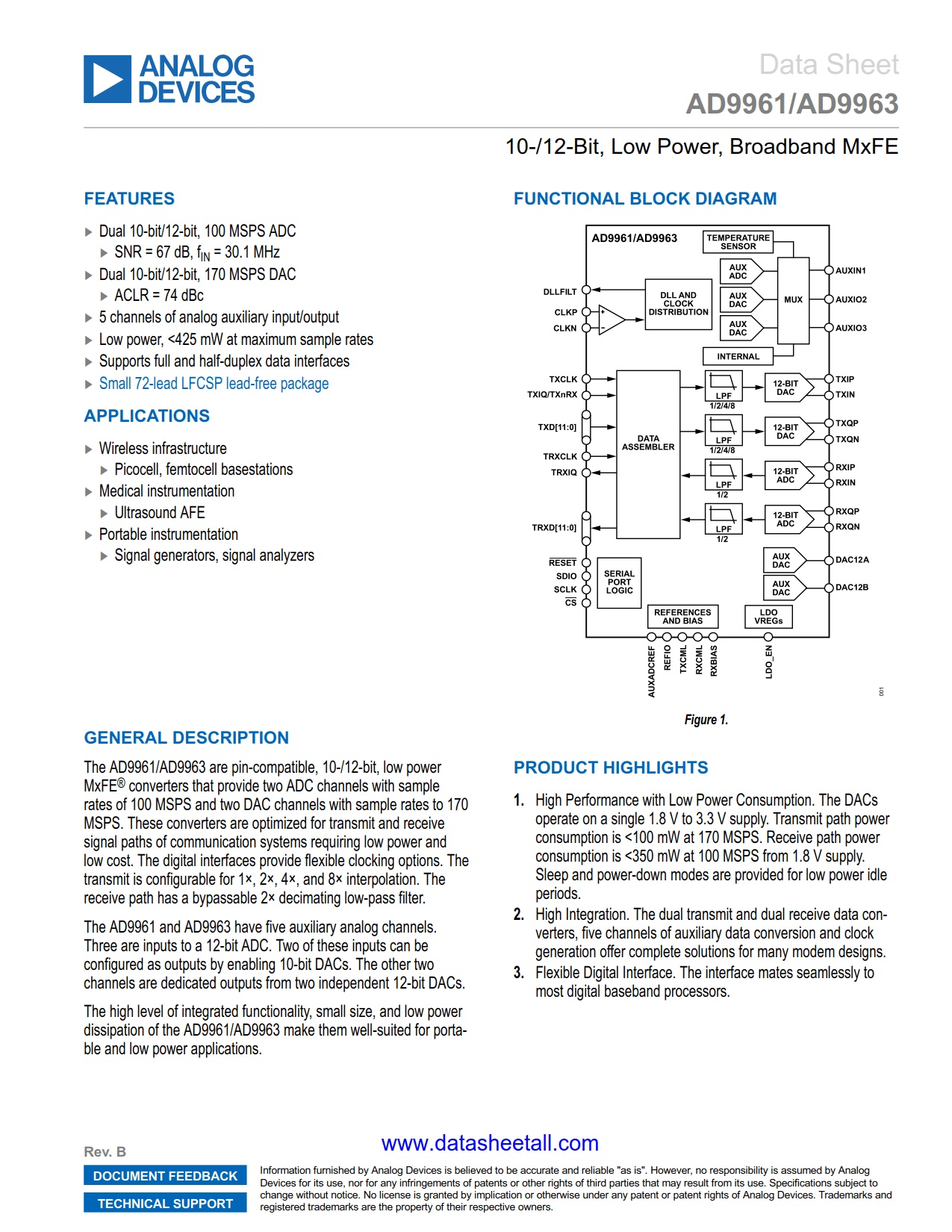

AD9963 Datasheet

• Dual 12-bit, 100 MSPS ADC SNR = 67 dB, f_IN = 30.1 MHz
• Dual 12-bit, 170 MSPS DAC ACLR = 74 dBc
• 5 channels of analog auxiliary input/output
• Low power, <425 mW at maximum sample rates
• Supports full and half-duplex data interfaces
• Small 72-lead LFCSP lead-free package

• Wireless infrastructure Picocell, femtocell basestations
• Medical instrumentation Ultrasound AFE
• Portable instrumentation Signal generators, signal analyzers

The AD9963 are pin-compatible, 12-bit, low power MxFE^® converters that provide two ADC channels with sample rates of 100 MSPS and two DAC channels with sample rates to 170 MSPS. These converters are optimized for transmit and receive signal paths of communication systems requiring low power and low cost. The digital interfaces provide flexible clocking options. The transmit is configurable for 1×, 2×, 4×, and 8× interpolation. The receive path has a bypassable 2× decimating low-pass filter.

The AD9963 have five auxiliary analog channels. Three are inputs to a 12-bit ADC. Two of these inputs can be configured as outputs by enabling 10-bit DACs. The other two channels are dedicated outputs from two independent 12-bit DACs.

The high level of integrated functionality, small size, and low power dissipation of the AD9963 make them well- suited for portable and low power applications.
