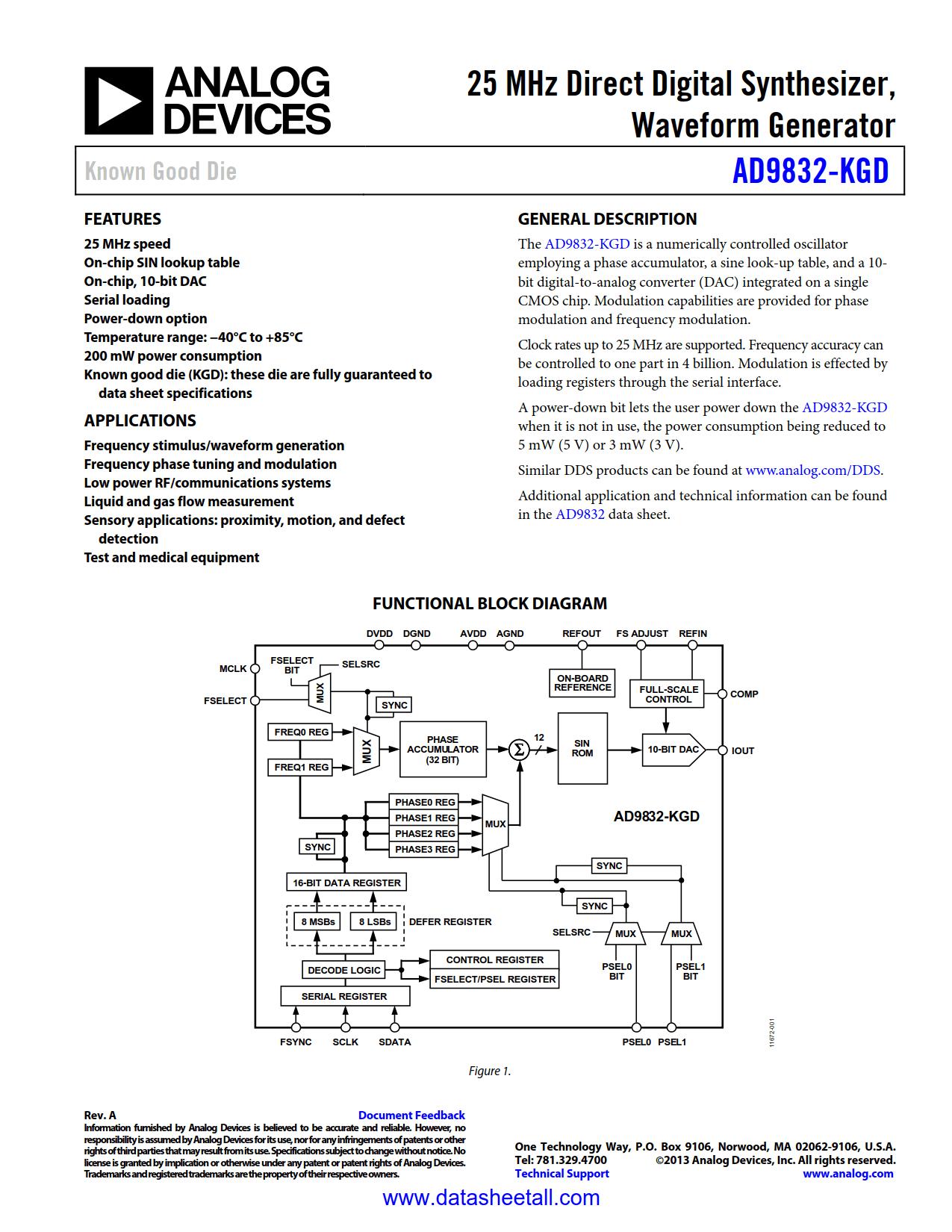

AD9832-KGD Datasheet

• 25 MHz speed
• On-chip SIN lookup table
• On-chip, 10-bit DAC
• Serial loading
• Power-down option
• Temperature range: −40°C to +85°C
• 200 mW power consumption
• Known good die (KGD): these die are fully guaranteed to data sheet specifications

• Frequency stimulus/waveform generation
• Frequency phase tuning and modulation
• Low power RF/communications systems
• Liquid and gas flow measurement
• Sensory applications: proximity, motion, and defect detection
• Test and medical equipment

The AD9832-KGD is a numerically controlled oscillator employing a phase accumulator, a sine look-up table, and a 10-bit digital-to-analog converter (DAC) integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation.

Clock rates up to 25 MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation is effected by loading registers through the serial interface.

A power-down bit lets the user power down the AD9832-KGD when it is not in use, the power consumption being reduced to 5 mW (5 V) or 3 mW (3 V).

Similar DDS products can be found at DDS.

Additional application and technical information can be found in the AD9832 data sheet.
