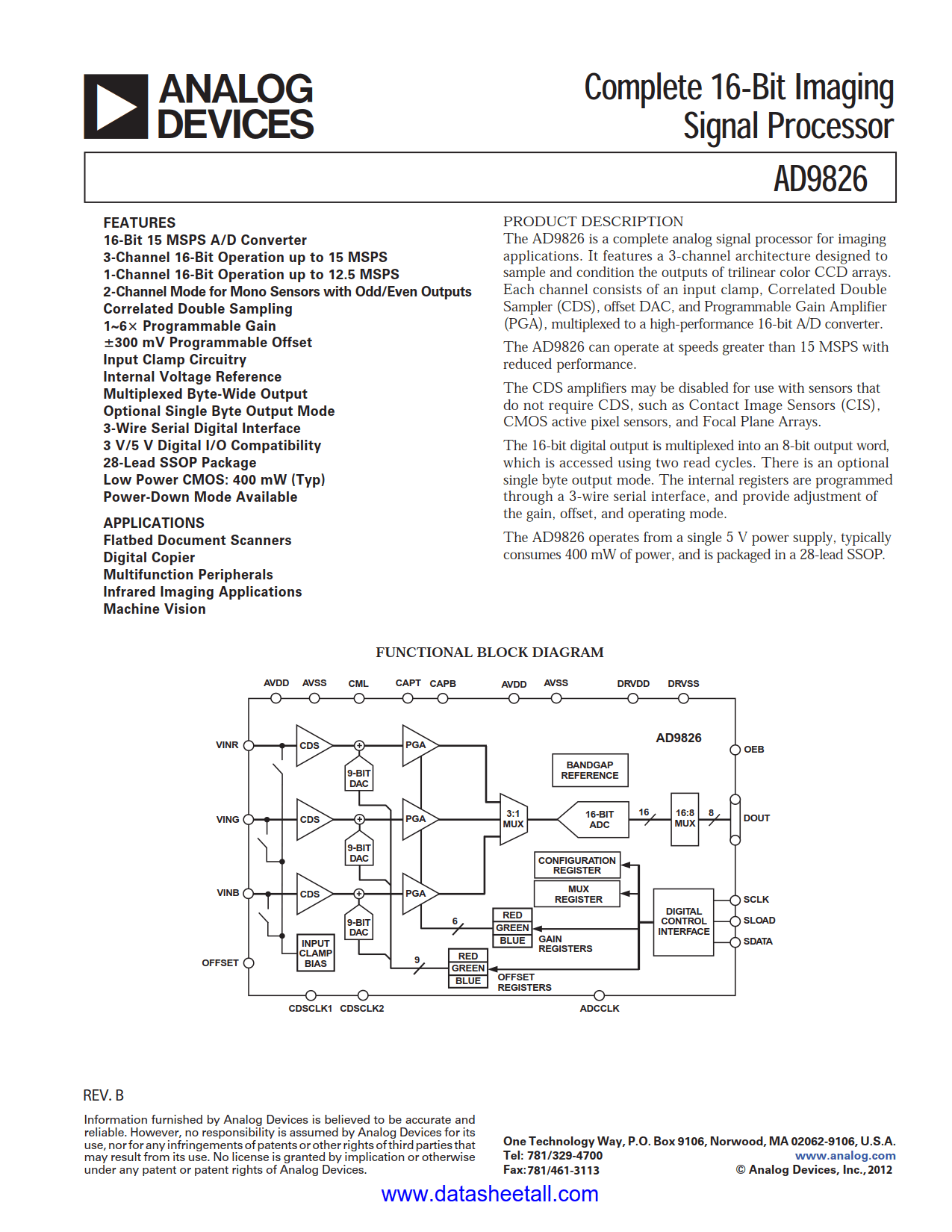

AD9826 Datasheet

Part No.	In Stock	Price	Packaging	SPQ	Marking	MSL	Pins	Temp Range	Package Description
AD9826KRSZ	0	$14.949	Tube	47	AD9826K	1	28	-40°C ~ 85°C	28-Lead-SSOP
AD9826KRSZRL	1500pcs	$14.949	Reel	1500	AD9826K	1	28	-40°C ~ 85°C	28-Lead-SSOP

• 16-Bit 15 MSPS A/D Converter
• 3-Channel 16-Bit Operation up to 15 MSPS
• 1-Channel 16-Bit Operation up to 12.5 MSPS
• 2-Channel Mode for Mono Sensors with Odd/Even Outputs
• Correlated Double Sampling
• 1~6x Programmable Gain
• ±300 mV Programmable Offset
• Input Clamp Circuitry
• Internal Voltage Reference
• Multiplexed Byte-Wide Output
• Optional Single Byte Output Mode
• 3-Wire Serial Digital Interface

• Flatbed Document Scanners
• Digital Copier
• Multifunction Peripherals
• Infrared Imaging Applications
• Machine Vision

The AD9826 is a complete analog signal processor for imaging applications. It features a 3-channel architecture designed to sample and condition the outputs of trilinear color CCD arrays. Each channel consists of an input clamp, Correlated Double Sampler (CDS), offset DAC, and Programmable Gain Amplifier (PGA), multiplexed to a high-performance 16-bit A/D converter.
