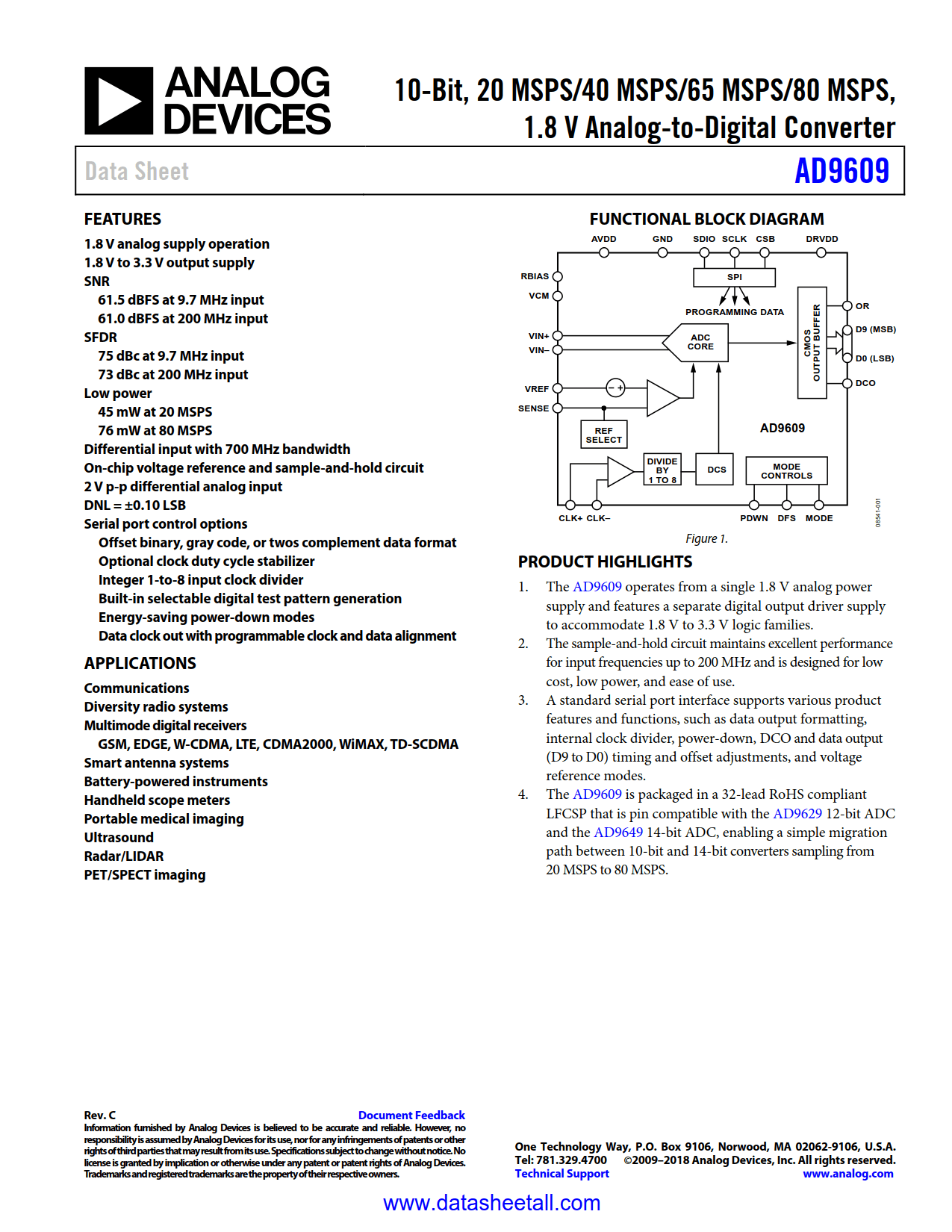

AD9609 Datasheet

• 1.8 V analog supply operation
• 1.8 V to 3.3 V output supply
• SNR
  • 61.5 dBFS at 9.7 MHz input
  • 61.0 dBFS at 200 MHz input
• SFDR
  • 75 dBc at 9.7 MHz input
  • 73 dBc at 200 MHz input
• Low power
  • 45 mW at 20 MSPS
  • 76 mW at 80 MSPS
• Differential input with 700 MHz bandwidth
• On-chip voltage reference and sample-and-hold circuit
• 2 V p-p differential analog input
• DNL = ±0.10 LSB
• Serial port control options
  • Offset binary, gray code, or twos complement data format
  • Optional clock duty cycle stabilizer
  • Integer 1-to-8 input clock divider
  • Built-in selectable digital test pattern generation
  • Energy-saving power-down modes
  • Data clock out with programmable clock and data alignment

• Communications
• Diversity radio systems
• Multimode digital receivers
• GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA
• Smart antenna systems
• Battery-powered instruments
• Handheld scope meters
• Portable medical imaging
• Ultrasound
• Radar/LIDAR
• PET/SPECT imaging

The AD9609 is a monolithic, single channel 1.8 V supply, 10-bit, 20/40/65/80 MSPS analog-to-digital converter (ADC). It features a high performance sample-and-hold circuit and on-chip voltage reference.

The product uses multistage differential pipeline architecture with output error correction logic to provide 10-bit accuracy at 80 MSPS data rates and to guarantee no missing codes over the full operating temperature range.

The ADC contains several features designed to maximize flexibility and minimize system cost, such as programmable clock and data alignment and programmable digital test pattern generation. The available digital test patterns include built-in deterministic and pseudorandom patterns, along with custom user-defined test patterns entered via the serial port interface (SPI).

A differential clock input with selectable internal 1 to 8 divide ratio controls all internal conversion cycles. An optional duty cycle stabilizer (DCS) compensates for wide variations in the clock duty cycle while maintaining excellent overall ADC performance.

The digital output data is presented in offset binary, gray code, or twos complement format. A data output clock (DCO) is provided to ensure proper latch timing with receiving logic. Both 1.8 V and 3.3 V CMOS levels are supported.

The AD9609 is available in a 32-lead RoHS-compliant LFCSP and is specified over the industrial temperature range (−40°C to +85°C).

PRODUCT HIGHLIGHTS

1. The AD9609 operates from a single 1.8 V analog power supply and features a separate digital output driver supply to accommodate 1.8 V to 3.3 V logic families.
2. The sample-and-hold circuit maintains excellent performance for input frequencies up to 200 MHz and is designed for low cost, low power, and ease of use.
3. A standard serial port interface supports various product features and functions, such as data output formatting, internal clock divider, power-down, DCO and data output (D9 to D0) timing and offset adjustments, and voltage reference modes.
4. The AD9609 is packaged in a 32-lead RoHS compliant LFCSP that is pin compatible with the AD9629 12-bit ADC and the AD9649 14-bit ADC, enabling a simple migration path between 10-bit and 14-bit converters sampling from 20 MSPS to 80 MSPS.
