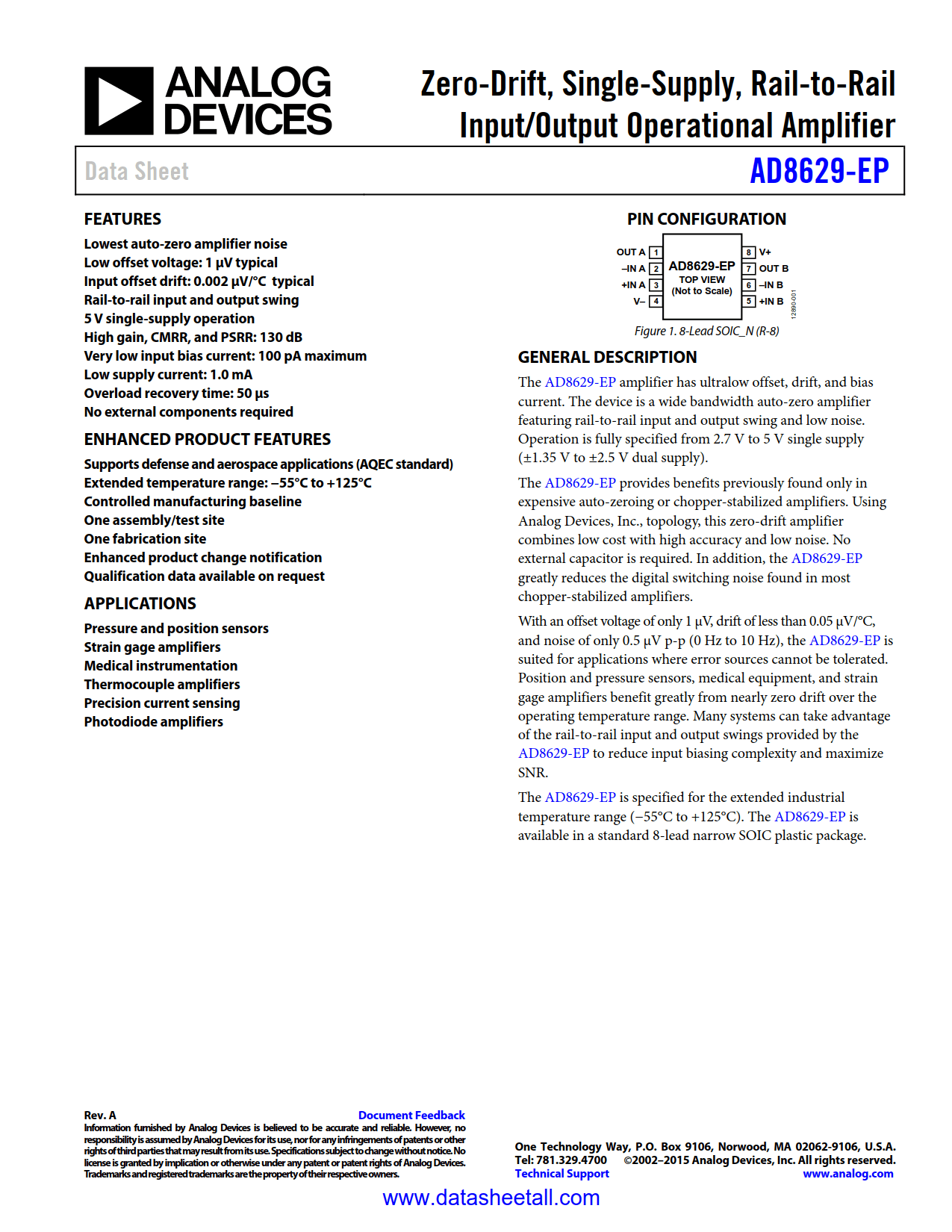

AD8629-EP Datasheet

• Lowest auto-zero amplifier noise
• Low offset voltage: 1 μV typical
• Input offset drift: 0.002 μV/°C typical
• Rail-to-rail input and output swing
• 5 V single-supply operation
• High gain, CMRR, and PSRR: 130 dB
• Very low input bias current: 100 pA maximum
• Low supply current: 1.0 mA
• Overload recovery time: 50 μs
• No external components required

• Supports defense and aerospace applications (AQEC standard)
• Extended temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• Pressure and position sensors
• Strain gage amplifiers
• Medical instrumentation
• Thermocouple amplifiers
• Precision current sensing
• Photodiode amplifiers

The AD8629-EP amplifier has ultralow offset, drift, and bias current. The device is a wide bandwidth auto-zero amplifier featuring rail-to-rail input and output swing and low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply).

The AD8629-EP provides benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc., topology, this zero-drift amplifier combines low cost with high accuracy and low noise. No external capacitor is required. In addition, the AD8629-EP greatly reduces the digital switching noise found in most chopper-stabilized amplifiers.

With an offset voltage of only 1 μV, drift of less than 0.05 μV/°C, and noise of only 0.5 μV p-p (0 Hz to 10 Hz), the AD8629-EP is suited for applications where error sources cannot be tolerated. Position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over the operating temperature range. Many systems can take advantage of the rail-to-rail input and output swings provided by the AD8629-EP to reduce input biasing complexity and maximize SNR.

The AD8629-EP is specified for the extended industrial temperature range (−55°C to +125°C). The AD8629-EP is available in a standard 8-lead narrow SOIC plastic package.
