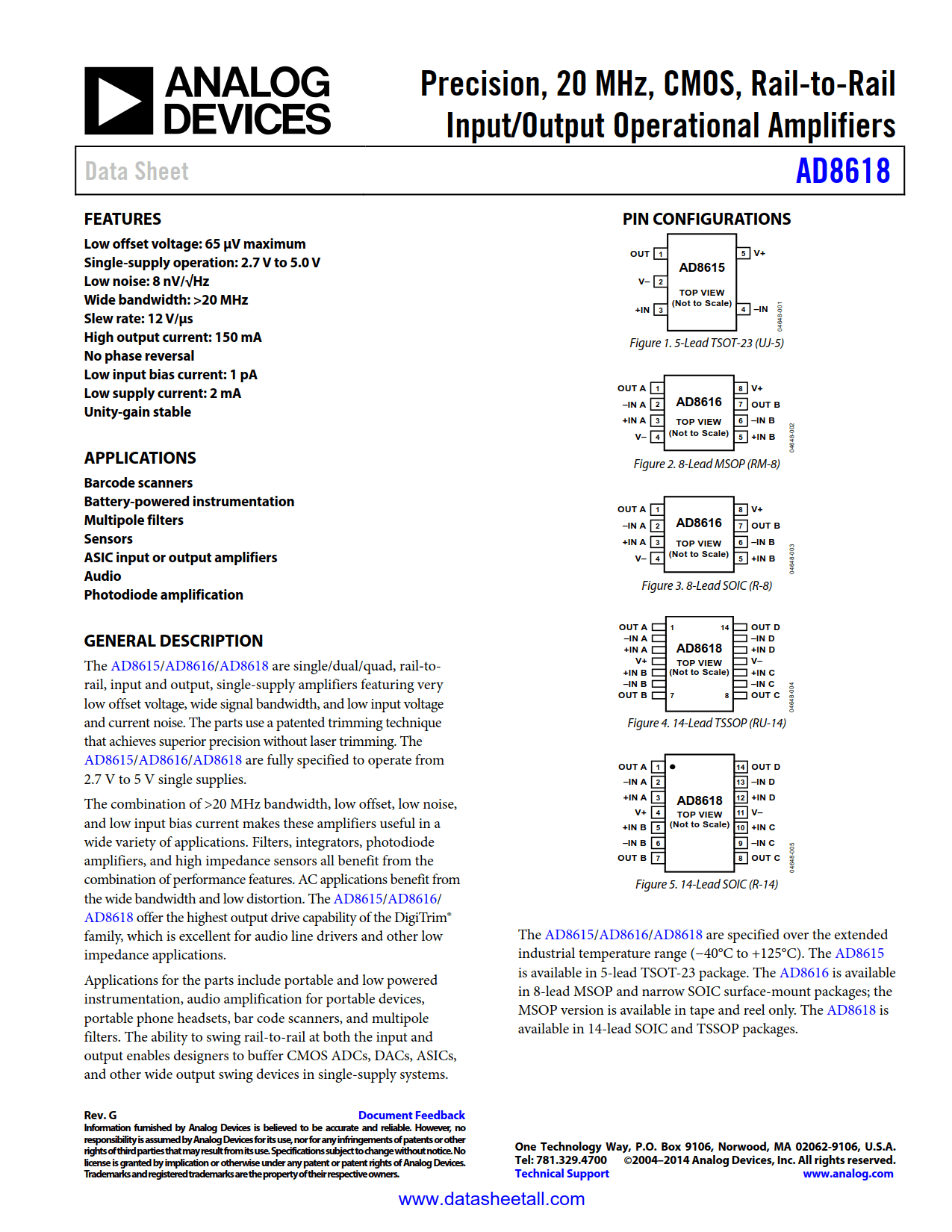

AD8618 Datasheet
Precision 20 MHz CMOS Quad Rail-to-Rail Operational Amplifier
Precision 20 MHz CMOS Quad Rail-to-Rail Operational Amplifier
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| AD8618ARUZ | 0 | $3.636 | Tube | 96 | AD8618A | 1 | 14 | -40°C ~ 125°C | 14-Lead TSSOP |
| AD8618ARUZ-REEL | 2500pcs | $3.636 | Reel | 2500 | AD8618A | 1 | 14 | -40°C ~ 125°C | 14-Lead TSSOP |
| AD8618ARZ | 0 | $3.636 | Tube | 56 | AD8618ARZ | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC |
| AD8618ARZ-REEL | 0 | $3.636 | Reel | 2500 | AD8618ARZ | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC |
| AD8618ARZ-REEL7 | 1000pcs | $3.636 | Reel | 1000 | AD8618ARZ | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC |
The AD8618 is quad rail-to-rail input and output single supply amplifiers featuring very low offset voltage, wide signal bandwidth, and low input voltage and current noise. These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. All are fully specified to operate from +2.7 V to +5 V single supply.
The combination of low offsets, low noise, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, photo-diode amplifiers and high impedance sensors all benefit from the combination of performance features. Audio and other AC applications benefit from the wide bandwidth and low distortion.
