AD8606 Datasheet
Precision, Low Noise, RRIO, CMOS Op Amp (Dual)
Precision, Low Noise, RRIO, CMOS Op Amp (Dual)
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| AD8606ACBZ-REEL | 0 | - | Reel | 10000 | B6A | 1 | 8 | -40°C ~ 125°C | 8-Ball WLCSP |
| AD8606ACBZ-REEL7 | 7112pcs | - | Reel | 3000 | B6A | 1 | 8 | -40°C ~ 125°C | 8-Ball WLCSP |
| AD8606ARMZ-R2 | 0 | - | Reel | 250 | B6A | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP |
| AD8606ARMZ-R7 | 84417pcs | - | Reel | 1000 | B6A | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP |
| AD8606ARMZ-REEL | 9508pcs | - | Reel | 3000 | B6A | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP |
| AD8606ARZ | 117pcs | - | Tube | 98 | AD8606A | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |
| AD8606ARZ-REEL | 2500pcs | - | Reel | 2500 | AD8606A | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |
| AD8606ARZ-REEL7 | 3387pcs | - | Reel | 1000 | AD8606A | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC |

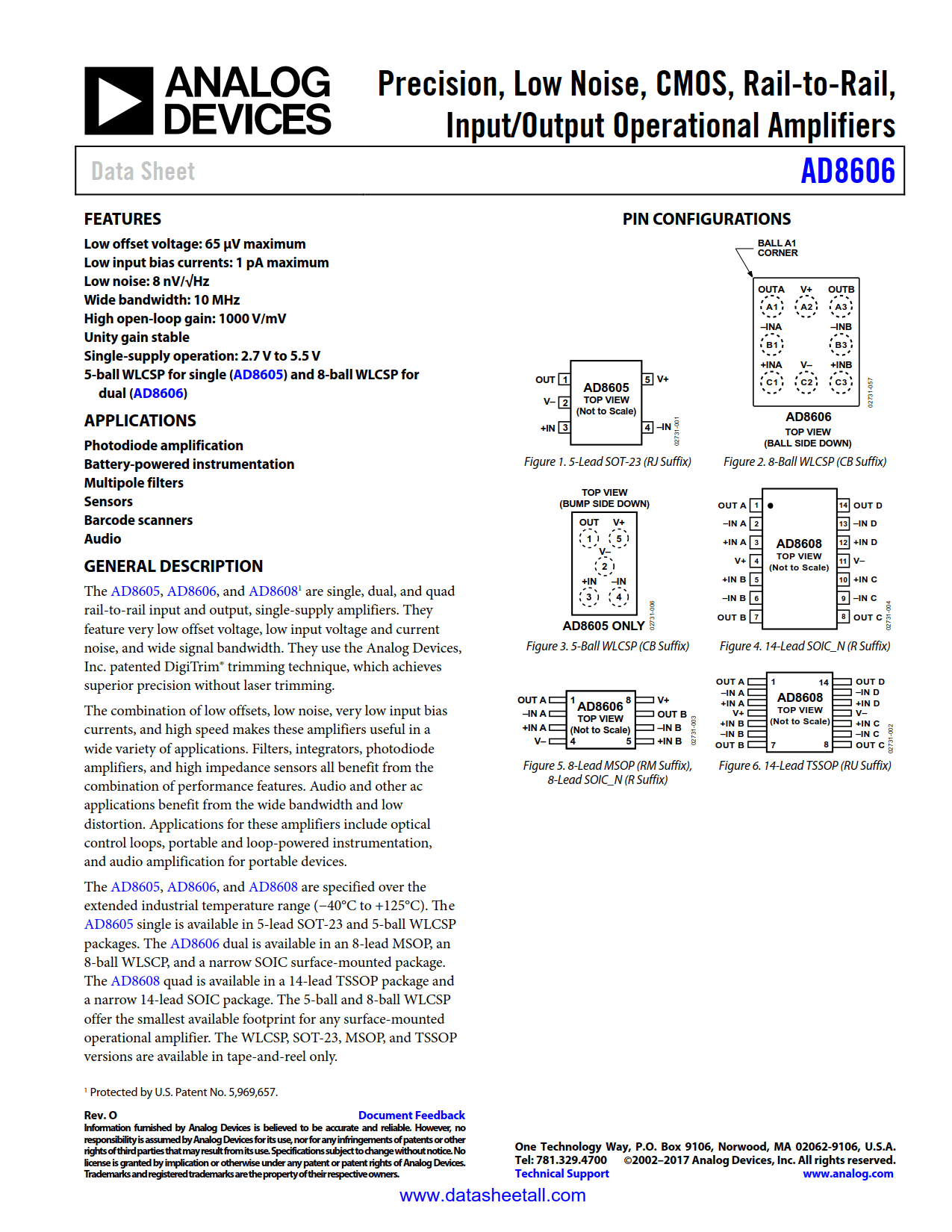

The AD8606 are dual rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc. patented DigiTrim® trimming technique, which achieves superior precision without laser trimming.
The combination of low offsets, low noise, very low input bias currents, and high speed makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. Applications for these amplifiers include optical control loops, portable and loop-powered instrumentation, and audio amplification for portable devices.
The AD8606 are specified over the extended industrial temperature range (−40°C to +125°C). The AD8606 dual is available in an 8-lead MSOP, an 8-ball WLSCP, and a narrow SOIC surface-mounted package. The 5-ball and 8-ball WLCSP offer the smallest available footprint for any surface-mounted operational amplifier. The WLCSP, SOT-23, MSOP, and TSSOP versions are available in tape-and-reel only.
