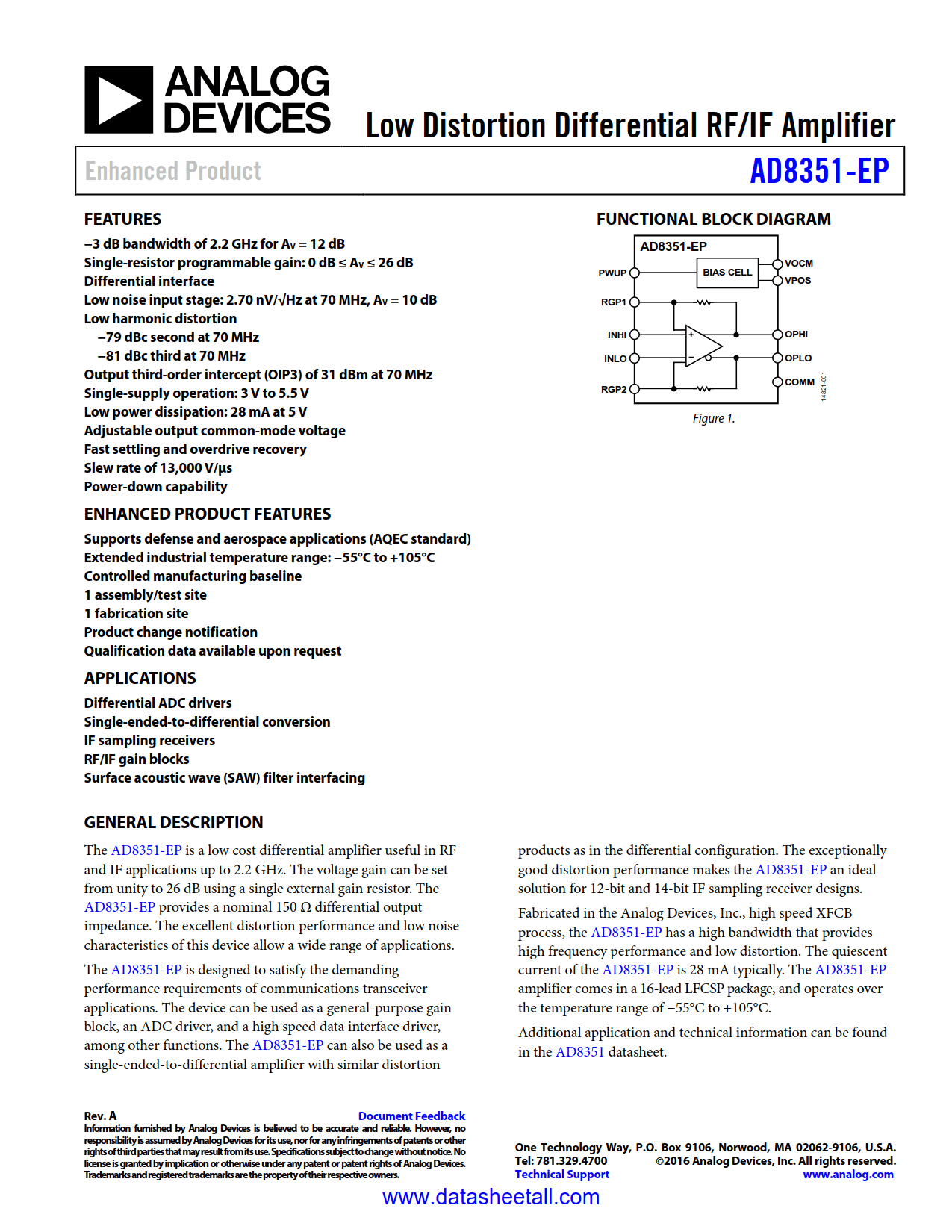

AD8351-EP Datasheet

• −3 dB bandwidth of 2.2 GHz for A_V = 12 dB
• Single-resistor programmable gain: 0 dB ≤ A_V ≤ 26 dB
• Differential interface
• Low noise input stage: 2.70 nV/√Hz at 70 MHz, A_V = 10 dB
• Low harmonic distortion
  • −79 dBc second at 70 MHz
  • −81 dBc third at 70 MHz
• Output third-order intercept (OIP3) of 31 dBm at 70 MHz
• Single-supply operation: 3 V to 5.5 V
• Low power dissipation: 28 mA at 5 V
• Adjustable output common-mode voltage
• Fast settling and overdrive recovery
• Slew rate of 13,000 V/µs
• Power-down capability

ENHANCED PRODUCT FEATURES

• Supports defense and aerospace applications (AQEC standard)
• Extended industrial temperature range: −55°C to +105°C
• Controlled manufacturing baseline
• 1 assembly/test site
• 1 fabrication site
• Product change notification
• Qualification data available upon request

• Differential ADC drivers
• Single-ended-to-differential conversion
• IF sampling receivers
• RF/IF gain blocks
• Surface acoustic wave (SAW) filter interfacing

The AD8351-EP is a low cost differential amplifier useful in RF and IF applications up to 2.2 GHz. The voltage gain can be set from unity to 26 dB using a single external gain resistor. The AD8351-EP provides a nominal 150 Ω differential output impedance. The excellent distortion performance and low noise characteristics of this device allow a wide range of applications.

The AD8351-EP is designed to satisfy the demanding performance requirements of communications transceiver applications. The device can be used as a general-purpose gain block, an ADC driver, and a high speed data interface driver,among other functions. The AD8351-EP can also be used as a single-ended-to-differential amplifier with similar distortion products as in the differential configuration. The exceptionally good distortion performance makes the AD8351-EP an ideal solution for 12-bit and 14-bit IF sampling receiver designs.

Fabricated in the Analog Devices, Inc., high speed XFCB process, the AD8351-EP has a high bandwidth that provides high frequency performance and low distortion. The quiescent current of the AD8351-EP is 28 mA typically. The AD8351-EP amplifier comes in a 16-lead LFCSP package, and operates over the temperature range of −55°C to +105°C.

Additional application and technical information can be found in the AD8351 datasheet.
