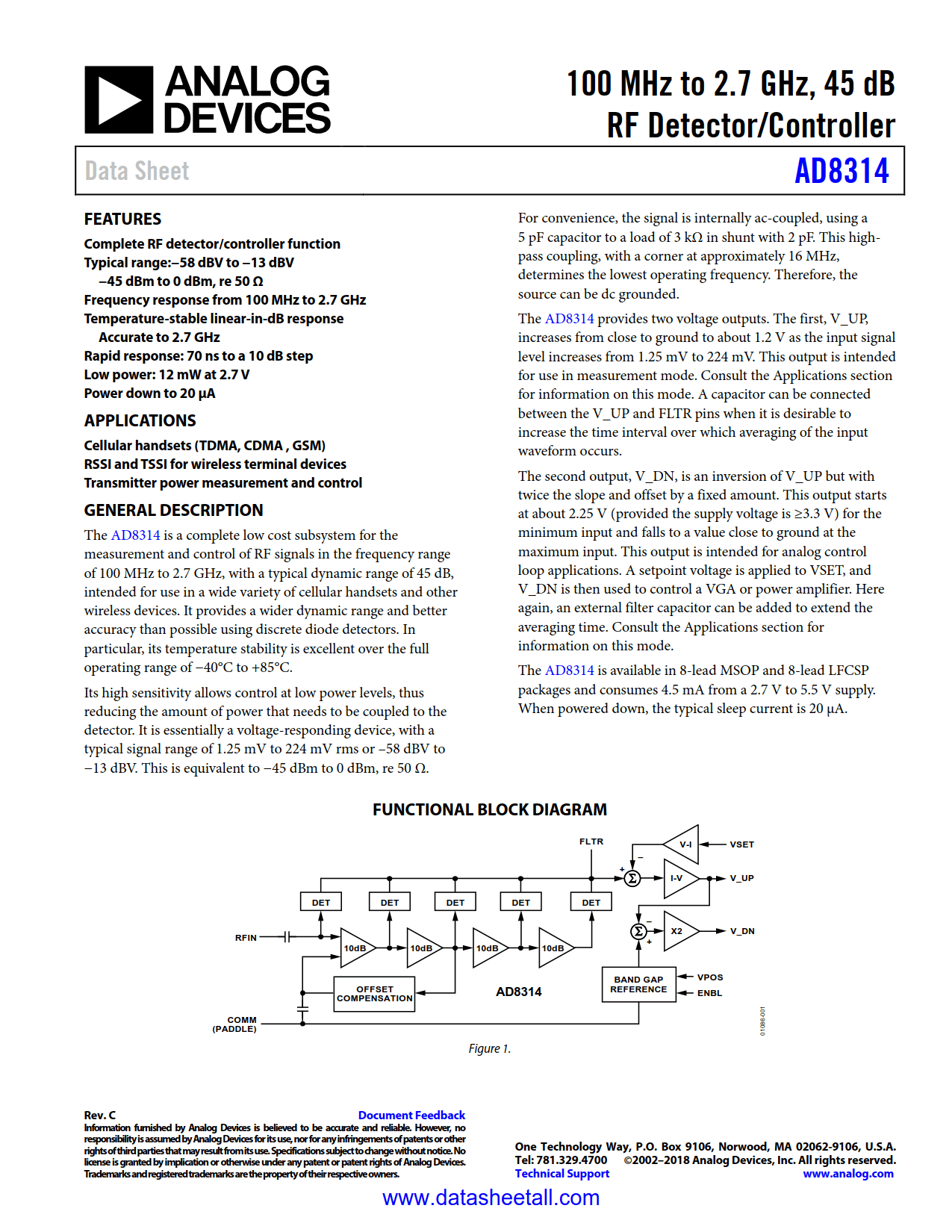

AD8314 Datasheet

• Complete RF detector/controller function
• Typical range –58 dBV to –13 dBV –45 dBm to 0 dBm, re 50 Ω
• Frequency response from 100 MHz to 2.7 GHz
• Rapid response: 70 ns to a 10 dB step
• Temperature-stable linear-in-dB response
  Accurate to 2.7 GHz
• Low power: 12 mW at 2.7 V
• Power-down to 20 µA

• Cellular handsets (TDMA, CDMA , GSM)
• RSSI and TSSI for wireless terminal devices
• Transmitter power measurement and control

The AD8314 is a complete low cost subsystem for the measurement and control of RF signals in the frequency range of 100 MHz to 2.7 GHz, with a typical dynamic range of 45 dB, intended for use in a wide variety of cellular handsets and other wireless devices. It provides a wider dynamic range and better accuracy than possible using discrete diode detectors. In particular, its temperature stability is excellent over the full operating range of -40°C to +85°C.

The AD8314 is available in 8-lead MSOP and 8-lead LFCSP packages and consumes 4.5 mA from a 2.7 V to 5.5 V supply. When powered down, the typical sleep current is 20 µA.

An evaluation board is available for this product and may be ordered using the following product number: AD8314-EVAL. Schematic and layout for this evaluation board is contained in the product datasheet.
