AD8227 Datasheet

Part No.	In Stock	Price	Packaging	SPQ	Marking	MSL	Pins	Temp Range	Package Description
AD8227ARMZ	430pcs	-	Tube	50	Y1S	1	8	-40°C ~ 125°C	8-Lead MSOP
AD8227ARMZ-R7	1000pcs	-	Reel	1000	Y1S	1	8	-40°C ~ 125°C	8-Lead MSOP
AD8227ARMZ-RL	0	-	Reel	3000	Y1S	1	8	-40°C ~ 125°C	8-Lead MSOP
AD8227ARZ	2143pcs	-	Tube	98	AD8227ARZ	1	8	-40°C ~ 125°C	8-Lead SOIC
AD8227ARZ-R7	960pcs	-	Reel	1000	AD8227ARZ	1	8	-40°C ~ 125°C	8-Lead SOIC
AD8227ARZ-RL	0	-	Reel	2500	AD8227ARZ	1	8	-40°C ~ 125°C	8-Lead SOIC
AD8227BRMZ	150pcs	-	Tube	50	Y1U	1	8	-40°C ~ 125°C	8-Lead MSOP
AD8227BRMZ-R7	1000pcs	-	Reel	1000	Y1U	1	8	-40°C ~ 125°C	8-Lead MSOP
AD8227BRMZ-RL	0	-	Reel	3000	Y1U	1	8	-40°C ~ 125°C	8-Lead MSOP
AD8227BRZ	8pcs	-	Tube	98	AD8227BRZ	1	8	-40°C ~ 125°C	8-Lead SOIC
AD8227BRZ-R7	6686pcs	-	Reel	1000	AD8227BRZ	1	8	-40°C ~ 125°C	8-Lead SOIC
AD8227BRZ-RL	0	-	Reel	2500	AD8227BRZ	1	8	-40°C ~ 125°C	8-Lead SOIC

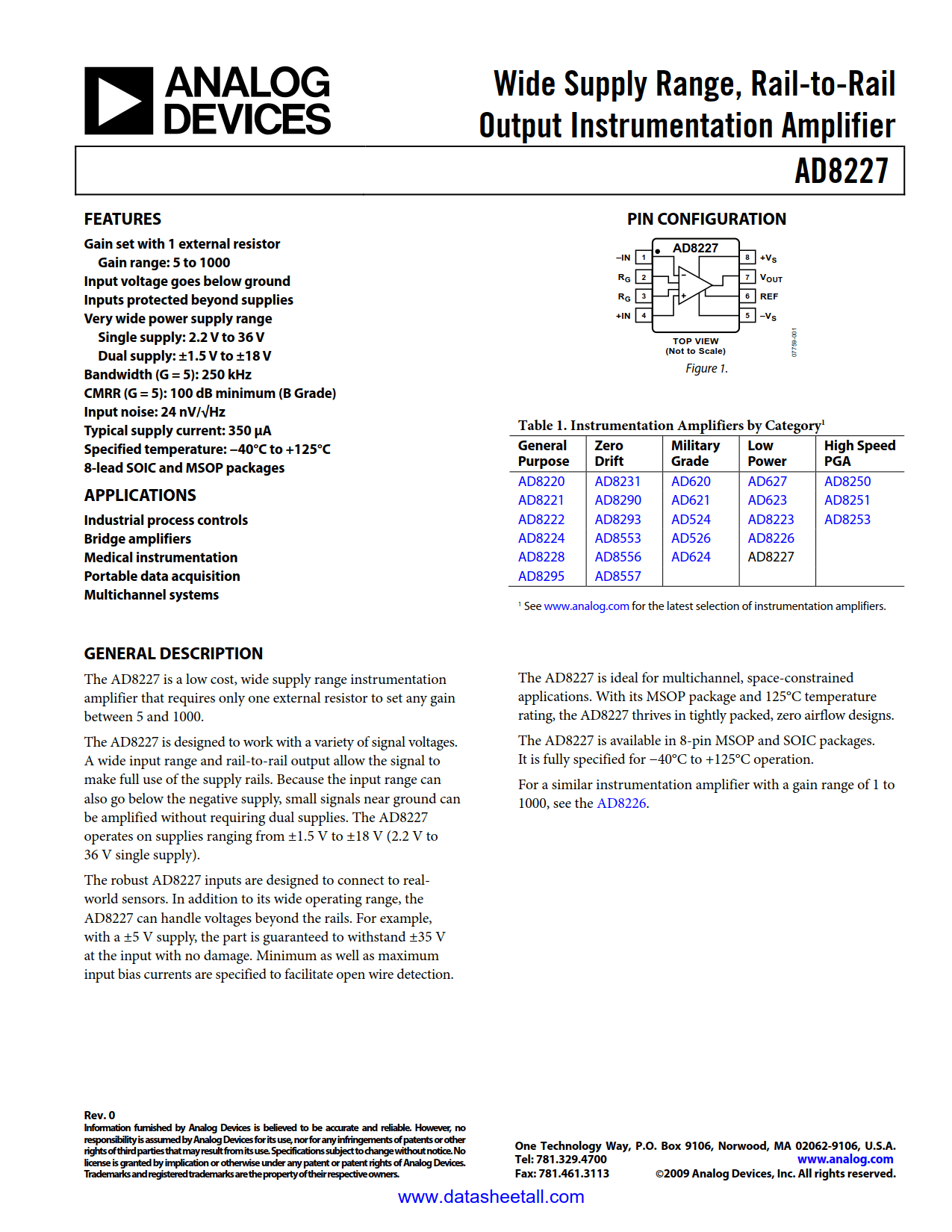

• Gain set with 1 external resistor
  Gain range: 5 to 1000
• Input voltage goes below ground
• Inputs protected beyond supplies
• Very wide power supply range
  Single supply: 2.2 V to 36 V
  Dual supply: ±1.5 V to ±18 V
• Bandwidth (G = 5): 250 kHz
• CMRR (G = 5): 100 dB minimum (B Grade)
• Input noise: 24 nV/√Hz
• Typical supply current: 350 μA
• Specified temperature: −40°C to +125°C
• 8-lead SOIC and MSOP packages

• Industrial process controls
• Bridge amplifiers
• Medical instrumentation
• Portable data acquisition
• Multichannel systems

The AD8227 is a low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain between 5 and 1000. The AD8227 is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output allow the signal to make full use of the supply rails. Because the input range can also go below the negative supply, small signals near ground can be amplified without requiring dual supplies. The AD8227 operates on supplies ranging from ±1.5 V to ±18 V (2.2 V to 36 V single supply).



The robust AD8227 inputs are designed to connect to real-world sensors. In addition to its wide operating range, the AD8227 can handle voltages beyond the rails. For example, with a ±5 V supply, the part is guaranteed to withstand ±35 V at the input with no damage. Minimum as well as maximum input bias currents are specified to facilitate open wire detection. The AD8227 is ideal for multichannel, space-constrained applications. With its MSOP package and 125°C temperature rating, the AD8227 thrives in tightly packed, zero airflow designs.

The AD8227 is available in 8-pin MSOP and SOIC packages. It is fully specified for −40°C to +125°C operation.

For a similar instrumentation amplifier with a gain range of 1 to 1000, see the AD8226.
