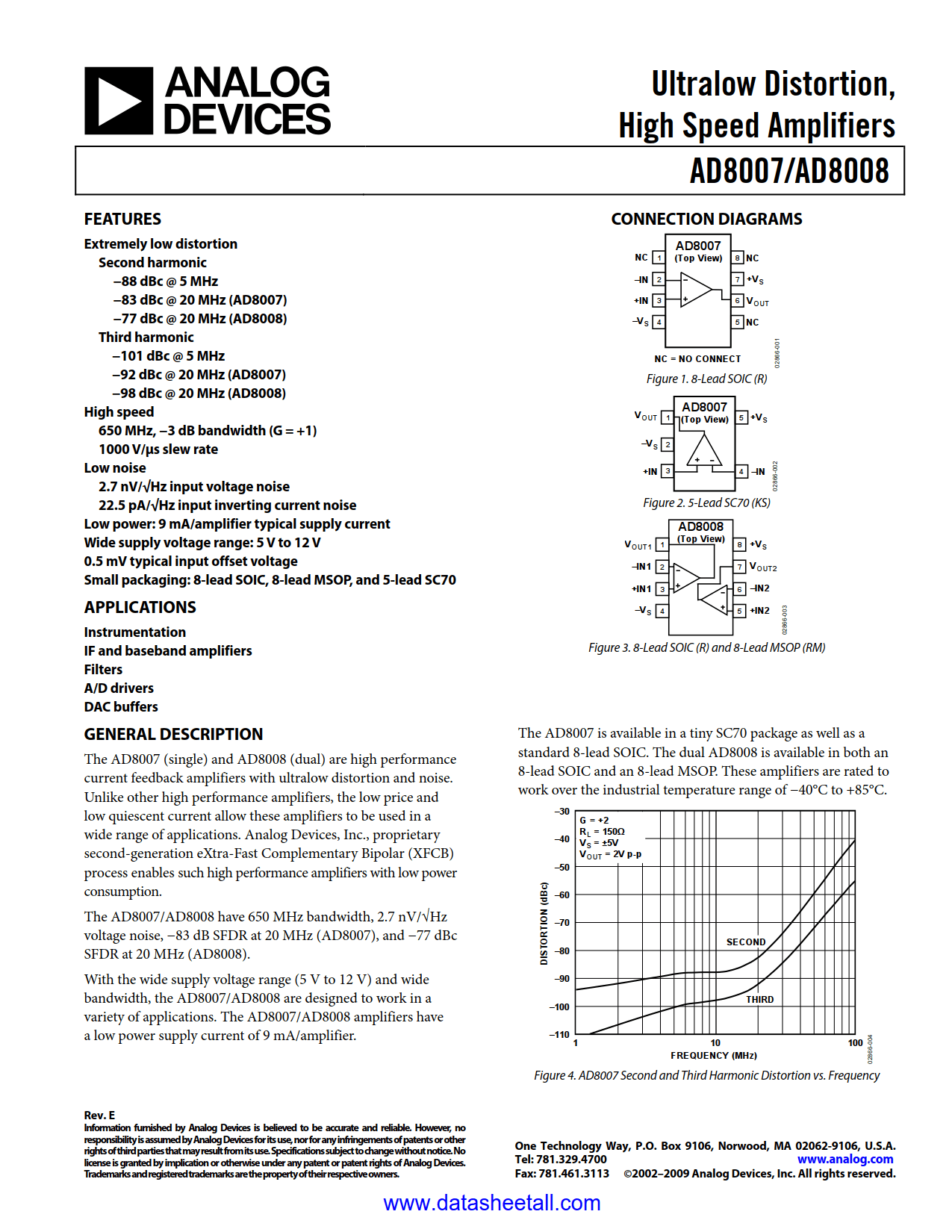

AD8008 Datasheet

• Extremely Low Distortion
  Second Harmonic
  -88 dBc @ 5 MHz
  −77 dBc @ 20 MHz (AD8008)
  Third Harmonic
  −101 dBc @ 5 MHz
  −98 dBc @ 20 MHz (AD8008)
• High Speed
  650 MHz, −3 dB bandwidth (G = +1)
  1000 V/μs slew rate
• Low noise
  2.7 nV/√Hz input voltage noise
  22.5 pA/√Hz input inverting current noise
• Low power: 9 mA/amplifier typical supply current
• Wide supply voltage range: 5 V to 12 V
• 0.5 mV typical input offset voltage
• Small packaging: 8-lead SOIC, 8-lead MSOP, and 5-lead SC70

• Instrumentation
• IF and baseband amplifiers
• Filters
• A/D drivers
• DAC buffers

The AD8008 (dual) are high performance current feedback amplifiers with ultralow distortion and noise. Unlike other high performance amplifiers, the low price and low quiescent current allow these amplifiers to be used in a wide range of applications. Analog Devices, Inc., proprietary second-generation eXtra-Fast Complementary Bipolar (XFCB) process enables such high performance amplifiers with low power consumption.

The AD8008 have 650 MHz bandwidth, 2.7 nV/√Hz voltage noise, −77 dBc SFDR at 20 MHz (AD8008).

With the wide supply voltage range (5 V to 12 V) and wide bandwidth, the AD8008 are designed to work in a variety of applications. The AD8008 amplifiers have a low power supply current of 9 mA/amplifier.

The dual AD8008 is available in both an 8-lead SOIC and an 8-lead MSOP. These amplifiers are rated to work over the industrial temperature range of −40°C to +85°C.
