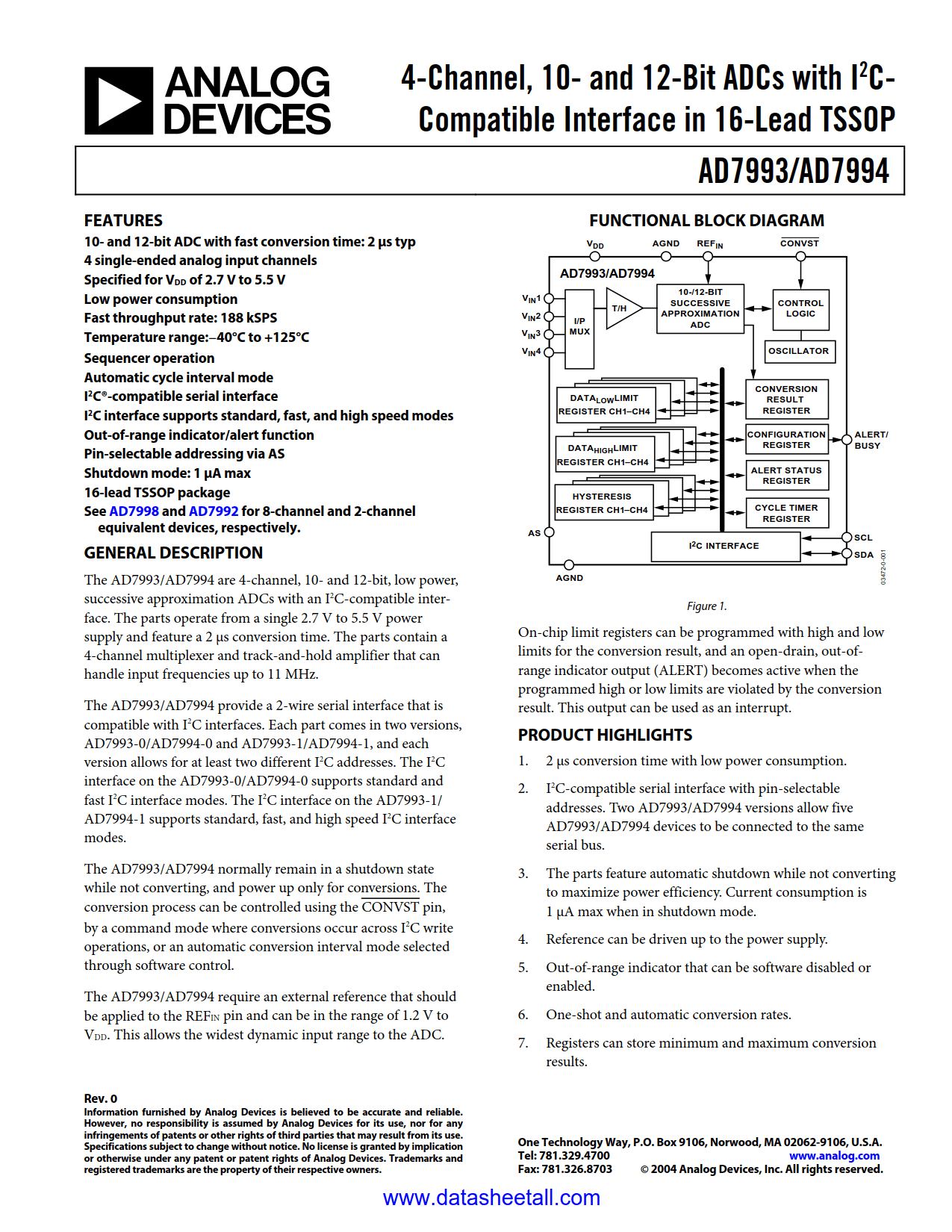

AD7993 Datasheet

• 10-Bit ADC with Fast Conversion Time: 2 µs
• Four Single-Ended Analog Input Channels
• Specified for V_DD of 2.7 V to 5.5 V
• Low Power Consumption
• Fast Throughput Rate: 188 kSPS
• Sequencer Operation
• Automatic Cycle Mode
• I²C^® Compatible Serial Interface
• I²C^® Interface supports:
  Standard, Fast, and High-Speed Modes
• Out of Range Indicator
• Pin-Selectable Addressing via AS
• Automatic Shutdown Mode: 1 µA max

The AD7993 is a 4 channel, 10-bit, high speed, low power, successive-approximation ADC respectively. The part operates from a single 2.7 V to 5.5 V power supply and features a conversion time of 2 µs. The part contains a four channel multiplexer and track/hold amplifier.

The AD7993 provides a two-wire serial interface which is compatible with I²C interfaces. The part comes in two versions, AD7993-0 and AD7993-1. Each version allows for a minimum of two different I²C addresses. The I²C interface on the AD7993-0 supports Standard and Fast I²C Interface Modes. The I²C interface on the AD7993-1 supports Standard, Fast and two High-Speed I²C Interface Modes.
