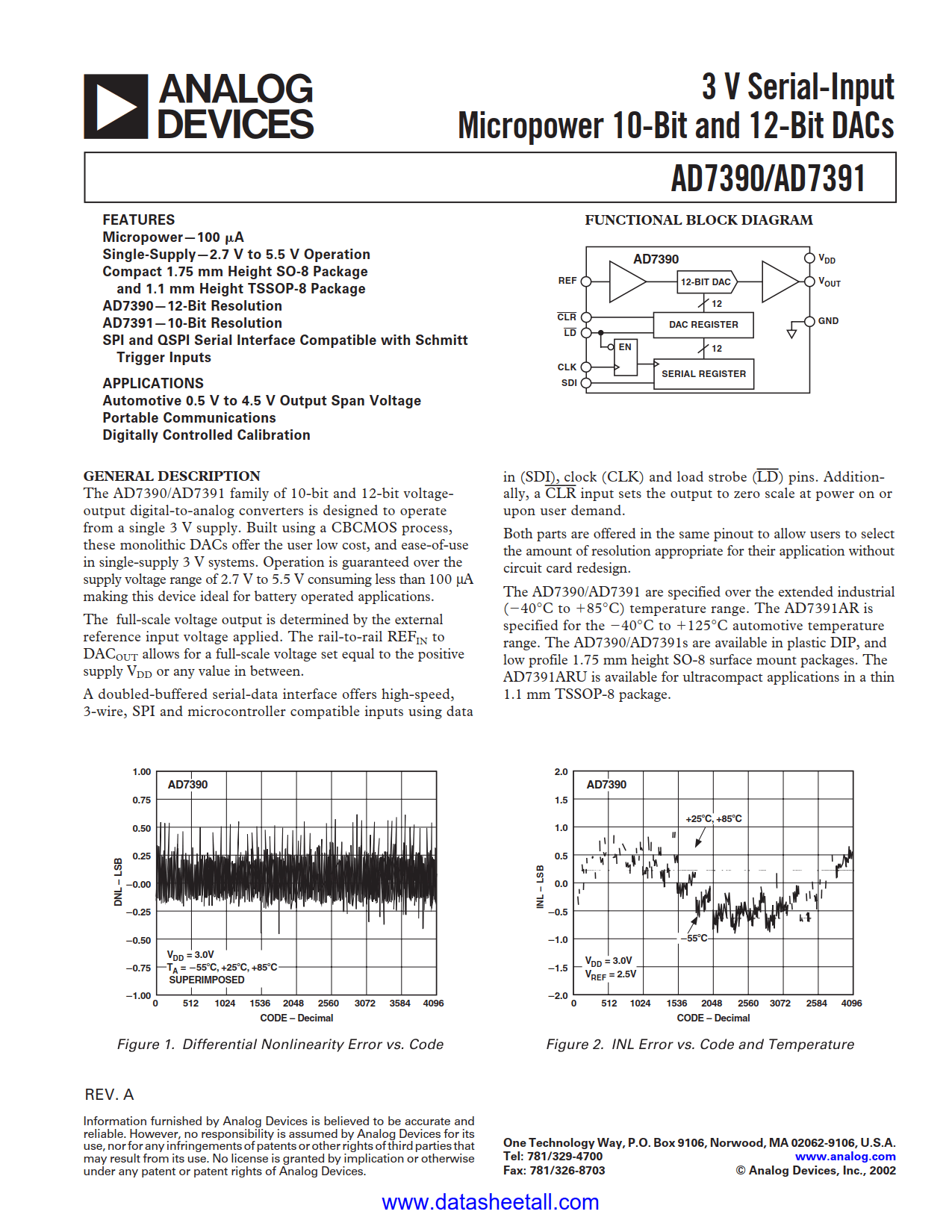

AD7390 Datasheet

• Micropower - 100 µA
• Single Supply - 2.7 V to 5.5 V Operation
• Compact 1.75 mm Height SO-8 Package and 1.1 mm Height TSSOP-8 Package
• AD7390 - 12-Bit Resolution
• SPI and QSPI Serial Interface Compatible with Schmitt Trigger Inputs

• Automotive 0.5 V to 4.5 V Output Span Voltage
• Portable Communications
• Digitally Controlled Calibration

The AD7390 of 10-bit voltage-output digital-to-analog converters are designed to operate from a single +3 volt supply. Built using a CBCMOS process, these monolithic DACs offer the user low cost, and ease-of-use in single-supply +3 V volt systems. Operation is guaranteed over the supply voltage range of +2.7 V to +5.5 V consuming less than 100 µA making this device ideal for battery operated applications.

The full-scale voltage output is determined by the external reference input voltage applied. The rail-to-rail REF_IN to DAC_OUT allows for a full-scale voltage set equal the positive supply V_DD or any value in between.

A doubled-buffered serial-data interface offers high-speed, three-wire, SPI and microcontroller compatible inputs using data in (SDI), clock (CLK) and load strobe (LD) pins. Additionally, a CLR input sets the output to zero scale at power on or upon user demand.

Both parts are offered in the same pin out to allow the user to select the amount of resolution appropriate for their application without circuit card redesign.

The AD7390 are specified over the extended industrial (-40°C to +85°C) temperature range. The AD7390 are available in plastic DIP, and low profile 1.75 mm height SO-8 surface mount packages.
