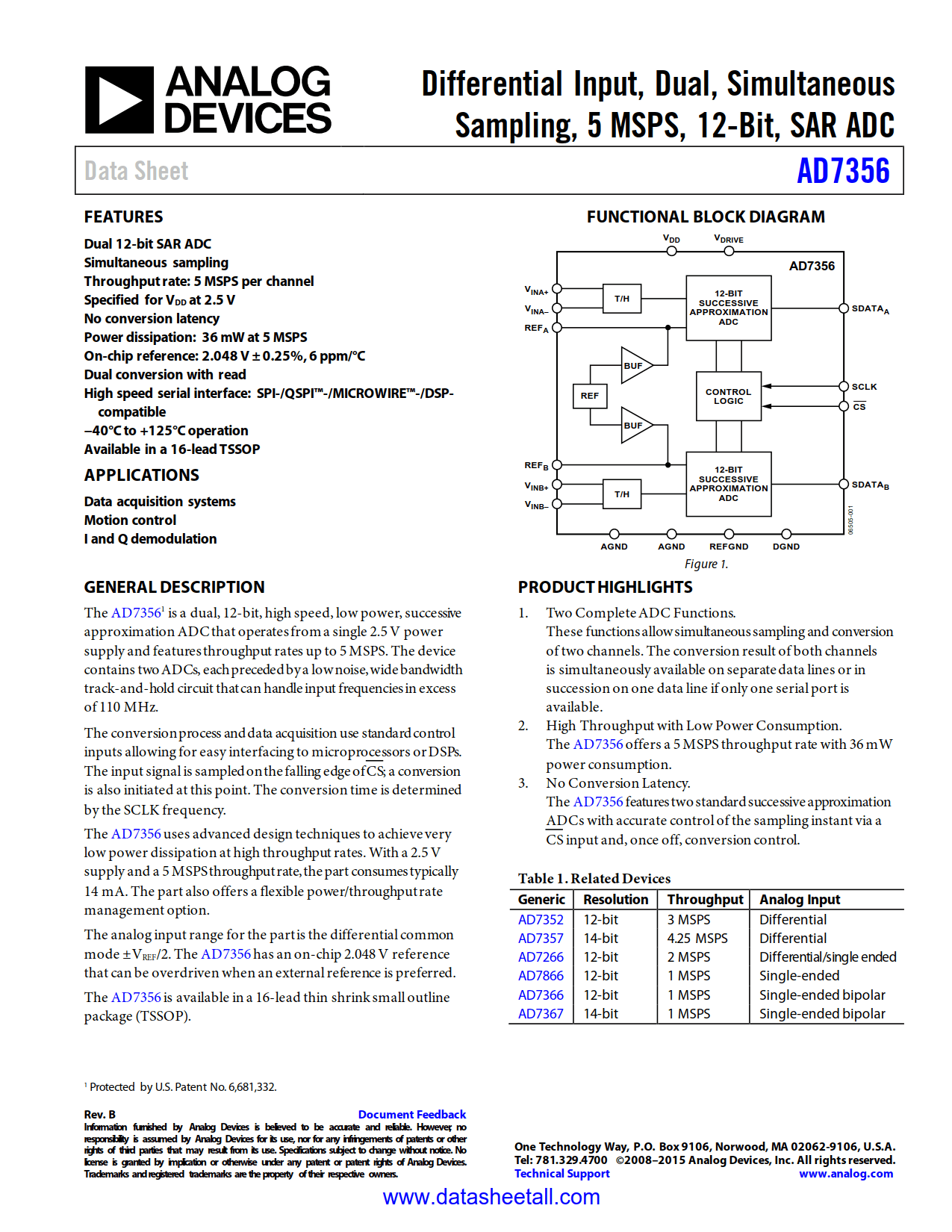

AD7356 Datasheet

• Dual 12-bit SAR ADC
• Simultaneous Sampling
• Throughput rate: 5 MSPS per channel
• Specified for V_DD at 2.5 V
• No conversion latency
• Power dissipation: 36 mW at 5 MSPS
• On-chip reference: 2.048 V ± 0.25%, 6ppm/°C
• Dual conversion with read
• High speed serial interface: SPI-/QSPI^™-/MICROWIRE^™-/DSP-compatible
• −40°C to +125°C operation
• Available in a 16-lead TSSOP

• Data acquisition systems
• Motion control
• I and Q demodulation

The AD7356 is a dual, 12-bit, high speed, low power, successive approximation ADC that operates from a single 2.5 V power supply and features throughput rates up to 5 MSPS. The part contains two ADCs, each preceded by a low noise, wide bandwidth track-and-hold circuit that can handle input frequencies in excess of 110 MHz.

The conversion process and data acquisition use standard control inputs allowing for easy interfacing to microprocessors or DSPs. The input signal is sampled on the falling edge of CS; a conversion is also initiated at this point. The conversion time is determined by the SCLK frequency.

The AD7356 uses advanced design techniques to achieve very low power dissipation at high throughput rates. With a 2.5 V supply and a 5 MSPS throughput rate, the part consumes typically 14 mA. The part also offers a flexible power/throughput rate management option.

The analog input range for the part is the differential common mode ±V_REF/2. The AD7356 has an on-chip 2.048 V reference that can be overdriven when an external reference is preferred.

The AD7356 is available in a 16-lead thin shrink small outline package (TSSOP).
