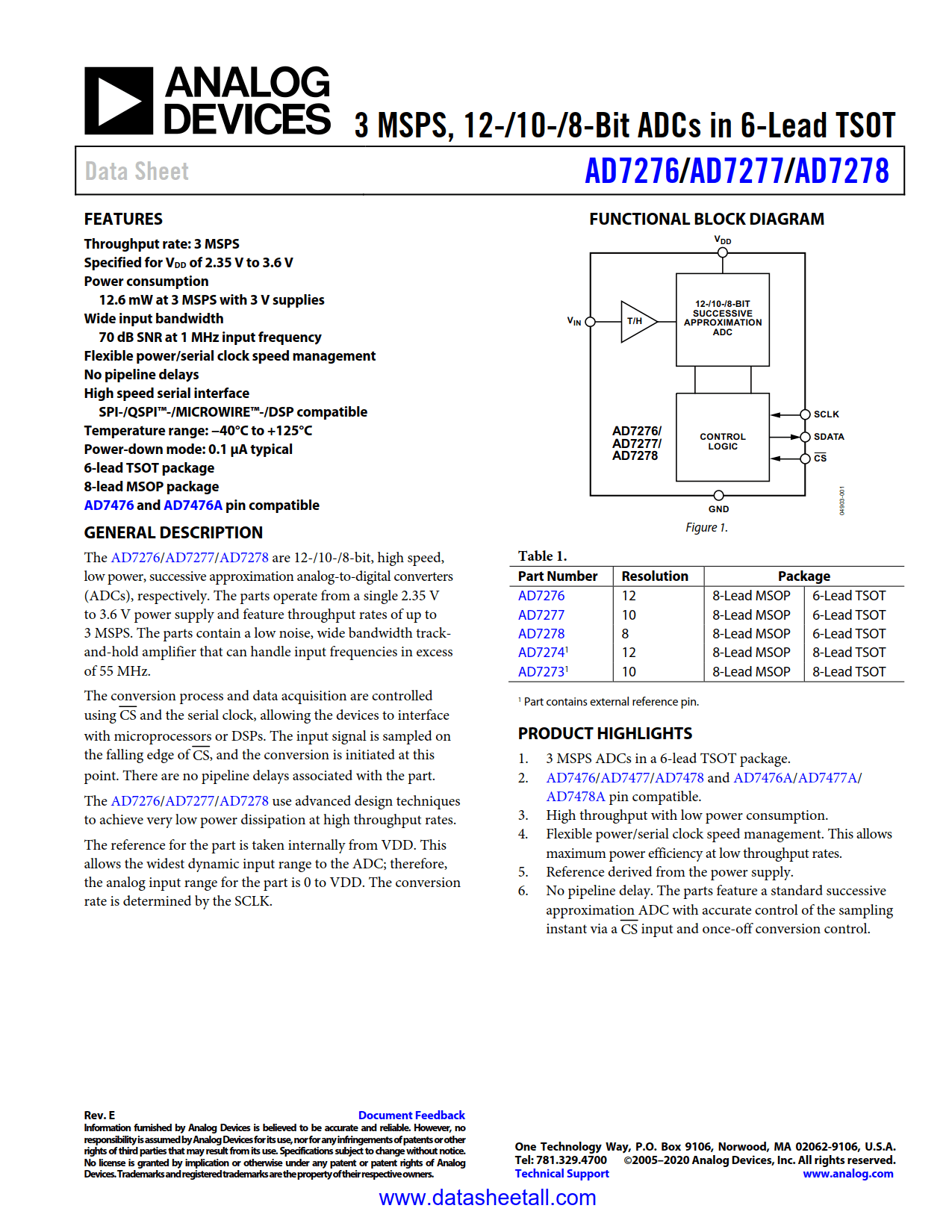

AD7278 Datasheet

• Throughput rate: 3 MSPS
• Specified for VDD of 2.35 V to 3.6 V
• Power consumption
  12.6 mW at 3 MSPS with 3 V supplies
• Wide input bandwidth
  70 dB SNR at 1 MHz input frequency
• Flexible power/serial clock speed management
• See datasheet for additional features

The AD7278 are 8-bit, high speed, low power, successive approximation analog-to-digital converters (ADCs), respectively. The parts operate from a single 2.35 V to 3.6 V power supply and feature throughput rates of up to 3 MSPS. The parts contain a low noise, wide bandwidth trackand-hold amplifier that can handle input frequencies in excess of 55 MHz.

The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is initiated at this point. There are no pipeline delays associated with the part.

The AD7278 use advanced design techniques to achieve very low power dissipation at high throughput rates. The reference for the part is taken internally from VDD. This allows the widest dynamic input range to the ADC; therefore, the analog input range for the part is 0 to VDD. The conversion rate is determined by the SCLK.

PRODUCT HIGHLIGHTS

1. 3 MSPS ADCs in a 6-lead TSOT package
2. AD7478 and AD7478A pin-compatible
3. High throughput with low power consumption
4. Flexible power/serial clock speed management. This allows maximum power efficiency at low throughput rates
5. Reference derived from the power supply
6. No pipeline delay. The parts feature a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control.
